4 044-001-C0-00, Rev. C
4.0 Site Preparation, continued
4.3 Pour-in-place Concrete Pads, continued
Pad Frame Templates
The illustration below shows the various components of the optional modular pour-
in-place pad template for a dual-cabinet application. Use template to easily and
accurately locate the open area for the AC service and TSC conduit as well as the
threaded inserts to which the cabinet is attached.

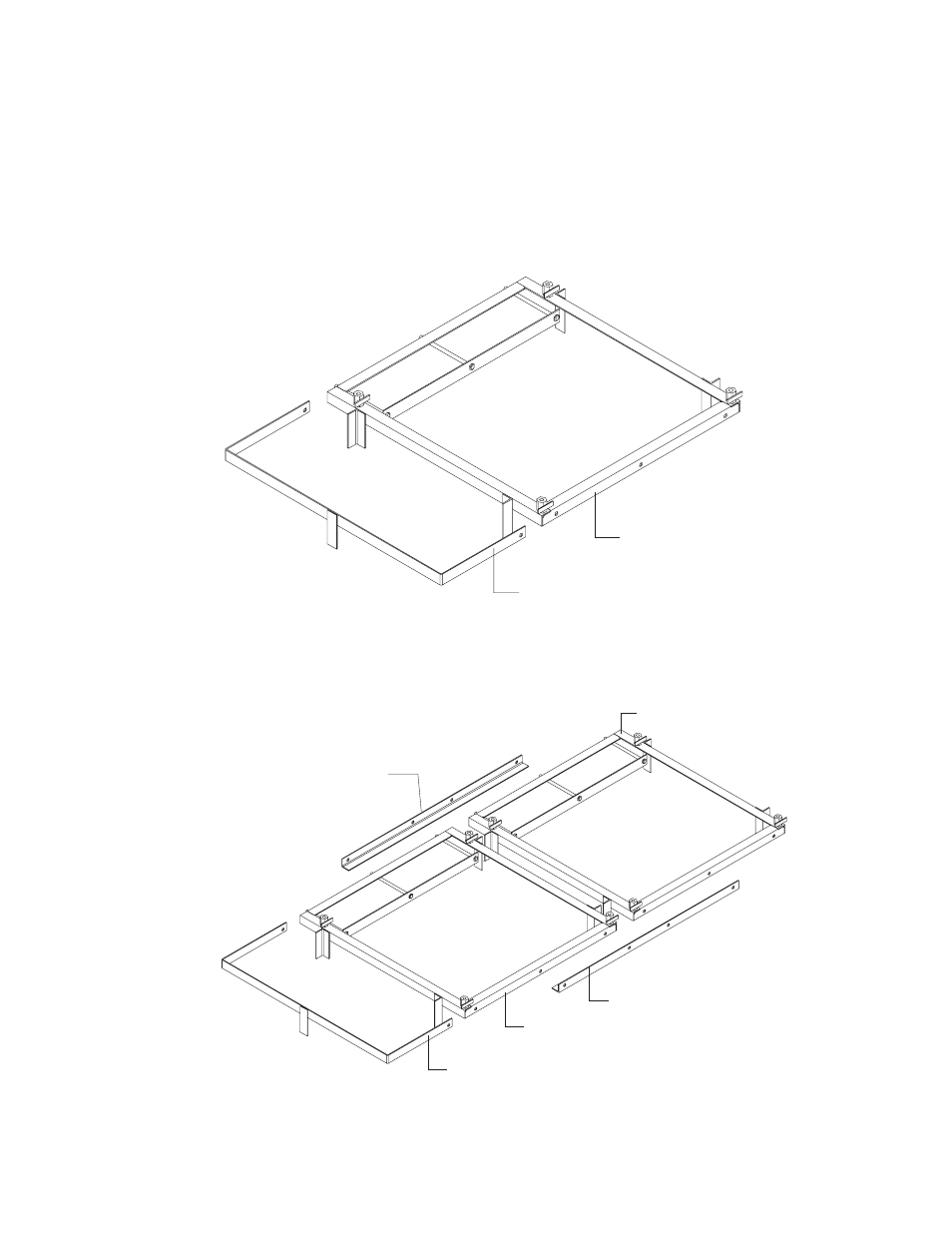

Fig. 4-7, Isometric View, Pad Frame Template, Dual MiniBay with Side Chamber
Fig. 4-6, Isometric View, Pad Frame Template, Single MiniBay with Side Chamber
Side Chamber Conduit Locator
P/N 745--20
Base Pad Frame Template
(P/N 604-09-N1)
Locator Bar for Second Pad FrameTemplate
Locator Bar for Second Pad Frame Template
P/N 745-2-20
Side Chamber Conduit Locator
P/N 745--20
Base Pad Frame Template
(P/N 604-09-N1)
Template for Second Enclosure.
