1.0 Overview and Specifications, continued

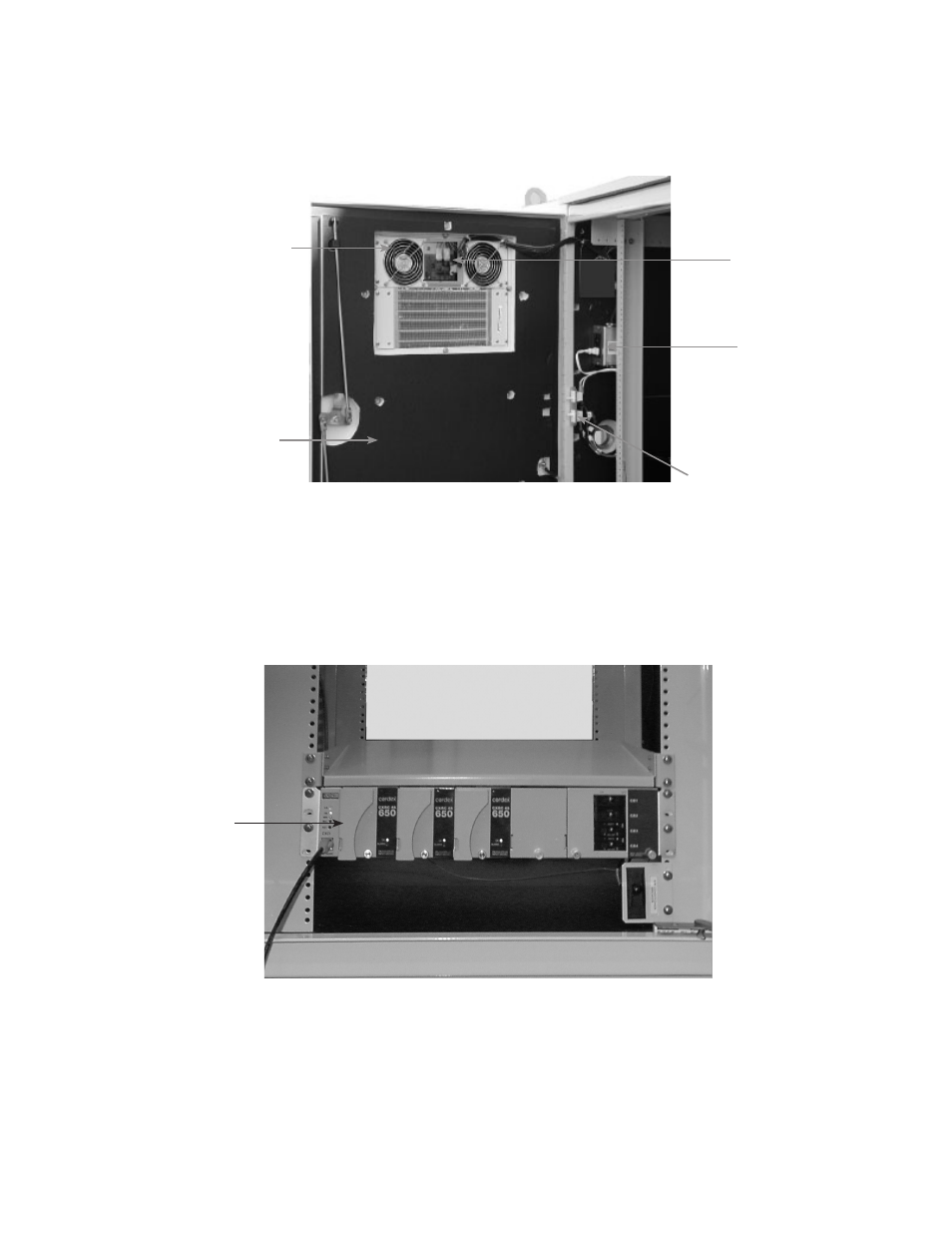

Fig. 1-5, Electronic Components (typical)
Fig. 1-4, Equipment Bay Detail
DC Air Conditioning Unit
Insulating Material
(used on front/rear
doors and interior of
cabinets equipped with
air conditioning)
Air Conditioner
Controller Board
GFCI
Convenience
Outlet
Door-activated Switches
(tamper alarm and service light)
Rectifier Shelf
(Cordex 48-650W
shown)
