Alpha Technologies Radium MiniBay - Manual (Page 42)

42 044-001-C0-00, Rev. C
The illustrations below show the overall size of the pad frame template for a single MiniBay enclosure. The
actual outer dimensions of the pad will be determined by the customer’s requirements. When placing the pad,
allow at least 6 inches of clearance for the front and rear doors to open fully.

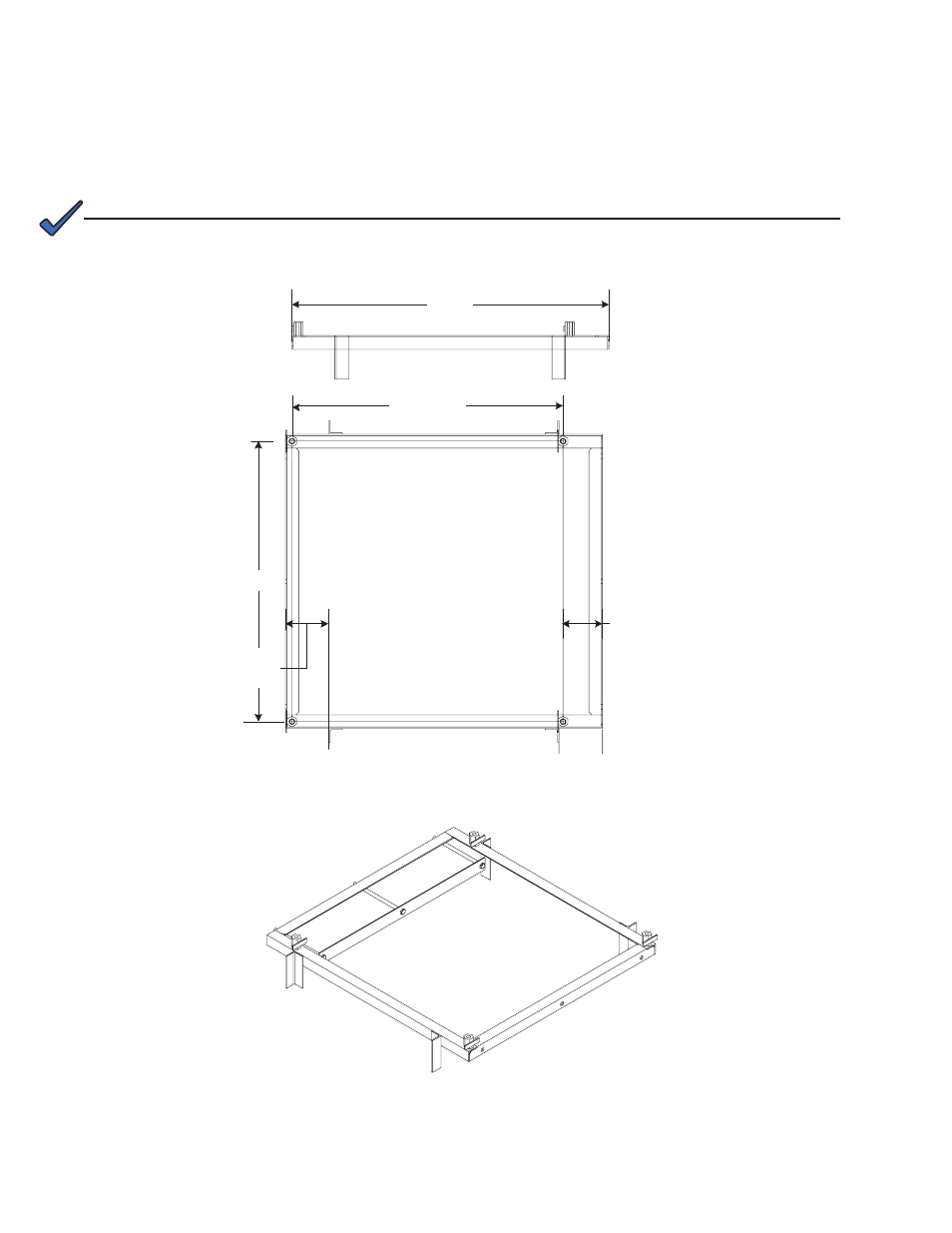

Fig. 4-4, Pad Frame Template for Single MiniBay Cabinet
Front Rear
Front
Rear
Front Rear
4.0 Site Preparation, continued
4.3 Pour-in-place Concrete Pads
Pad Frame Templates
Fig. 4-5, Isometric View, Pad Frame Template, Single MiniBay
(P/N 604-039-N1)
NOTE:
29.25"
25.00" Ref.
25.82"
4.0"
(2 places)
4.0"
(2 places)
