ABUS FU8211 Secvest 2WAY Wireless Universal Module User Manual
Page 68
60

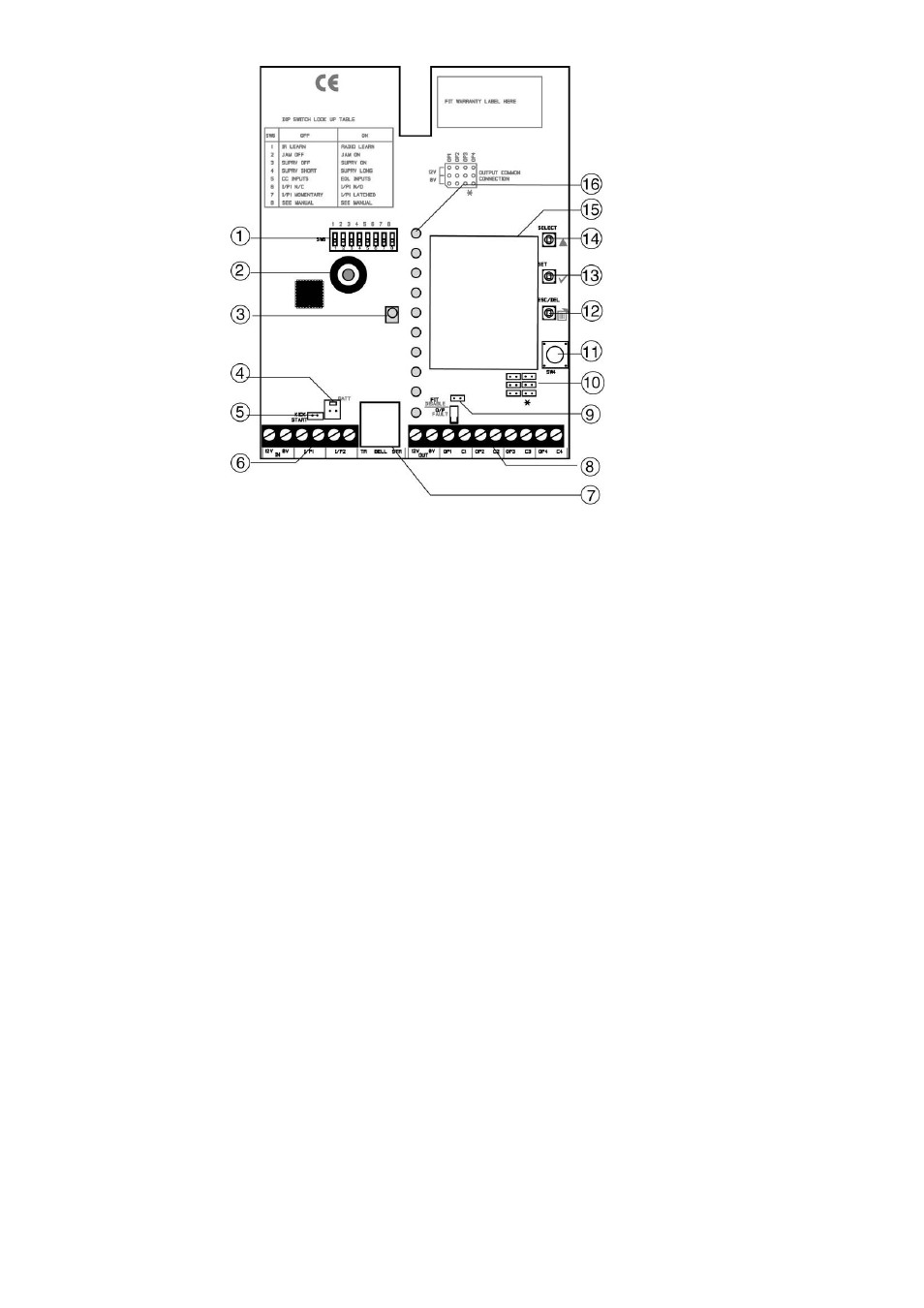

4.3 Platine
1. Interrupteur DIP
2. Emetteur de signaux Piezo
3. Récepteur infrarouge à LED
4. Connecteur de batterie
5. Connecteur du jack enfichable « Kick Start »
6. Prise d’alimentation et entrée de zones
7. Connecteur RJ12 de la sirène externe
8. Sortie d’alimentation et sorties de relais
9. Connecteur du jack enfichable « Fit Disable »
10. Connecteurs du jack enfichable destinés à la configuration
d’origine
11. Contact
antisabotage
12. Touche ESC/DEL
13. Touche SET
14. Touche SELECT
15. Unité emetteur/
récepteur
16. Affichages à LED (canaux détecteurs)
