ABUS FU8211 Secvest 2WAY Wireless Universal Module User Manual
Page 100
88

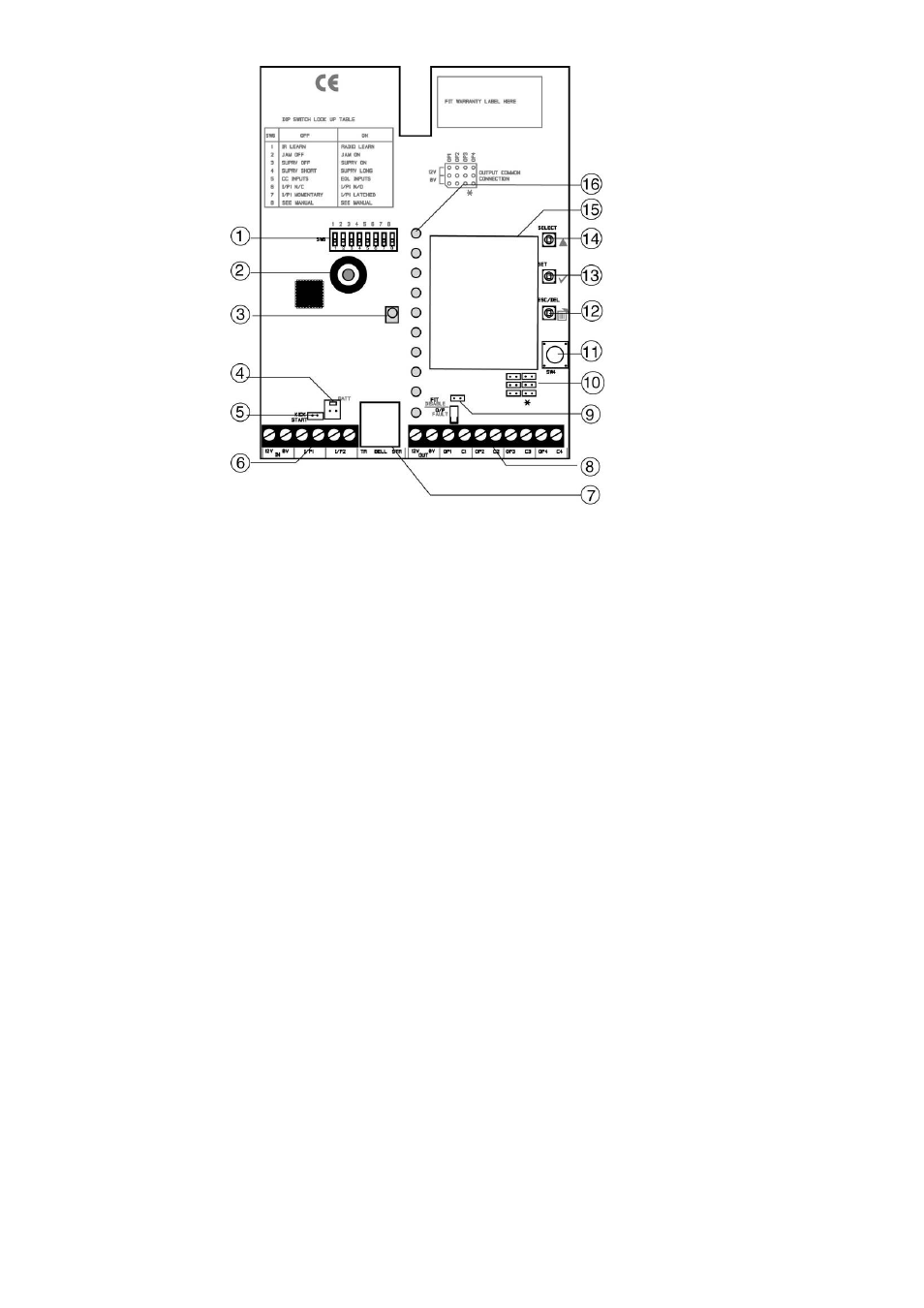

4.3 Scheda
1. DIP switch
2. Trasmettitore di segnale piezoelettrico
3. IR LED ricevitore
4. Attacco accumulatore
5. Avviamento Kick attacco a ponticello
6. Allacciamento tensione e ingressi zone
7. Connettore RJ12 per sirena esterna
8. Uscita tensione e uscite relè
9. Fit Disable attacco a ponticello
10. Attacchi a ponticello per configurazione uscite
11. Contatto antisabotaggio
12. Tasto ESC/DEL
13. Tasto SET
14. Tasto SELECT
15. Unità trasmettitore/ricevitore
16. Indicatori LED (canali del rilevatore)
