ABUS FU8211 Secvest 2WAY Wireless Universal Module User Manual
Page 6
6

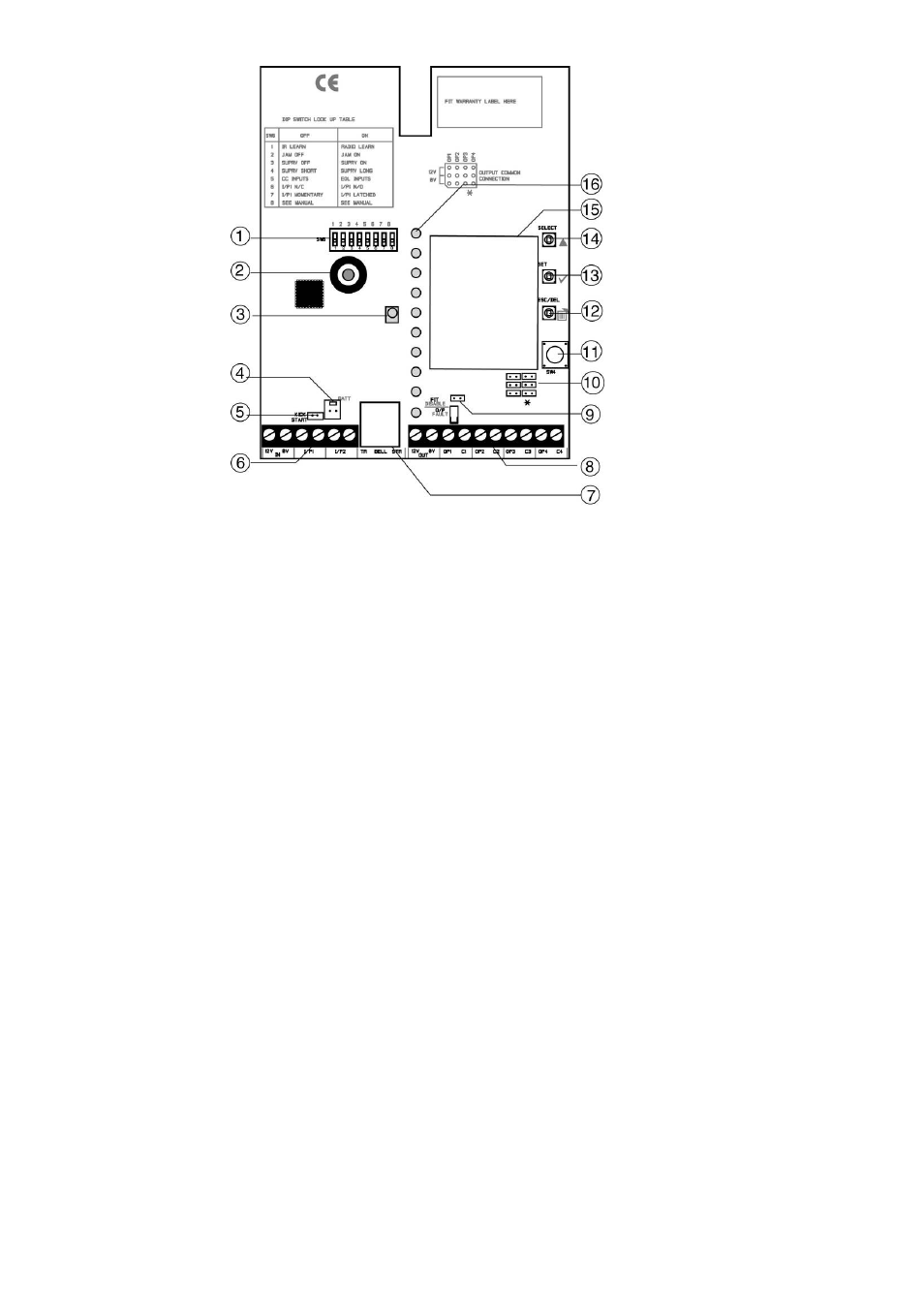

4.3 Platine
1. DIP Schalter
2. Piezosignalgeber
3. IR LED Empfänger
4. Akkuanschluß
5. Kick Start Steckbrückenanschluß
6. Spannungsanschluß und Zoneneingänge
7. RJ12 Stecker für externe Sirene
8. Spannungsausgang und Relaisausgänge
9. Fit Disable Steckbrückenanschluss
10. Steckbrückenanschlüsse für Ausgangskonfiguration
11. Sabotagekontakt
12. ESC/DEL Taste
13. SET Taste
14. SELECT Taste
15. Sender/Empfängereinheit
16. LED Anzeigen (Melderkanäle)
