ABUS FU8211 Secvest 2WAY Wireless Universal Module User Manual
Page 129
117

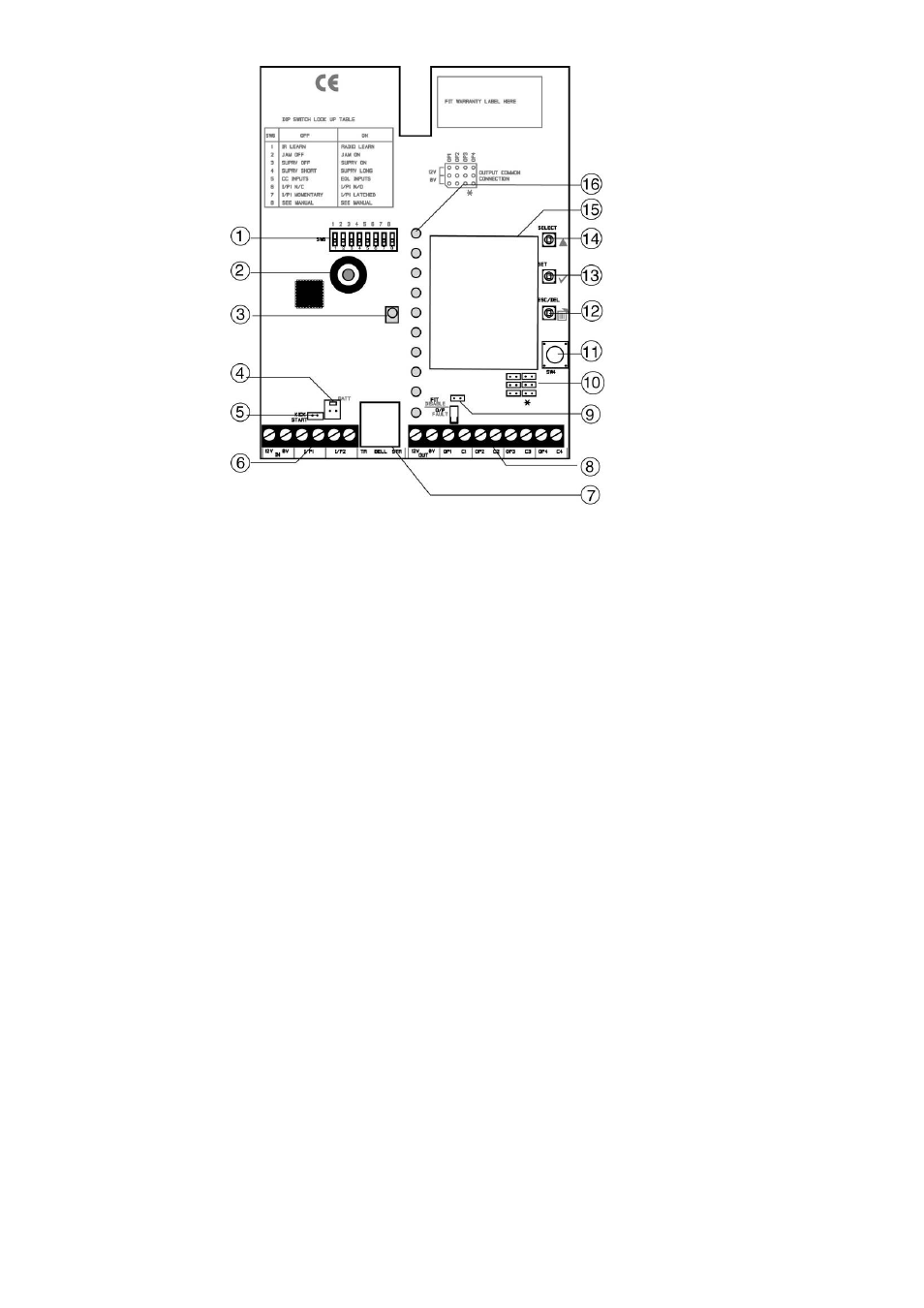

4.3 Printplaat
1. DIP-schakelaar
2. Piëzosignaalgever
3. IR LED ontvanger
4. Accuaansluiting
5. Kick start geleiderbrugaansluiting
6. Spanningsaansluiting en zone-ingangen
7. RJ12 stekker voor externe sirene
8. Spanningsuitgang en relaisuitgangen
9. Fit Disable geleiderbrugaansluiting
10. Geleiderbrugaan-sluitingen voor uitgangsconfiguratie
11. Sabotagecontact
12. ESC/DEL-toets
13. SET-toets
14. SELECT-toets
15. Zender/ontvanger-eenheid
16. LED-weergaven (melderkanalen)
