Płytka drukowana – ABUS FU8211 Secvest 2WAY Wireless Universal Module User Manual
Page 192
172
4.3

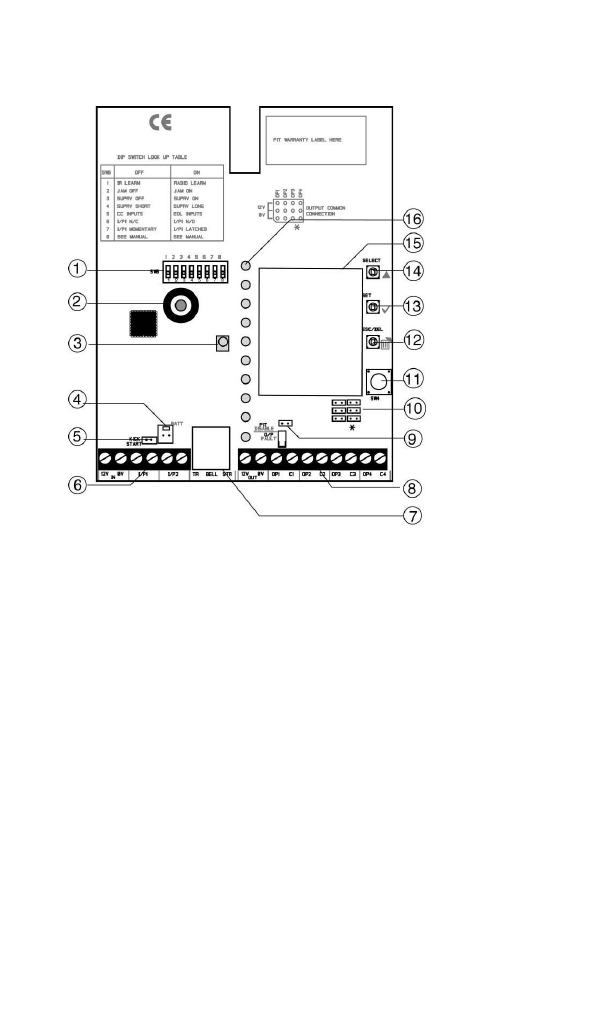

Płytka drukowana
1. Przełączniki DIP
2. Sygnalizator piezoelektryczny
3. Odbiornik IR LED
4. Złącze do akumulatora
5. Złącze do zworki Kick Start
6. Złącze napięciowe i wejścia stref
7.
Wtyczka RJ12 do syreny zewnętrznej
8. Wyjście napięciowe i wyjścia przekaźnikowe
9. Złącze do zworki Fit Disable
10. Złącze do zworki do konfigurowania wyjść
11. Zestyk sabotażowy
12. Przycisk ESC/DEL
13. Przycisk SET
14. Przycisk SELECT
15. Zespół nadajnik/odbiornik
16. Wskaźniki LED (kanały czujek)
