Franklin Fueling Systems TS 550 evo Fuel Management System Installation - Manual (Page 9)

9
Communication Ports
The TS-550 evo console has several communication ports that can be used to communicate with various devices. The
communication ports can be used for a wide variety of applications: to connect the console to a computer network, to print
reports on an external printer or to fax reports via the optional internal fax/modem. Please refer to the table below for a
more complete listing of the ports and their associated devices.
Port Connector Type Devices Module
RS-232 Comm 1 DB9 Female Local PC (preferred in Comm 1) Controller
RS-232 Comm 2 DB9 Male
POS Terminal, External Modem, External
ATG to TS-EMS or Local PC with a null-
modem cable
Power Supply
Ethernet RJ-45 Local Network Controller
USB 1 Type A External Hewlett-Packard Printer Controller
USB 2 Type A External Hewlett-Packard Printer Controller
Fax/Modem RJ-11
Phone Line (requires an optional fax/
modem)
Controller
RS-485/TPI
4 Pin Pluggable Terminal Block, 0.2"
(5.08 mm) LS
TS-DIM (external) Power Supply
Bus Extension
(CAN)
3 Pin Pluggable Terminal Block,
0.15" (3.81 mm) LS
TS-EXPC Power Supply
RS-422/232 & Current Loop DB9 Male Dispenser Distribution Box (Dbox)
Dispenser
Interface
LON
2 Pin Pluggable Terminal Block, 0.2"
(5.08 mm) LS
IFSF Network LON Interface
COMM 2 BUS EXT
CAN
H
CAN
L
GN
D
TPI RS-485
COMM 1 USB ETHERNET HORN FAX/MODEM
NON-INTRINSICALL
Y
SAFE WIRING ON
LY
!
FOR USE ON
LY
WITH EQUIPMENT
SPECIFIE
D
IN
THE INST
ALLA
TION INSTRUCTION
S
A B GN
D
+ —

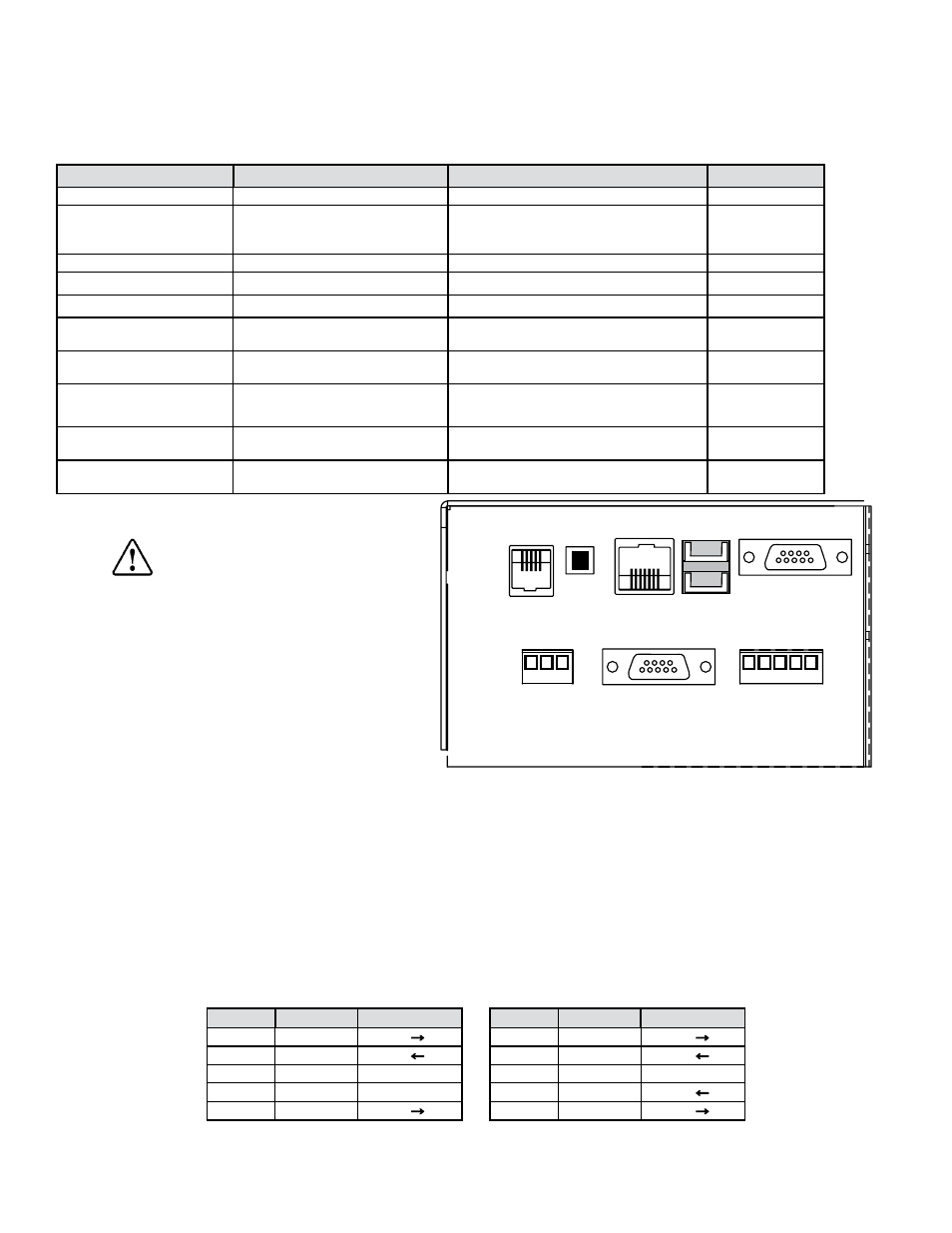

Figure 2: View of Communication Ports
Note: The onboard TS-DIMIB (Dispenser Interface Module) and the TS-LON (IFSF protocol Interface Module) are optional
daughterboards that attach to the Power Supply Module. Only one daughterboard can be used in a system.
Note: Either the Current Loop or RS-422/232 connector will be used to connect to a dispenser distribution box (Dbox)
depending on the manufacturer’s settings.
RS-232 Communication Connectors
Two connectors for RS-232 interfaces are provided on the bottom of the TS-550 evo console. The pin designations for the
RS-232 connectors are as follows:
Console RS-232 Comm Port 1
DB9 Connector, Female, DCE
Console RS-232 Comm Port 2
DB9 Connector, Male, DTE
Pin No. Function Input/Output Pin No. Function Input/Output
2 TXA O → 1 DCD O →
3 RXA I ← 2 RXA I ←
5 Signal GND 3 TXA
7 4 DTR I ←
8 CTS O → 5 Signal GND O →
Note: Follow the communications setup instructions in the TS-550evo Programming Guide.
Peripheral equipment connected
to the T5 series console’s
communication port must:
1. Be listed by UL or another third-
party Nationally Recognized
test laboratory when required
by the authority having
jurisdiction, and:
2. Not be installed over a
hazardous location (unless so
rated)
Caution
