Relay Module (RLY)
The RLY is a non-intrinsically safe module that has 8
identical Form C output channels. Each channel has a fuse
and three terminals. Each channel can be configured as
NO or NC with the power off by wiring to the appropriate
terminals. A TS-550 evo console can accommodate up to
24 outputs (8 outputs on up to 3 modules) as space allows.
The diagrams below illustrate two examples of positive
shutdown upon alarm conditions.
Relay Module Specifications
Number of Channels: 8 Form C
Contact Rating: 2A @ 250 VAC
2A @ 30 VDC
Relay Module
RUN
ERR
NO8
C8
NC8
NO7
C7
NC7
NO6
C6
NC6
NO5
C5
NC5
NO4
C4
NC4
NO3
C3
NC3
NO2
C2
NC2
NO1
C1
NC1
Relay Module disables the
hook signal to the pump
upon alarm conditions.
110/240 VAC
Electrical Panel
Line Neutral
Switching Current 2A Max.
Switching Power 1500 VA Max.

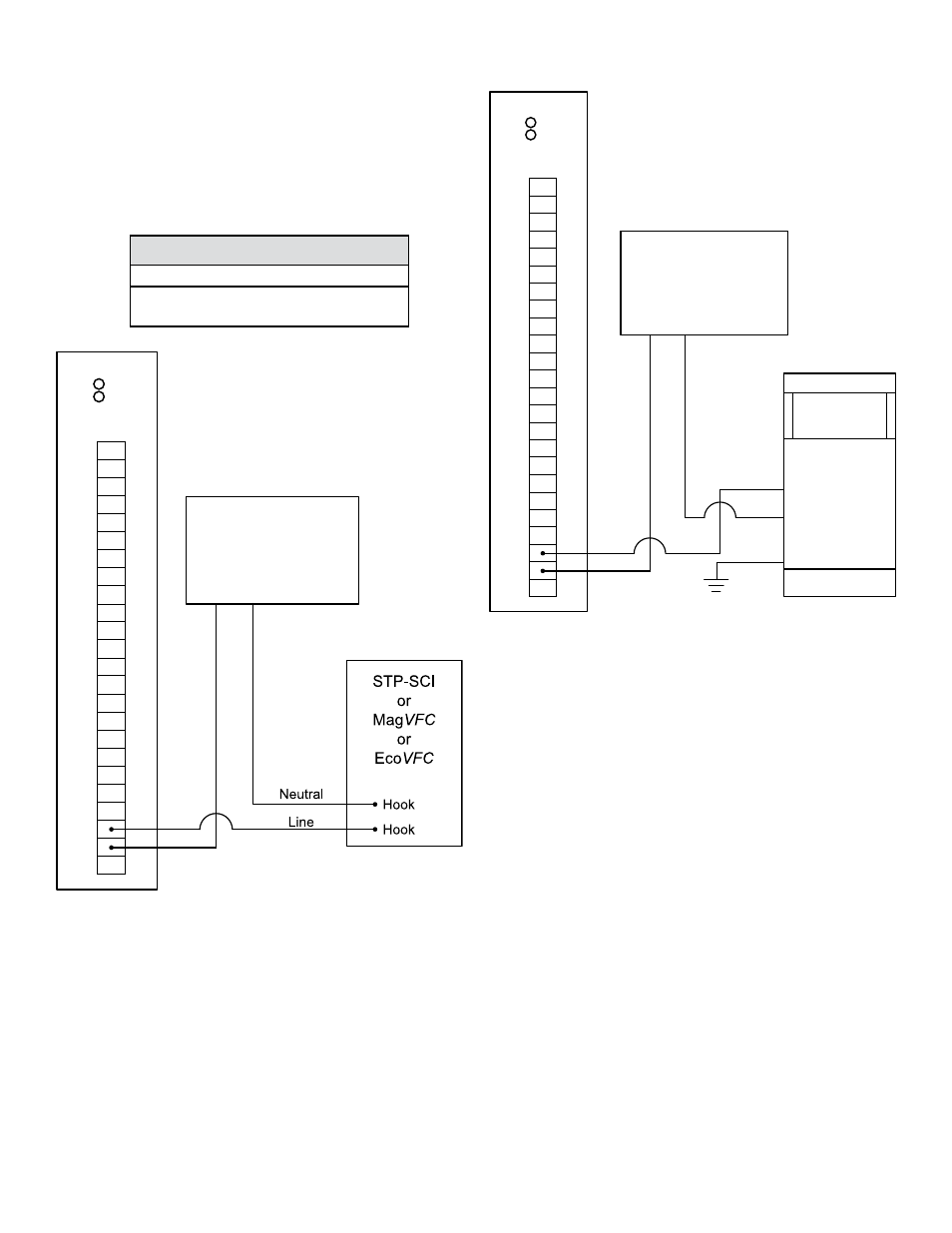

Figure 10: Positive Submersible Control Box Shutdown
Note: A valid dispenser hook signal coming from the AC
Input Module (shown in Figure 12) is required for
these diagrams to function as shown.
Relay Module
RUN
ERR
NO8
C8
NC8
NO7
C7
NC7
NO6
C6
NC6
NO5
C5
NC5
NO4
C4
NC4
NO3
C3
NC3
NO2
C2
NC2
NO1
C1
NC1
DISPENSER 1
Relay Module disables power to the
dispenser upon alarm conditions.
110/240 VAC
Electrical Panel
Line Neutral
Line
Neutral
GND
Switching Current 2A Max.
Switching Power 1500 VA Max.
Figure 11: Positive Dispenser Shutdown
Note: If a dispenser’s current rating is between 2 and 10
amps, use a 10 amp relay module. If the current
rating is higher than 10 Amps, use an appropriate
extension relay.
