3

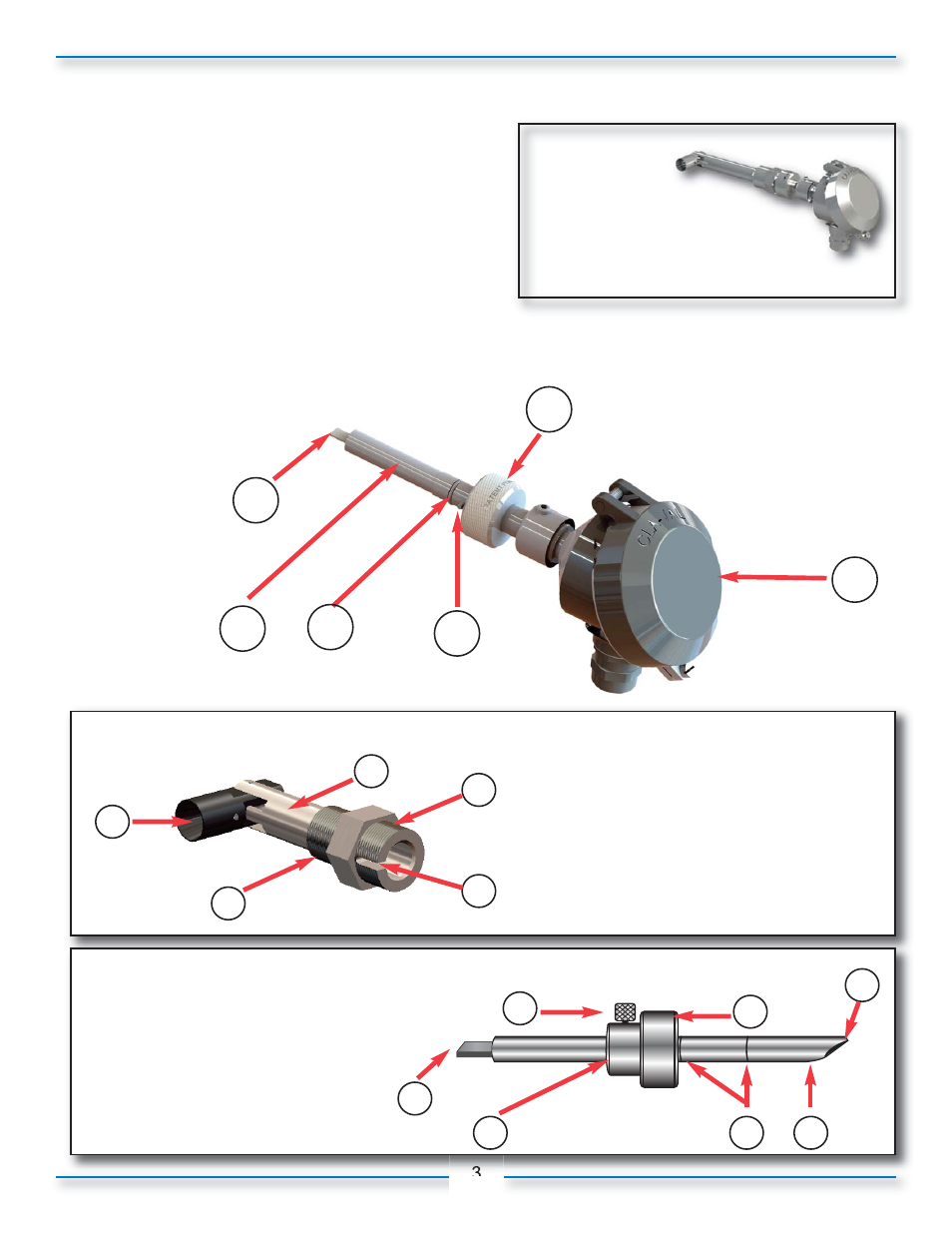

Figure 1-4: e-FlowMeter
X144 e-FlowMeter Parts
1) IP68 Submersible Electronics Housing 2) Knurled Lock 3) Centering Pin
4) O-Ring 5) Shaft 6) Sensor
1
2
6
5
3
Swivel Threaded Insert Parts
1) Straight Threads
2) Centering Groove
3) Tapered Threads
4) Sleeve
5) Swivel Measurement Cylinder
SECTION 1: System Components and How They Work (continued)
1.2 – Supplied Parts List
X144 Equipment - Supplied by Cla-Val
1) e-FlowMeter with Swivel Threaded Insert
(Figures 1-4 and 1-5)
2) Insertion Tool (Figure 1-6)
3) 20 feet of Electrical Cable (See Section 2.5)
Figure 1-5: e-FlowMeter Swivel Threaded Insert Detail
X144 e-FlowMeter
Swivel
Threaded Insert
4
1
3
4
2
5
Figure 1-6: Insertion Tool Kit
Insertion Tool Kit Parts
1) Bevel
2) Tool
3) Score Marks
4) Thumb Set Screw
5) Tool Lock
6) Flat Tipped End
7) Locking Collar
1
4
2 5 3
6
7
