SECTION 5: Specifications (continued)
Dimensional Data

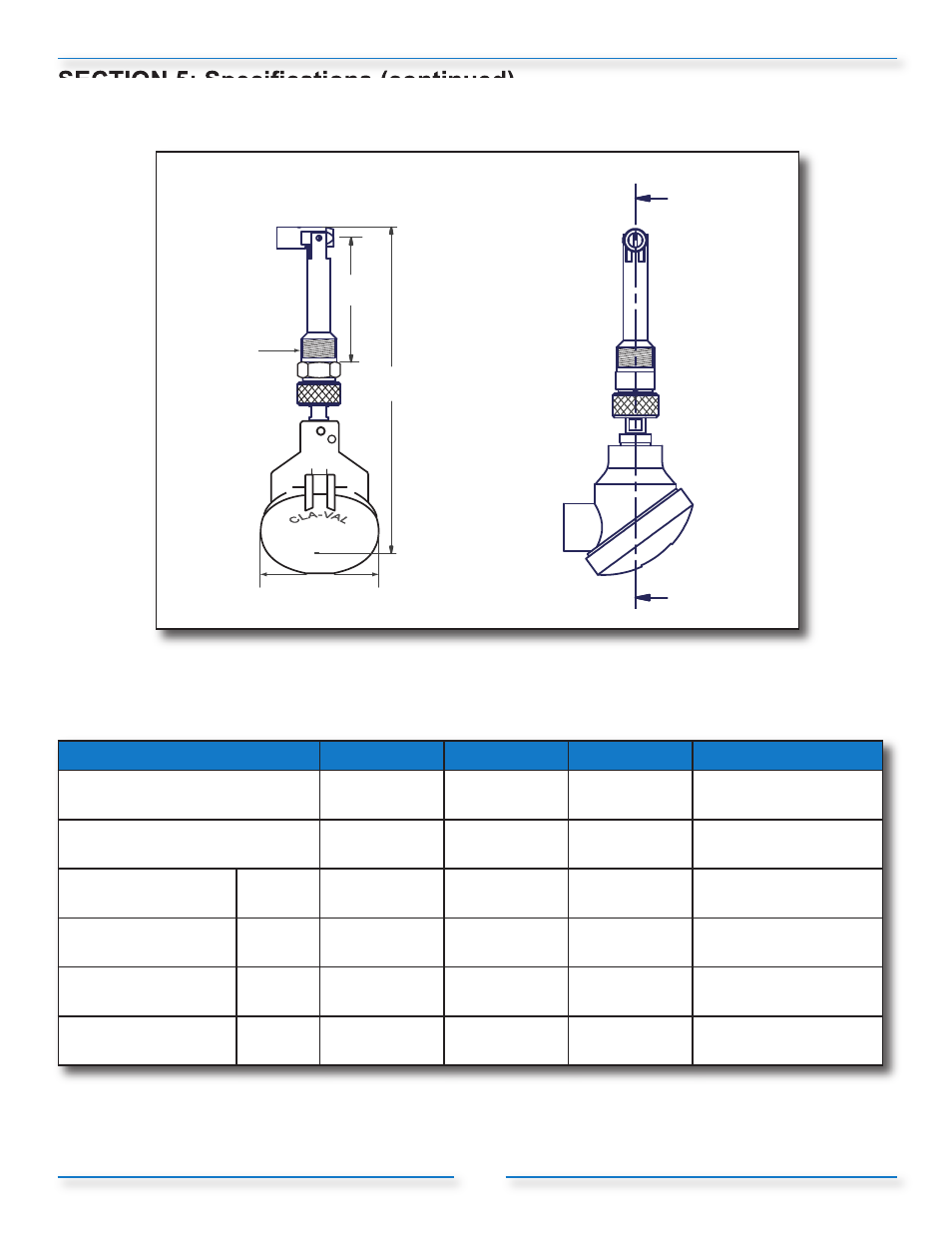

Figure 5-1: X144 e-FlowMeter
Table 4: X144 e-FlowMeter Dimensions
20
X144 Sizes 1 2 3 4
Full Port Valve Sizes 2*, 2-1/2, 3 4, 6 8, 10 12, 14, 16 *
Reduced Port Valve Sizes 4 6, 8 10, 12 14, 16, 18, 20, 24 *
Overall Length
(in inches)
A 7.9 8.7 12.4 23.2
Insertion Length
(in inches)
B 2.3 2.8 6.8 17.6
Pipe Thread
(NPT)
C 1/2" 3/4" 1" 1"
Overall With
(in inches)
D 3.25 3.25 3.25 3.25
A
B
C
D
*2" X144 e-FlowMeter may be installed on new valves only
Note:
Consult Factory for Angle Pattern Applications
