Section 2: Installation of the X144 e-FlowMeter (continued)
2.4 - Step-by-Step Instructions Mechanical Installation

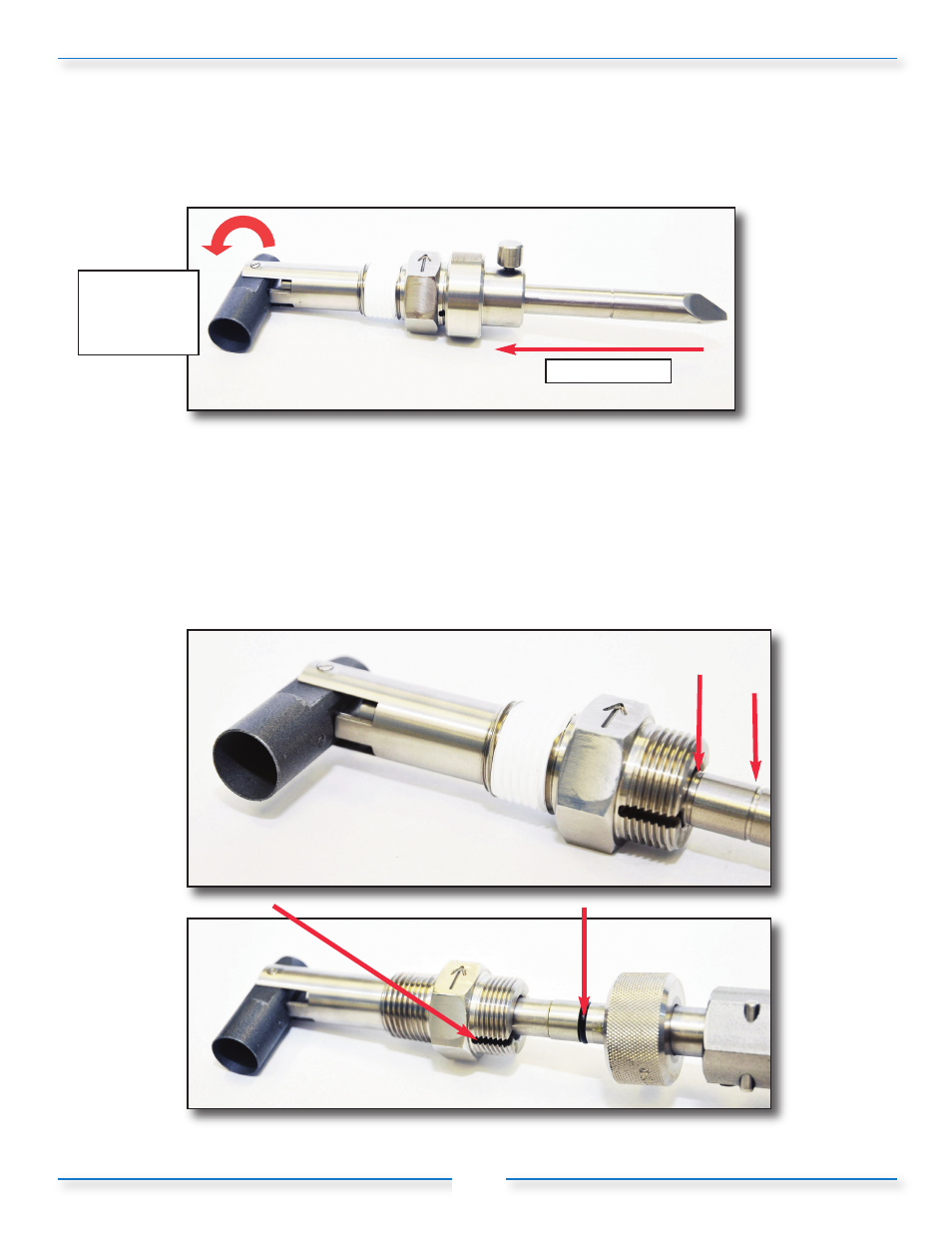

8) Once the measurement cylinder rotates, remove the tool lock then use the score marks on
the Insertion Tool to verify measurement cylinder is locked in 90° orientation, ensure that
the tool seated to appropriate ½” or ¾” score marks, (Figure 2-9).
9) Insert sensor into threaded pipe insert. Ensure that the centering pin is aligned
with the centering groove on the threaded insert, (Figure 2-10). Push firmly to
seat the o-ring.
10
Figure 2-9
Figure 2-10
pressure
Measurement
Cylinder swivels
to proper
position
Figure 2-8
replace this
photo with one
showing pin &
groove
