2-19 USP 405 • Installation and Operation
Advanced
Configuration
Horz Phase Sub
128 016
NEXT MENU
Genlock
NEXT
Horizontal phase
• 0 thru 255 Subcarrier phase
• 0 thru 255
Exit menu
From this menu, press the Next button to return to the Default menu cycle, or
press the Menu button to return to the Input Configuration menu.
Genlock
MENU
Exit
MENU
Default
Cycle
NEXT
Input
Configuration
Image Adjustments
Picture adjustments apply to scaled video output only; RGB signals are passed
through without adjustments.
Color, tint, brightness, contrast, detail, sizing, zoom, centering
To adjust an image for centering, sizing, brightness, contrast, color, tint, zoom, or

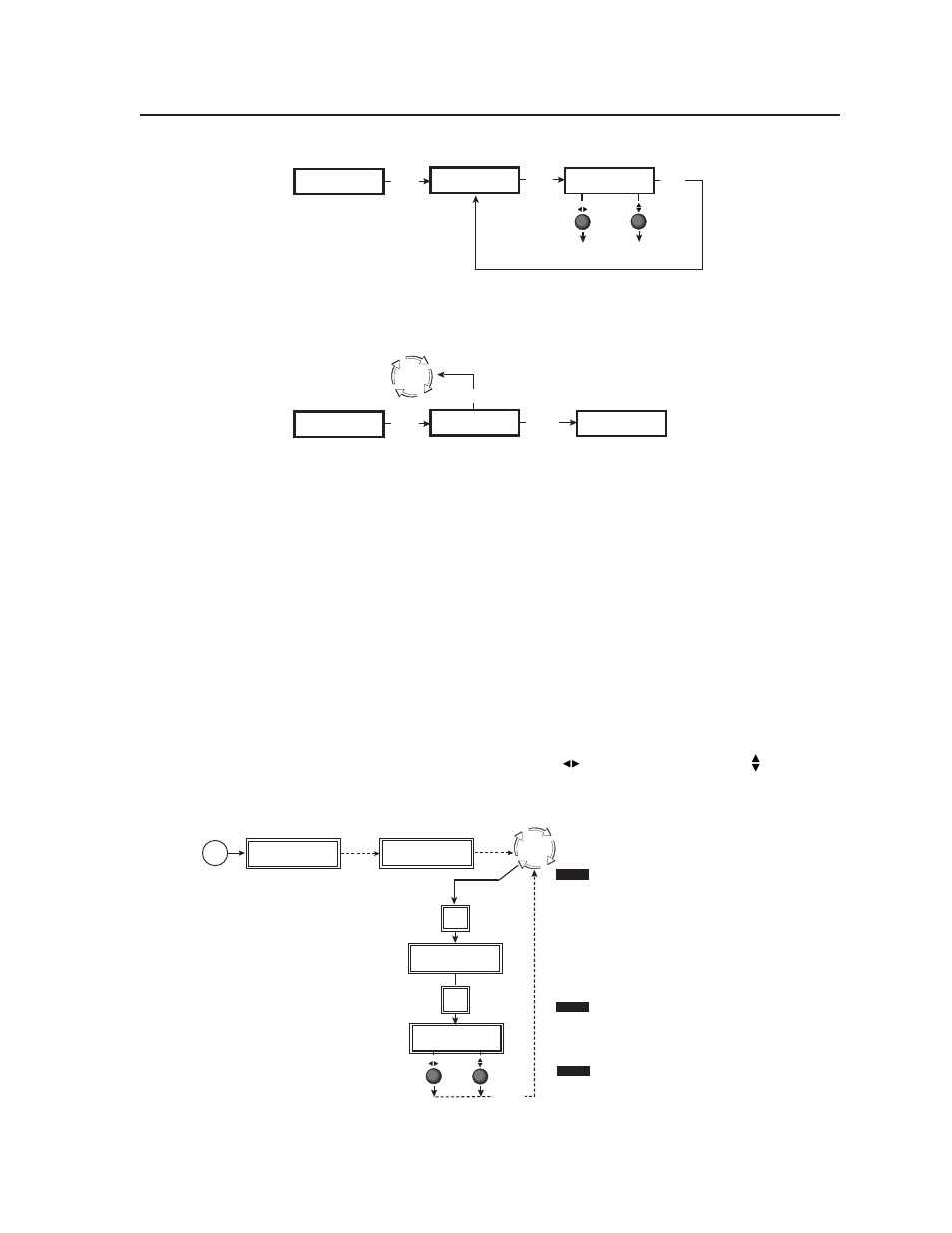

detail, follow the steps below. The illustration below shows the process of
making of color adjustments to the image. The other picture adjustments follow a
similar procedure.
1. Press the input selection button of the input you wish to adjust.
2. Press the appropriate picture adjustment button for centering (Center),
sizing (Size), brightness/contrast (Brt/Cont), color/tint (Col/Tnt), zoom, or
detail. The LCD display shows the name of the adjustment and the value of
the current setting.
3. Rotate the horizontal Adjust knob ( ) or vertical Adjust knob ( ) to select a
level from the following adjustment ranges:
Color Tint
101 114
Input
selection
button
Input #3
Composite
10 sec.
timeout
NOTE The horizontal Adjust knob and the vertical Adjust knob
are used to adjust the image settings on the left and
right sides of the LCD screen, respectively.
Default
Cycle
Select an Input button
Select a Picture Adjustment button COL/TNT
Power
on
Extron
USP 405 2 sec.
60-369-0x
Version x.xx 2 sec.
NOTE If the Test Pattern submenu in the Advanced Configuration
menu has been set to any pattern other than "Off", "Crop", or
a "Film aspect" crop pattern, the picture control adjustments
will be disabled ("Not Available").
NOTE With an input signal present, the following picture
adjustment(s) are "Not Available" for the
respective inputs with exceptions in ():
Input 1 : color and tint (not available anytime)
Input 2 : tint (but available only if S-video or composite is
selected and NTSC signal is input)
Input 3
: tint (but available only if an NTSC signal is input)
Input 4 : tint (but available only if an NTSC signal is input)
Input 5 : color, tint, and detail
