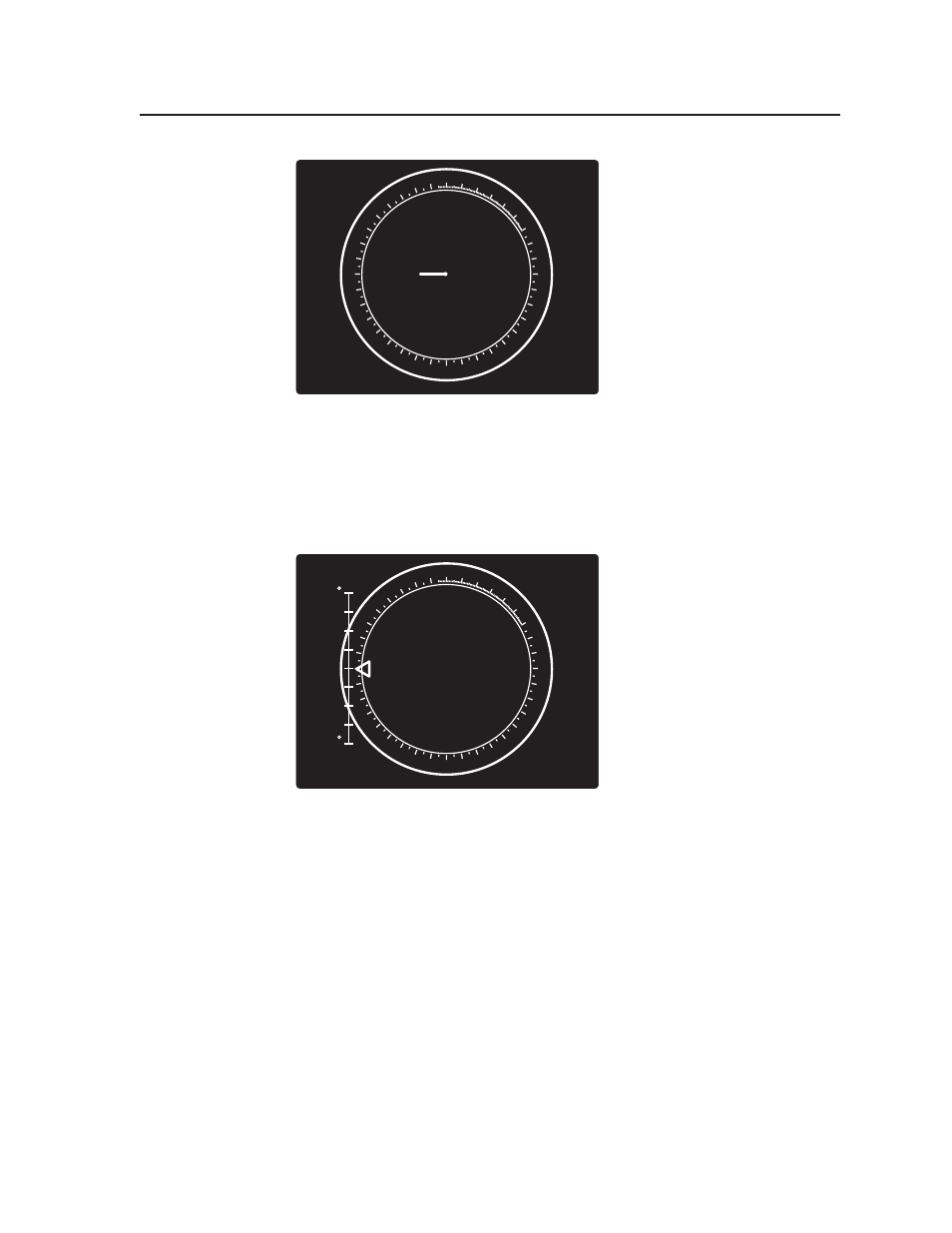

Vectorscope screen during horizontal
phase adjustment

The following diagram shows an example of a view of a vectorscope during
adjustment of the color subcarrier phase (SC/H). The subcarrier phase should be
aligned to 0º (indicated in the figure by the triangle).

0

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

160

170

180

190

200

210

220

230

240

250

260

270

280

290

300

310

320

330

340

350

+40

-40

A1

A2

A3

B1

B2

B3

Vectorscope screen during color subcarrier
phase adjustment

Optimizing the System

For optimal performance, follow the steps in this section in order when setting
up the USP 405 and its input and output devices.

Setting up a DVD source

To get the best results when using a DVD as a video source, Extron recommends
that the DVD player itself be set up to output an aspect ratio of 16:9 and not 4:3.
Because all DVDs are mastered as 16:9, having them set up for anything else will
cause the player to internally scale and compress the signal. This scaling/
compression by the DVD player defeats the advantage of having 3-2 pulldown
detection in the USP 405.

To change the output aspect ratio of most DVD players,

1.

Enter the DVD player’s Setup or Action menu while the disc is stopped.

2.

Select a 16:9 aspect ratio.
