Audio Submenu

This submenu allows you to configure the audio that is processed through the DSC. (The

SDI

Audio

Decode

option is available only on the DSC 3G-HD A

Audio

submenu.)

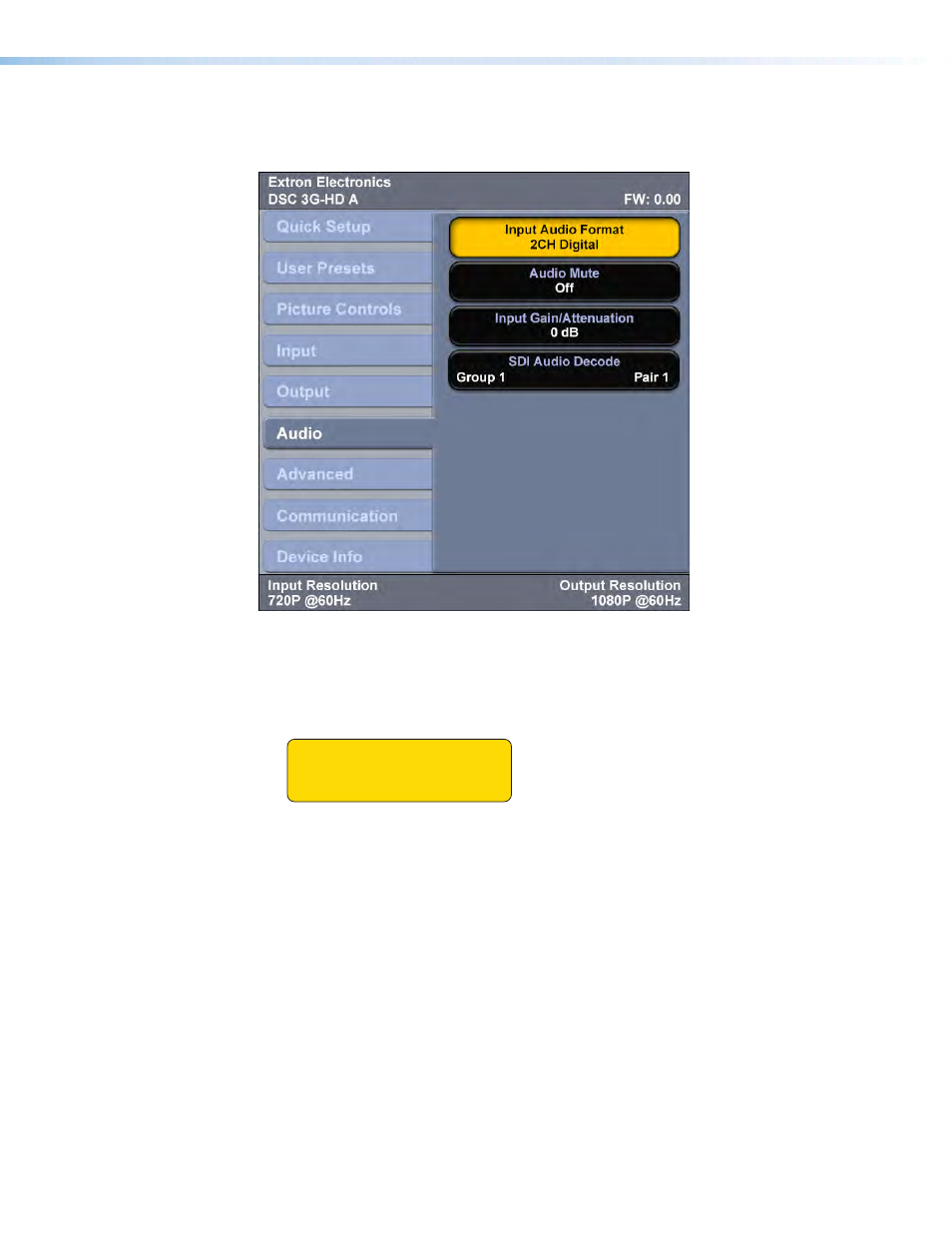

Figure 22.

Audio Submenu — DSC 3G-HD A

To use this submenu, select the desired option, then press any arrow button to step
through the selections.

Input Audio Format — This option lets you select the audio format for the input. The
first option on the Audio menu shows the selected format of the audio.

Input Audio Format

Analog

Figure 23.

Input Audio Format Field with Selected Audio Format

The audio format options are listed in the

table

on the next page.

DSC 3G-HD A and DSC HD-3G A • Operation

29
