YSI 5200 - Manual (Page 16)

YSI Incorporated 14 5200 Recirculating System Monitor
The following steps should be followed when wall
mounting the 5200 Monitor.
1. Loosely fasten the mounting brackets
(included) to the back of the 5200
Monitor with the mounting screws
provided as shown in Figure 3-3.
2. Tighten the screws, securing the brackets
to the Monitor.
3. Loosely fasten the 5200 Monitor to the
mounting surface with the mounting
screws provided as shown in Figure 3-4.
4. Tighten the screws, securing the Monitor
to the surface.

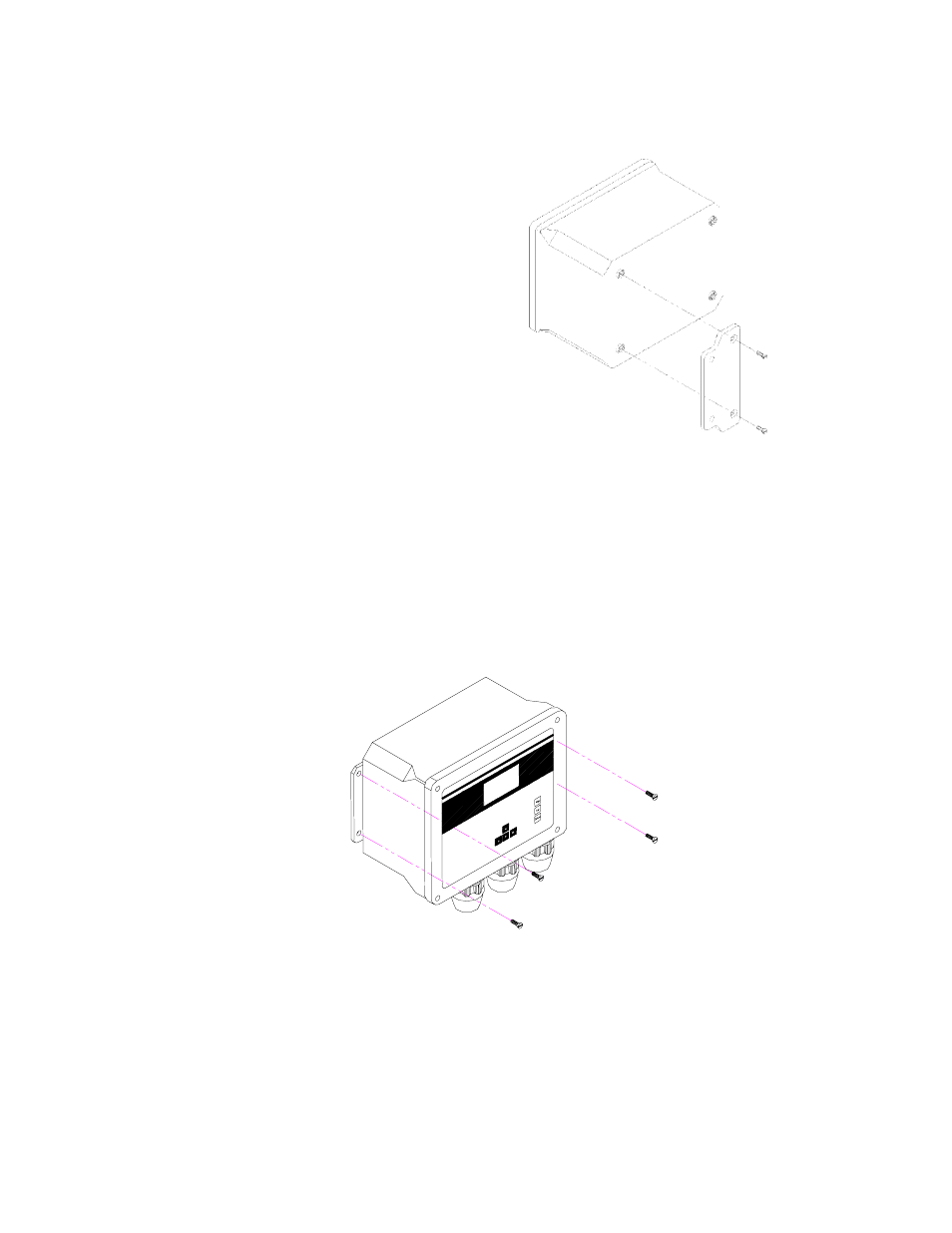

Figure 3-3 Attaching the Mounting Brackets
Figure 3-4 Securing the screws to the mounting surface
