24
GigaX2024/2048 L2 Managed Switch User Manual

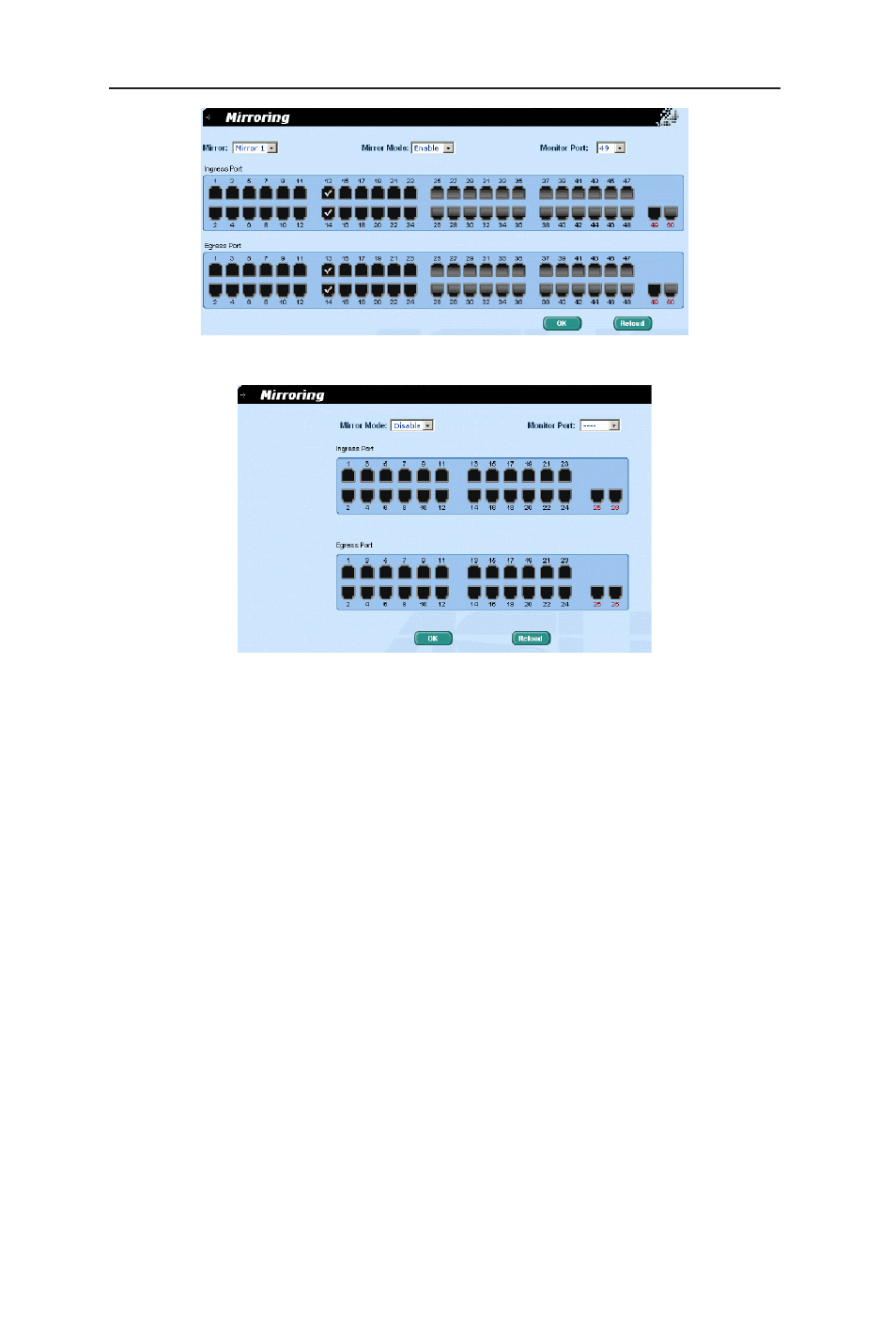

Figure 25. Mirroring page (GigaX 2048)
Figure 26. Mirroring page (GigaX 2024)
4.5.4 Static Multicast
This page can add multicast addresses into the multicast table. The switch
can hold up to 255 multicast entries. All the ports in the group will forward the
specified multicast packets to other ports in the group.
Show Group: selects “Add a new Group” to enter a new entry. Or select an
existing group address to display
MAC Address: the multicast address
VLAN: selects the vlan group . If you selected a Private VLAN, traffic from
isolated port is forwarded only to promiscuous port.
CoS: assigns the priority for Class of Service
Click OK to make the setting effective immediately. Click Reload to refresh the
settings to current value. To save configuration permanently, please go to Save
Configuration page, then click on Save.
