2 × 12A Digital Dual MicroDlynx TM : Non-Isolated DC-DC Power Modules
4.5Vdc –14.4Vdc input; 0.51Vdc to 5.5Vdc output; 2 × 12A Output Current
February 14, 2014 ©2014 General Electric Corporation. All rights reserved. Page 35
Surface Mount Information
Pick and Place
The2 × 12A Digital Dual MicroDlynx TM modules use an open
frame construction and are designed for a fully automated
assembly process. The modules are fitted with a label
designed to provide a large surface area for pick and place
operations. The label meets all the requirements for surface
mount processing, as well as safety standards, and is able
to withstand reflow temperatures of up to 300
o C. The label
also carries product information such as product code,
serial number and the location of manufacture.
Nozzle Recommendations
The module weight has been kept to a minimum by using
open frame construction. Variables such as nozzle size, tip
style, vacuum pressure and placement speed should be
considered to optimize this process. The minimum
recommended inside nozzle diameter for reliable operation
is 3mm. The maximum nozzle outer diameter, which will
safely fit within the allowable component spacing, is 7 mm.
Bottom Side / First Side Assembly
This module is not recommended for assembly on the
bottom side of a customer board. If such an assembly is
attempted, components may fall off the module during the
second reflow process.
Lead Free Soldering
The modules are lead-free (Pb-free) and RoHS compliant
and fully compatible in a Pb-free soldering process. Failure
to observe the instructions below may result in the failure of
or cause damage to the modules and can adversely affect
long-term reliability.
Pb-free Reflow Profile
Power Systems will comply with J-STD-020 Rev. D
(Moisture/Reflow Sensitivity Classification for Nonhermetic
Solid State Surface Mount Devices) for both Pb-free solder
profiles and MSL classification procedures. This standard
provides a recommended forced-air-convection reflow
profile based on the volume and thickness of the package
(table 4-2). The suggested Pb-free solder paste is Sn/Ag/Cu
(SAC). The recommended linear reflow profile using
Sn/Ag/Cu solder is shown in Fig. 50.
Soldering outside of the
recommended profile requires testing to verify results and
performance.
MSL Rating
The2 x 12A Digital Dual MicroDlynx TM modules have a MSL
rating of 3
Storage and Handling
The recommended storage environment and handling
procedures for moisture-sensitive surface mount packages
is detailed in J-STD-033 Rev. A (Handling, Packing, Shipping
and Use of Moisture/Reflow Sensitive Surface Mount
Devices). Moisture barrier bags (MBB) with desiccant are
required for MSL ratings of 2 or greater. These sealed
packages should not be broken until time of use. Once the
original package is broken, the floor life of the product at
conditions of
≤ 30°C and 60% relative humidity varies
according to the MSL rating (see J-STD-033A). The shelf life
for dry packed SMT packages will be a minimum of 12
months from the bag seal date, when stored at the following
conditions: < 40° C, < 90% relative humidity.

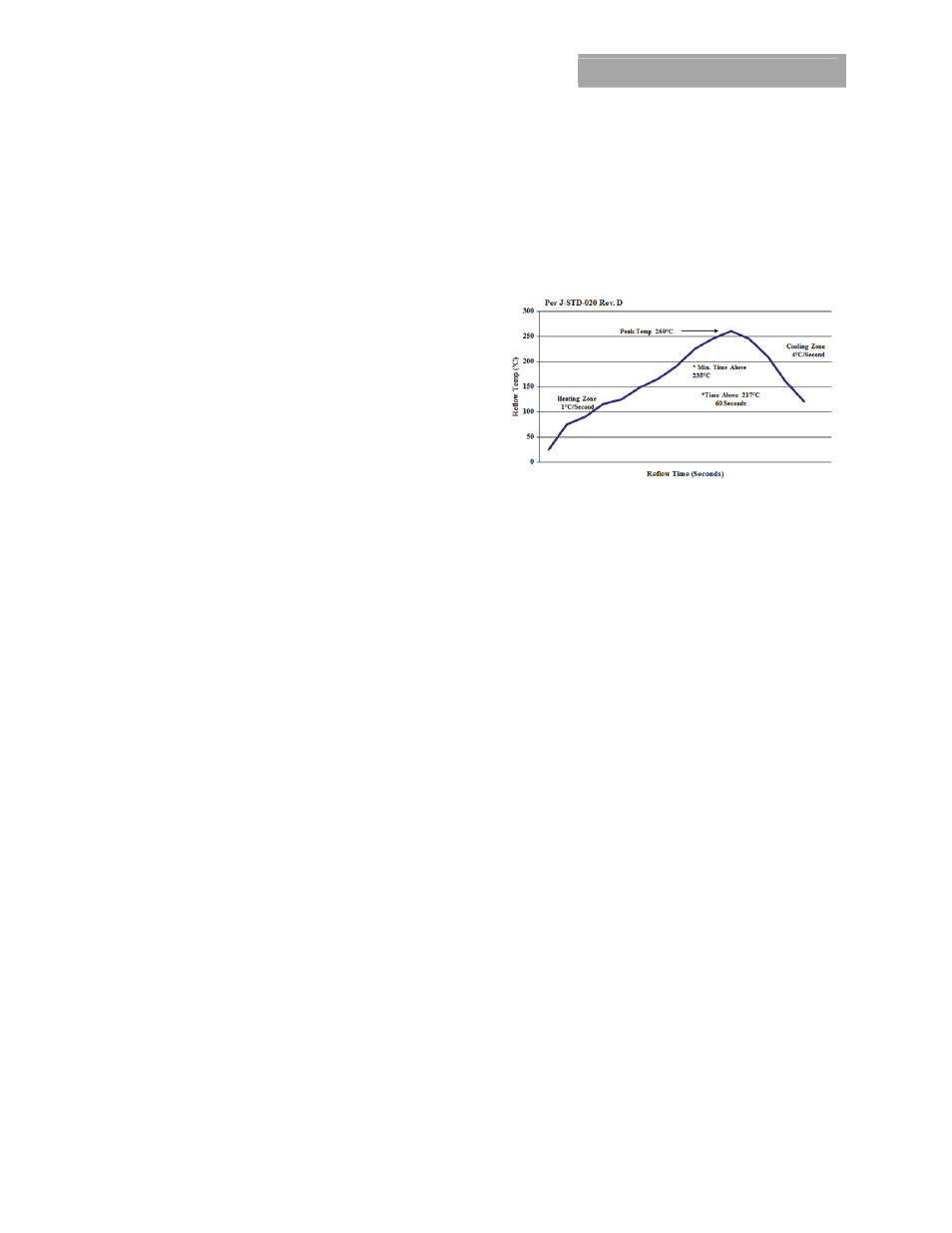

Figure 51. Recommended linear reflow profile using
Sn/Ag/Cu solder.
Post Solder Cleaning and Drying Considerations
Post solder cleaning is usually the final circuit-board
assembly process prior to electrical board testing. The result
of inadequate cleaning and drying can affect both the
reliability of a power module and the testability of the
finished circuit-board assembly. For guidance on
appropriate soldering, cleaning and drying procedures, refer
to Board Mounted Power Modules: Soldering and Cleaning
Application Note (AN04-001).
