GE Industrial Solutions 2 × 12A Digital Dual Output MicroDLynx - Manual

GE
Datasheet
February 14, 2014 ©2014 General Electric Corporation. All rights reserved.

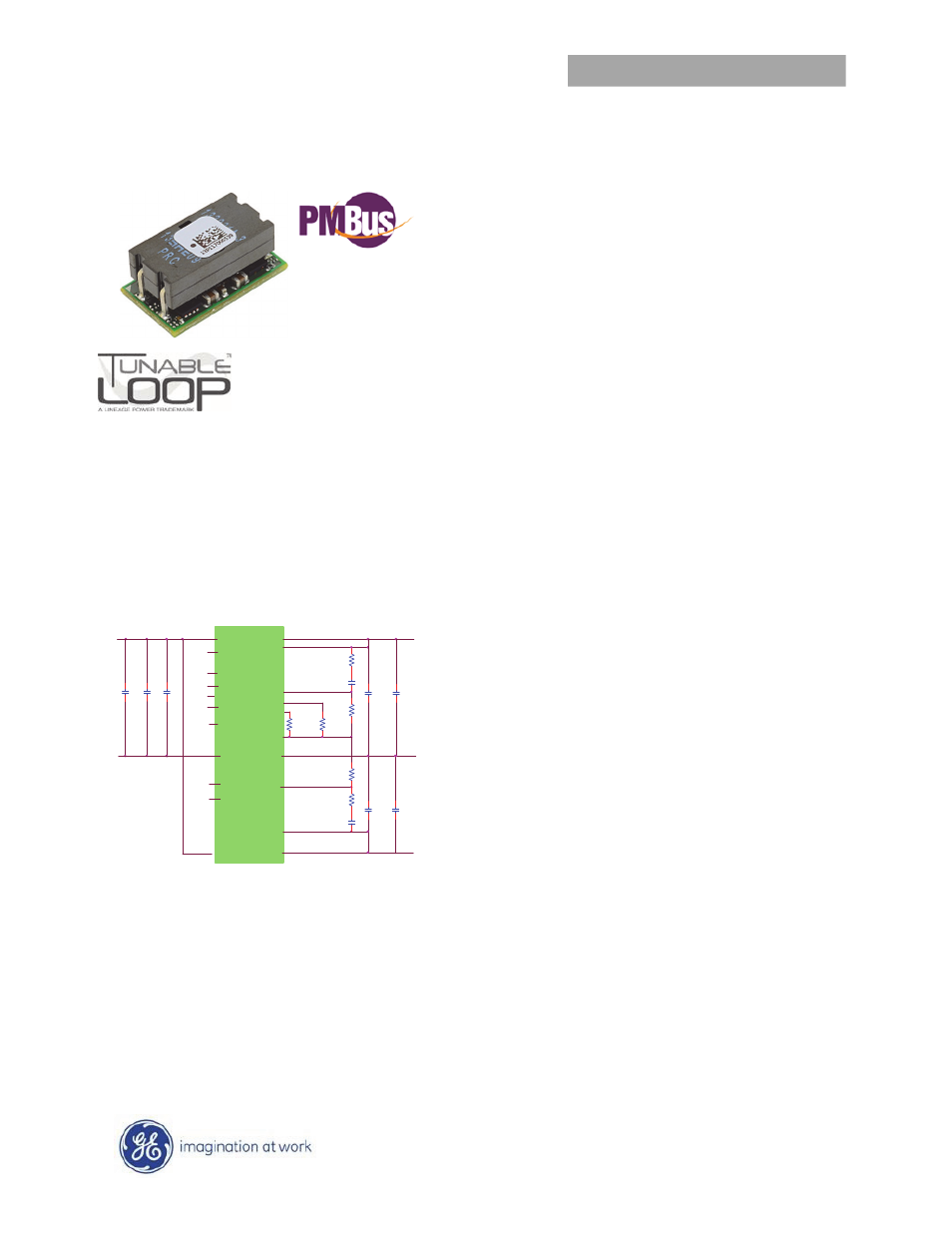

2 × 12A Digital Dual Output MicroDLynx TM : Non-Isolated DC-DC Power
Modules
4.5Vdc –14.4Vdc input; 0.51Vdc to 5.5Vdc output; 2 × 12A Output Current
Features
 Wide Input voltage range (4.5Vdc-14.4Vdc)
 Each Output voltage programmable from 0.6Vdc to
5.5Vdc via external resistor. Digitally adjustable down
to 0.51Vdc
 Small size: 20.32 mm x 11.43 mm x 8.5 mm
(0.8 in x 0.45 in x 0.335 in)
 Wide operating temperature range -40°C to 85°C
 Digital interface through the PMBus TM # protocol
 Tunable Loop TM to optimize dynamic output voltage
response
 Power Good signal for each output
 Fixed switching frequency with capability of external
synchronization
 180° Out-of-phase to reduce input ripple
 Output overcurrent protection (non-latching)
 Output Overvoltage protection
 Over temperature protection
 Remote On/Off
 Ability to sink and source current
 Start up into Pre-biased output
 Cost efficient open frame design
 Compliant to RoHS II EU “Directive 2011/65/EU”
 Compatible in a Pb-free or SnPb reflow environment
 Compliant to REACH Directive (EC) No 1907/2006
 Compliant to IPC-9592 (September 2008), Category 2,
Class II
 UL* 60950-1 2 nd Ed. Recognized, CSA † C22.2 No.
60950-1-07 Certified, and VDE ‡ (EN60950-1 2 nd Ed.)
Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
 Servers and storage applications
 Networking equipment
 Industrial equipment
Description
The 2 × 12A Digital Dual MicroDlynx TM power modules are non-isolated dc-dc converters that can deliver up to 2 × 12A of output
current. These modules operate over a wide range of input voltage (V
IN
= 4.5Vdc-14.4Vdc) and provide precisely regulated output
voltages from 0.51Vdc to 5.5Vdc, programmable via an external resistor and PMBus control. Features include a digital interface
using the PMBus protocol, remote On/Off, adjustable output voltage, over current and over temperature protection. The PMBus
interface supports a range of commands to both control and monitor the module. The module also includes the Tunable Loop TM
feature that allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output
capacitance leading to savings on cost and PWB area.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
# The PMBus name and logo are registered trademarks of the System Management Interface Forum (SMIF)
RADDR1
RTUNE1
CO3
SIG_GND
ADDR1
CLK
CI2
DATA
VIN2
VS+1
VOUT1
GND
RTrim1
CO4
RADDR0
TRIM1
ADDR0
RTrim2
CTUNE2
CI3
PGND
Vin+
CO2
VIN1
CI1
Vout+
ON/OFF2
CO1
ON/OFF1
PGND
VOUT2
CTUNE2
SYNC
PGOOD1
PGOOD2
TRIM2
MODULE
RTUNE2
SMBALRT#
VS+2
RoHS Compliant
