4-2. Parameter block configuration
4. Programming
Mode Selection
The ASTAT-IBP Plus includes a large number of parameters which are divided
into four blocks: Monitor, Calibration, Basic and Advanced. The parameters of
each group can be displayed or skipped according to the selection done in
parameter "G".
The monitor parameters are always displayed regardless of the mode selected
Settings in parameter "G" GCAL The Calibration parameters are displayed
GBAS The Basic parameters are displayed
GADV The Advanced parameters are displayed
GALL All parameters are displayed
Monitoring
Parameters
Calibration
Parameters
Basic
Parameters
Advanced
Parameters
G CAL
G ALL
G BAS
G ADV
There is a quick way to search automatically the parameter "G" by pressing and Keys. "Gxxx" will be shown on the display.
Once the parameter "G" is displayed, choose the value desired by pressing or Keys. The display will sequence "GBAS", "GCAL", "GADV" and
"GALL" values repeatedly. The actual value displayed can be stored in a temporal memory buffer by pressing key.
Values stored in the temporal memory are lost upon control power loss, unless saved in the permanent E2PROM memory through parameter "W".
Additional instructions are given on page 4-9.
The above is an example given for parameter "G", but all ASTAT-IBP Plus parameters can be modified from its default factory value in a similar way.
Searching and Setting Parameters
The ASTAT-IBP Plus displays the parameters sequentially while depressing the key and pushing repeatedly or keys. Proceed in this way
until the parameter "G" is displayed.
C / V
C / V

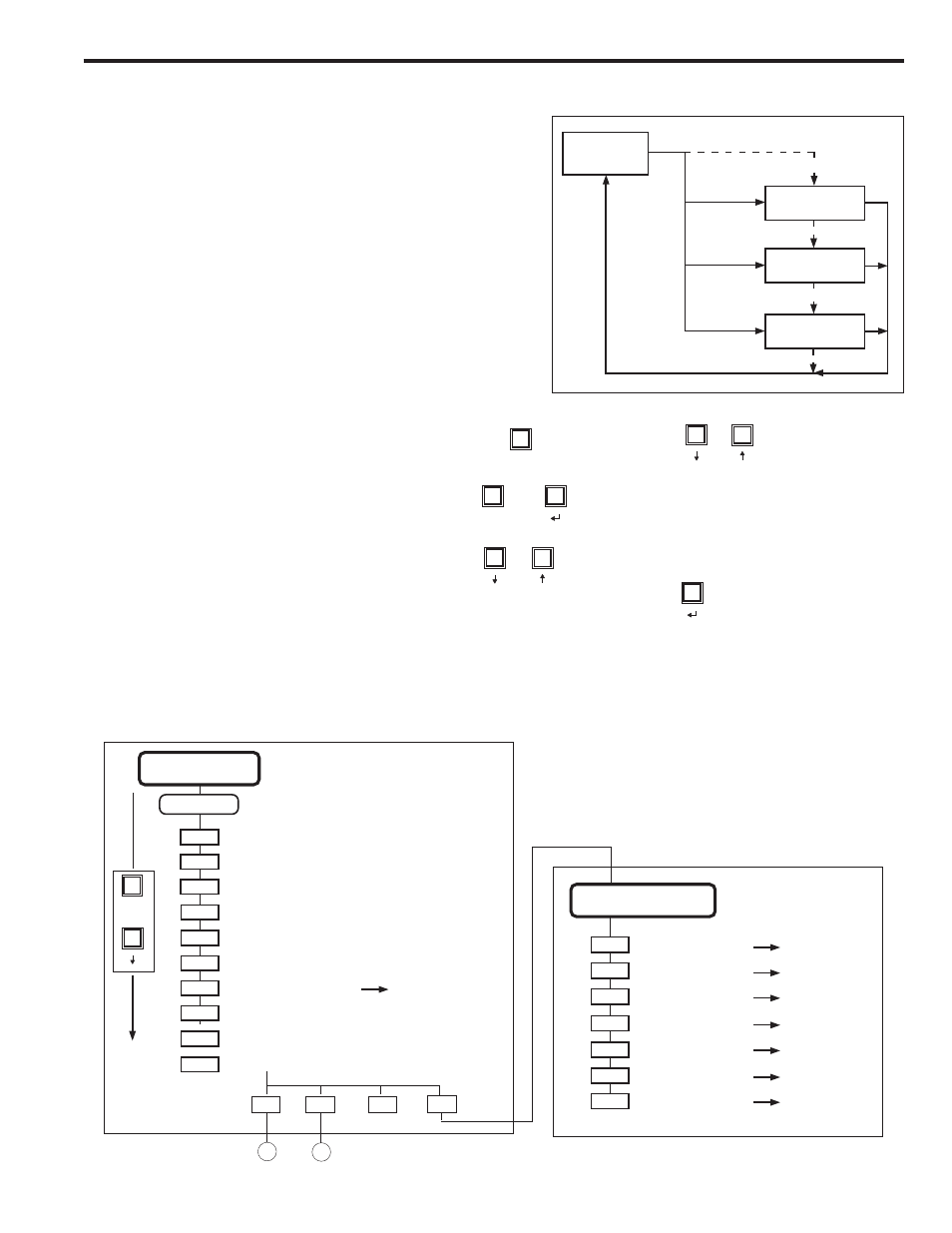

Parameter layout
Monitor parameters
U Line voltage
Voltage calibration
Unit frame
Current calibration
t
UF
m
N Motor unit ratio
Overload protection
Service factor
o
GBAS
Motor current
Software version
Line voltage
Line power
Elapsed time
Fault history buffer
Password
E2PROM writing
Parameter block selector
M
v
V
w
E
e
K
W
G
f
GADV GALL GCAL
100-600
0-690
K,L , ... ,S
0-1300
40-120
0, N1, N2, N3,C1,C2
100-130
Calibration parameters
e0, e1, e2, e3
1 2
Status Shown automatically ON, STOP, LOCK, PULS, ...
(see page 4-4)
C / V
+
4-2
Line power factor PF
