3-3. I/O wiring
3. Technical Specifications

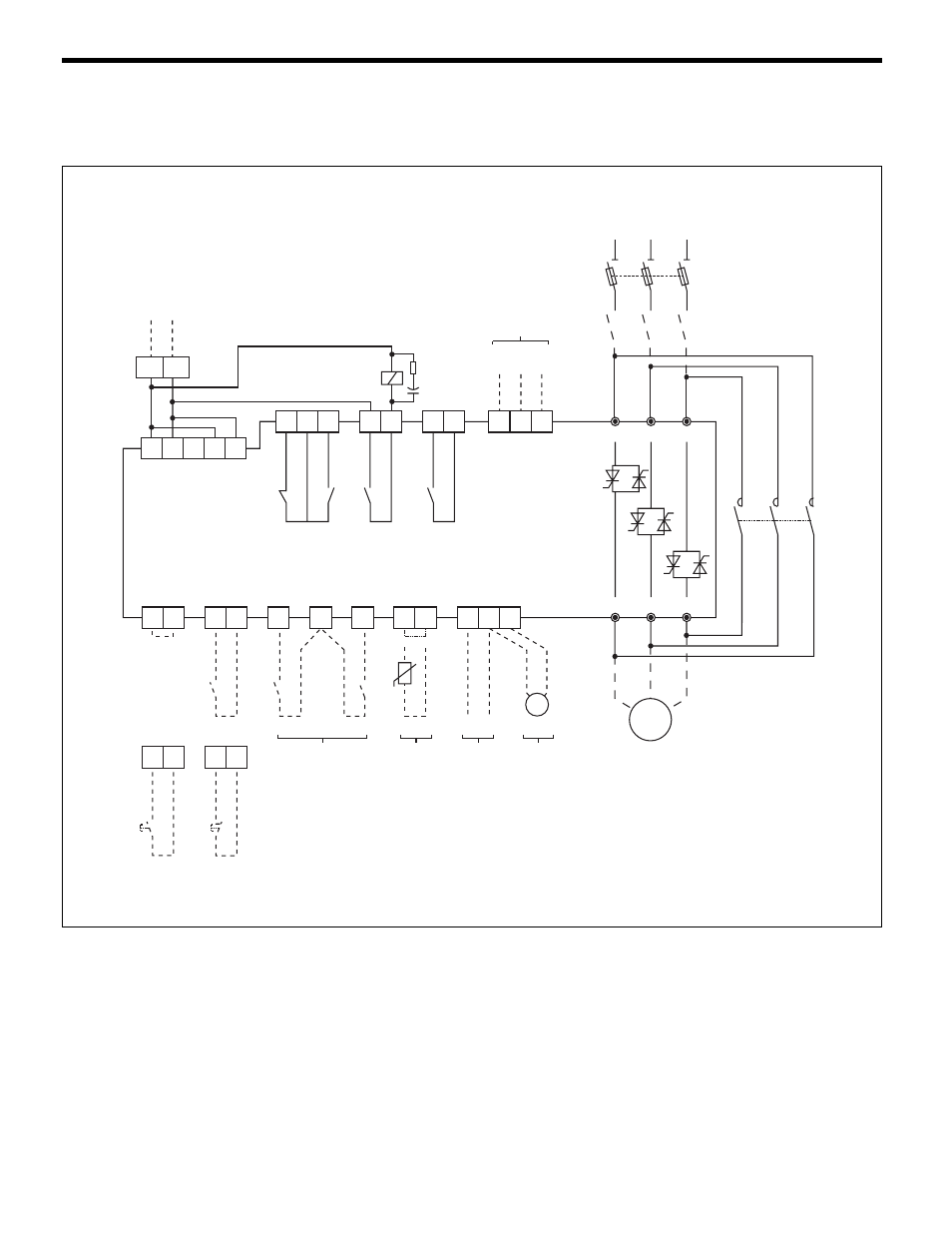

ASTAT-IBP Plus terminal layout and wiring configuration is shown in the diagram below.
Notes: (1) Control and Mains wiring recommendations are given in chapter 5.
(2) The programmable inputs I3, I4 are not assigned to any function as default. Check pages 3-5 prior to using these
inputs.
(3) The programmable relay output is assigned to the following functions as default:
Relay (1r): RUN, (RUN status)
(4) Important: Use dry contacts only
3-3
A1 A2 B1 B2
57 57 57 6 8
12 11 14 23 24 33 34
1 2
Start /Stop
(Permanent Command)
3 4 5 7 9
57 57 1 2
Start Stop
(Command by push-buttons)
Prog
rammab
le
Inputs
Motor Ther
mistor
Input
Ta
c
h
o f
eedbac
k
Analog Input
0-10V
Analog Output
V
+ -
- +
I3 I4
1r 2r 3r
Programmable Inputs
Programmable Relay Outputs
TD RD SG
Tx
M2
Bypass
M2
Bypass
Rx Gr
Serial Comm.
RS232C
Control Voltage
110 / 120V AC
TBA2 TBA1
M
3 ~
L1 L2 L3
1 L1 3 L2 5 L3
2 T1 4 T2 6 T3
