3. Technical Specifications
3-4
3-4. Operating modes
Initial ramp
Initial voltage (pedestal)
Kick start
Acceleration ramp
Running mode
Soft stop mode
Current limit
Ramp continue
Stop mode
Starting by voltage ramp
Starting by current limitation
5 main frequency cycles
30 to 95% U n (adjustable via initial torque setting T)
95% U n . Enabled by parameter "Pxxx" to ON, 0-999 ms (adjustable)
1-45 sec (adjustable). Dual ramp option.
Fast ramp (if motor is up to speed before end of normal ramp time)
Nominal voltage (bypass mode)
Deceleration ramp 1-60 sec (adjustable). Secondary ramp 1-60 sec.
Ramp down modes available are:
- Soft Stop -Voltage ramp down-. Enabled by "Sxxx" to ON
- Pump control. Selectable by "Sxxx" to ON and "Cxxx" to ON
- Linear ramp down (Tacho feedback needed)
Current limiting set point (100 to 450% x (Ir/In) Max 450% In)
Accelerating ramp (continuation of acceleration after motor amps drop below current limit)
Standard stopping (coast to rest)

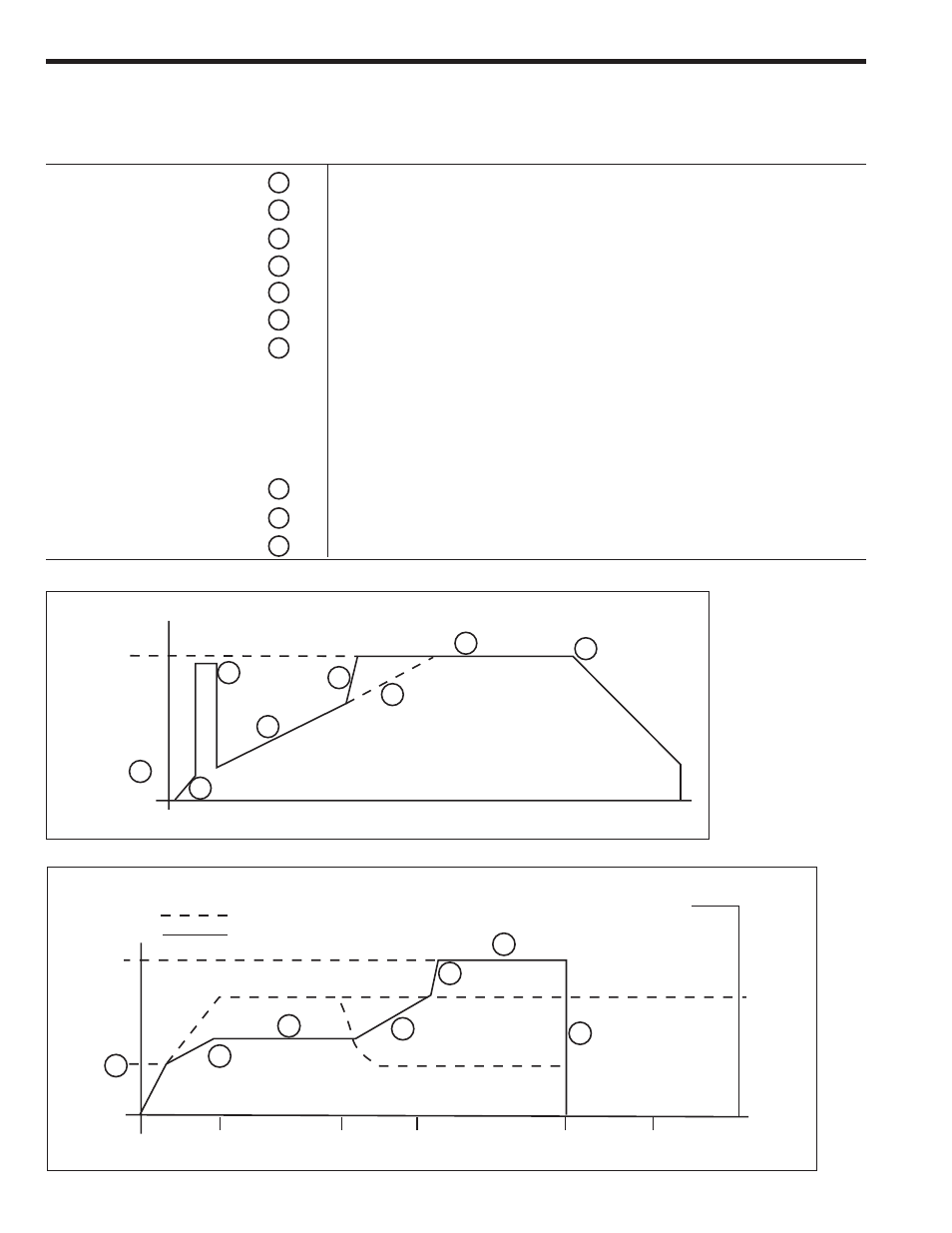

Operating Mode Key Description
1
9
8
7
6
5
4
2
1a
3
1a
1
2
3
4
6
U/Un
8
5
100%
Time
Starter
Output
Voltage (%)
1a
3
4
7 8
5
9
100%
Starter
Output
Voltage (%)
Ramp Current Limit
(Voltage Hold) Ramp At Speed Coast Stop Time
Max
Motor Current
450%
Set Point
FLA
Current
Limit
Current to Motor
Output Voltage
