3-5. Programmable inputs and outputs

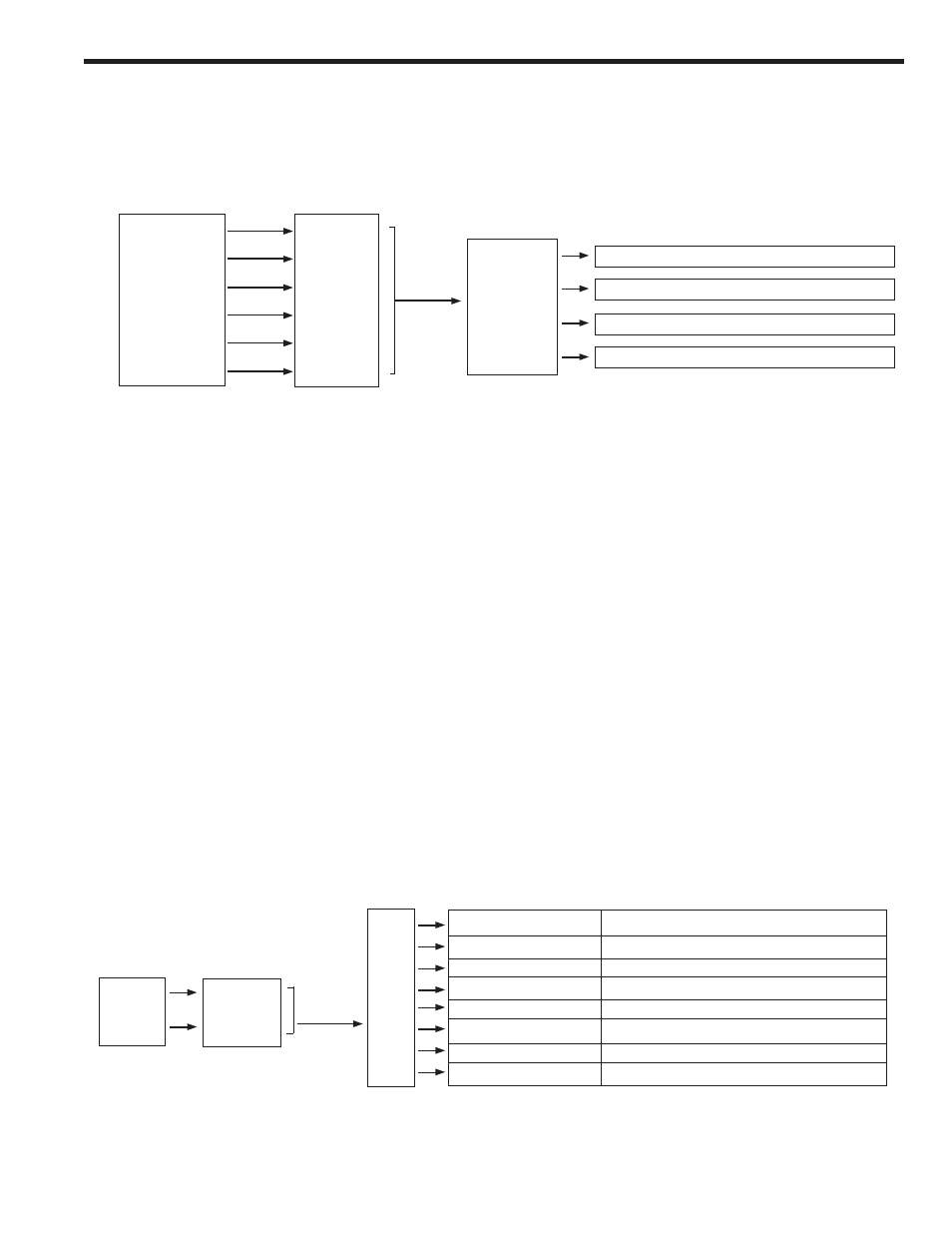

Programmable inputs and functions
3. Technical specifications
The ASTAT-IBP Plus functions such as soft stop, kick start, etc., can be enabled (ON) or disabled (OFF) and set in their dedicated parameters by
using the keypad. Most of these functions can be enabled or disabled remotely as well, through the programmable inputs I3 or I4 (terminals 3-57
and 4-57).
Soft Stop
Pump Control
Kick Start
Linear Ramp
Dual Motor
Remote Control
S x x x
C x x x
P x x x
D x x x
A x x x
X x x x
_ O F F
_ O N
_ I 3
_ I 4
Function Parameter
Set Value
The function is permanently disabled
The function is permanently enabled
The status of the function depends upon I3 input
The status of the function depends upon I4 input
NOTE: One programmable input may enable or
disable more than one function
Programmable relay outputs
The ASTAT-IBP Plus includes two programmable relays 1 r and 3 r (dry contacts). ASTAT terminals are 11-12-14 and 33-34.
These relays can be assigned to several functions, as shown below.
Relay 1r
Relay 3r
22
23
24
25
27
28
29
30
Fault Detects ASTAT-IBP Plus fault status
Undervoltage (1) Detects limit set in parameter UVxx
Overvoltage (1) Detects limit set in parameter OVxx
RUN Detects ASTAT-IBP Plus run status
Undercurrent Detects limit set in parameter UCxx
Overcurrent Detects limit set in parameter OCxx
Disabled Disables the relay function
Future use
Relay N# Parameter
1 r x x
3 r x x
Set Value
3-5
More than one function can be enabled in the ASTAT-IBP Plus, either by the keypad or through the programmable inputs I3 and I4, but there are
some functions which may not work as expected during stopping, such as when they are simultaneously enabled. When two or more of the below
functions are simultaneously enabled, the priority is defined in the following table:
Linear Ramp (S, D=ON) a a
Soft Stop (S=ON) a b
Pump Control (S, C=ON) a b
Linear Ramp (S, D=ON)
Soft Stop (S=ON) Pump Control (S,
C=ON)
a The unit stops by Linear Ramp
b The unit stops by Pump Control
Condition Action
○○
○○○○
○○
○○○○
○ ○ ○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○ ○ ○
Relay 2r has a fixed value of 20 (terminals 23-24) for end of ramp (EOR) Bypass Control.
Note: (1) Monitors L1
