4.1 Access to terminal block
Access to terminal block: remove the 2 screws of the terminal block
cover
Figure 4-1. PDU of 6K/10K

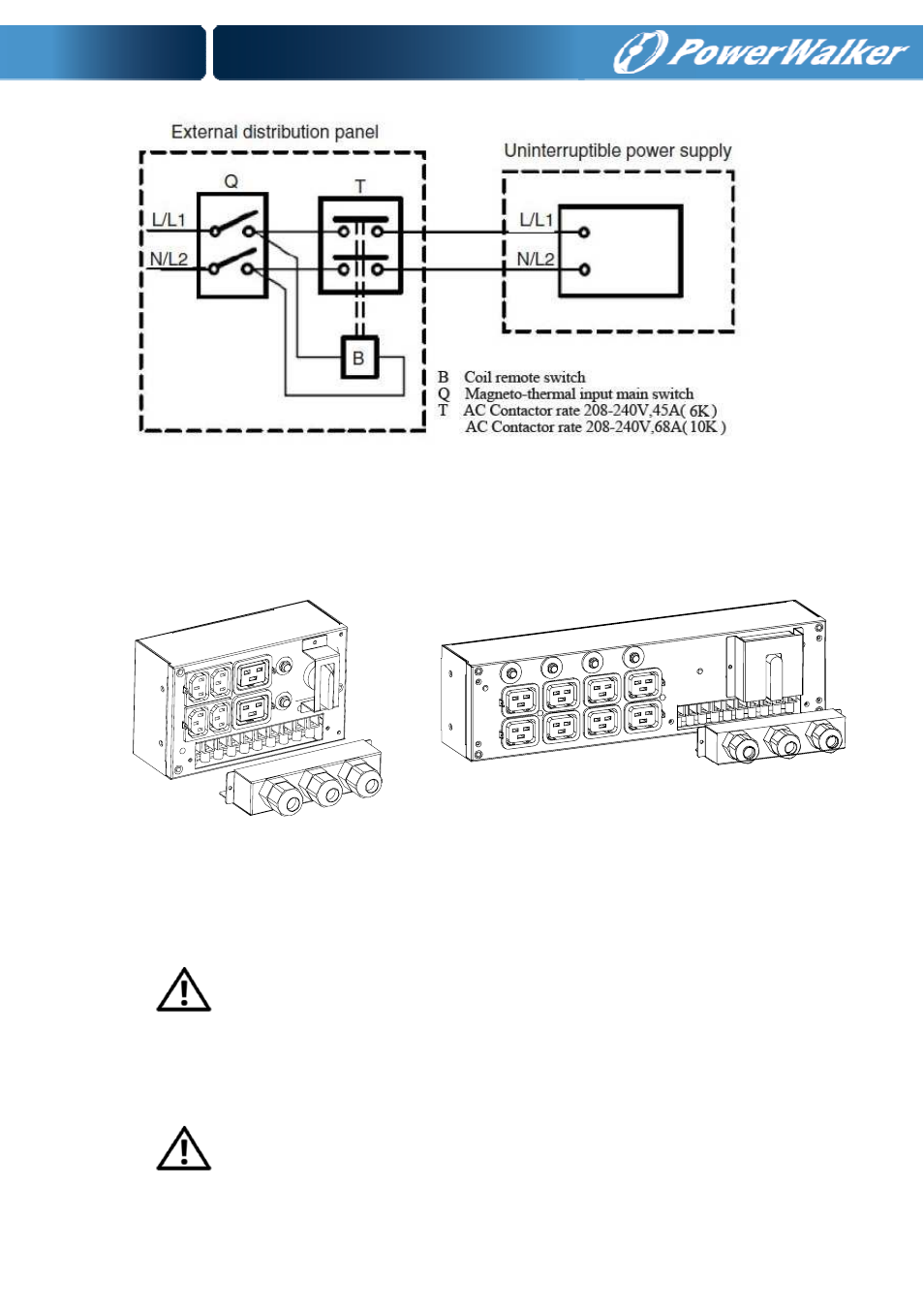

4.2 Common input sources connection
CAUTION:
This type of connection must be carried out by qualified electrical
personnel
CAUTION:
Always connect the earthing wire first
