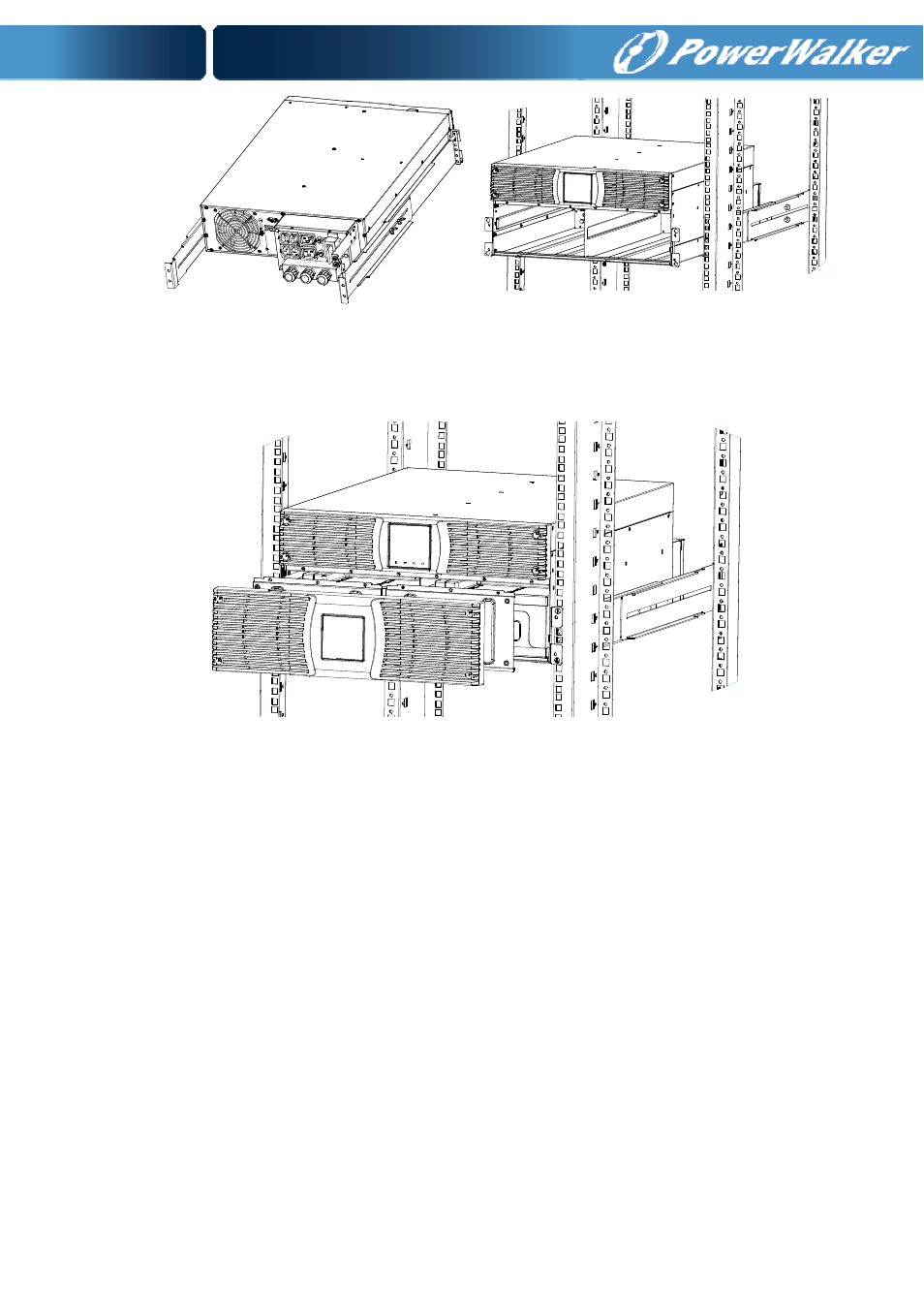

Figure 3-13. Install the sliding rails

7. For 10K---Install the battery pack and battery protection plate,

then replace the front panel.

Figure 3-14. Installing the Cabinet

8. For 6K---Replace the battery tray, and connect the internal

battery connector, then replace the protection plate and the front

panel.

9. If installing additional UPSs, repeat from Step 1 to Step 8 for

each cabinet.

3.5.2 Installing the EBMs

Note: A little of arcing may occur when connecting an EBM to the

UPS. That is normal and not harmed. Plug the EBM cable into the

UPS battery connector quickly and firmly.
