17
To install EBMs:
6K Model:
1. Plug the EBM cable into the UPS battery connector

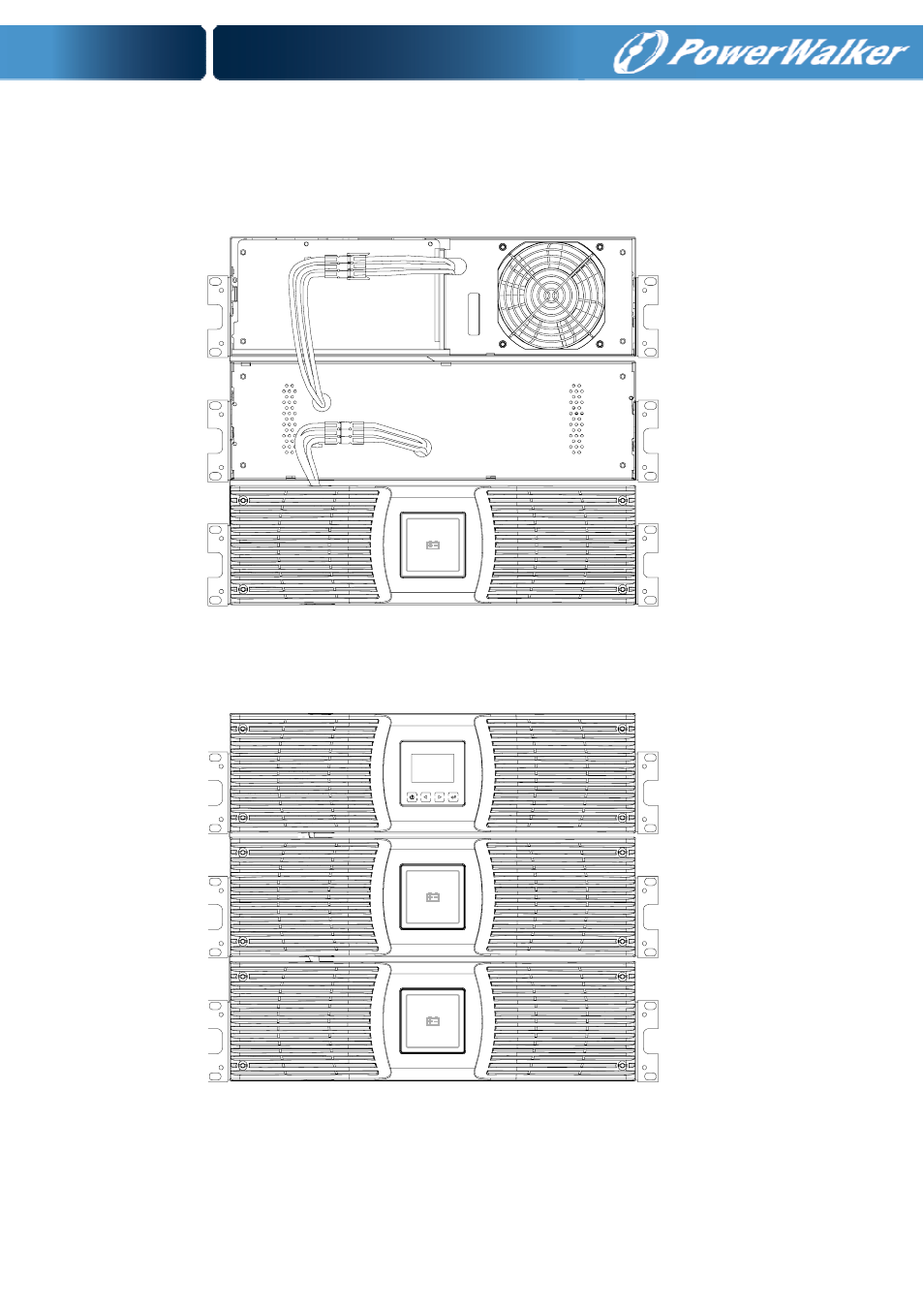

Figure 3-15. Plug the EBM cable into the UPS battery connector
2. Replace UPS’s front panel and EBM’s front panel.
Figure 3-16. Replace UPS’s front panel and EBM’s front panel.
