Getting Started for I-7000 Series Modules
Date: Jan-08, 2002 Version 1.02 page: 51

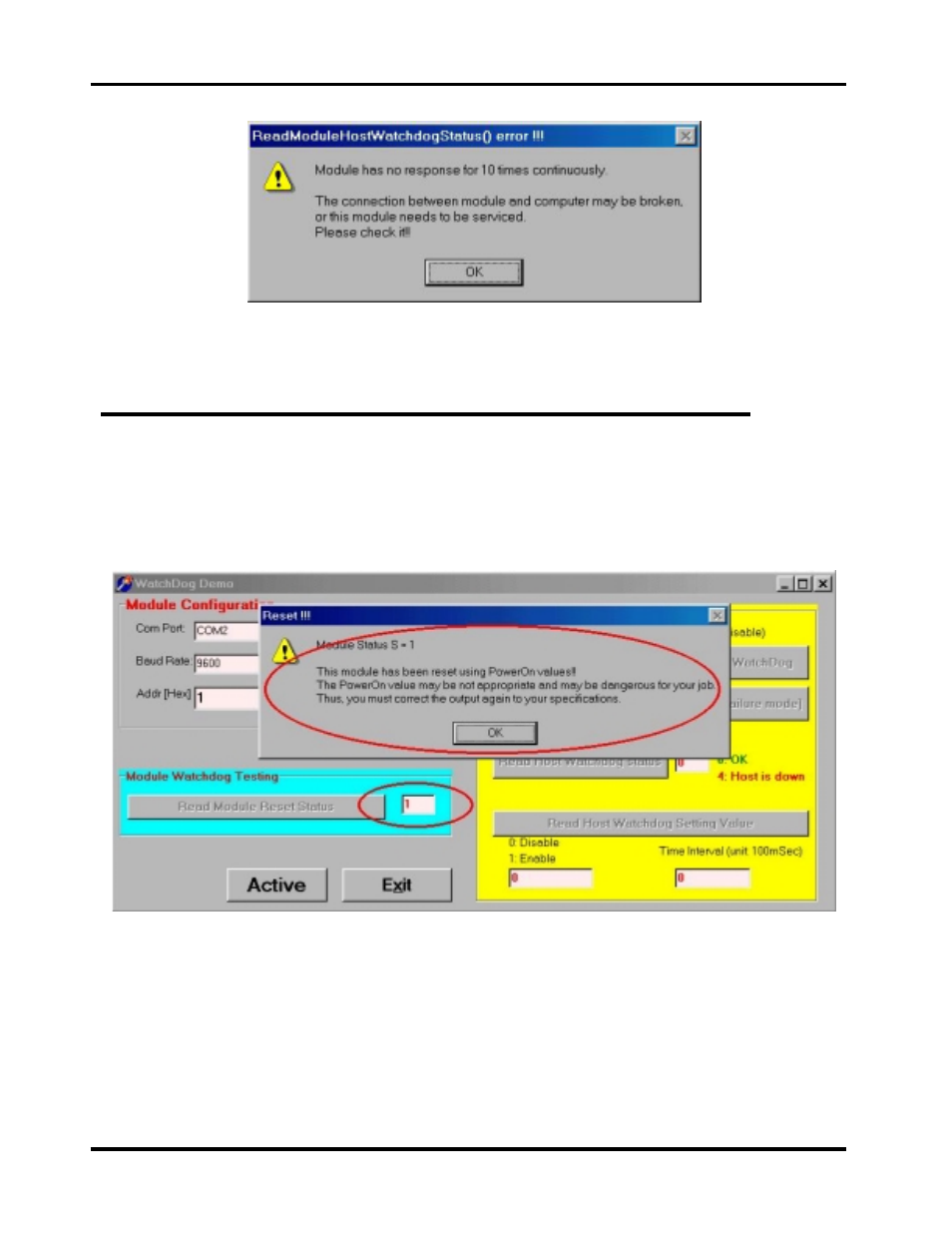

Figure 5-5-10. Communication line is broken.
Click on the “OK” button to close it.
(This feature doesn’t involve the Dual Watchdog.)
5.5.1.3 Module Watchdog
Please connect the RS-232 cable to the I-7520 module again. Unplug
the user’s I-70xx module, then plug it in again. The "Reset" message box will
pop up as in Figure 5-5-11.
Figure 5-5-11. Module-Watchdog Demo .
Module has been reset. Output goes to Power-On values.
Click on the “OK” button to close it.
The Power-On value may be not appropriate and may be dangerous for
your job. Thus, correct the output values again to fit your specifications.
