Getting Started

for I-7000 Series Modules

Date: Jan-08, 2002 Version 1.02 page: 42

The flow chart for module-watchdog (hardware) failure detection is given

in Figure 5-3-2.

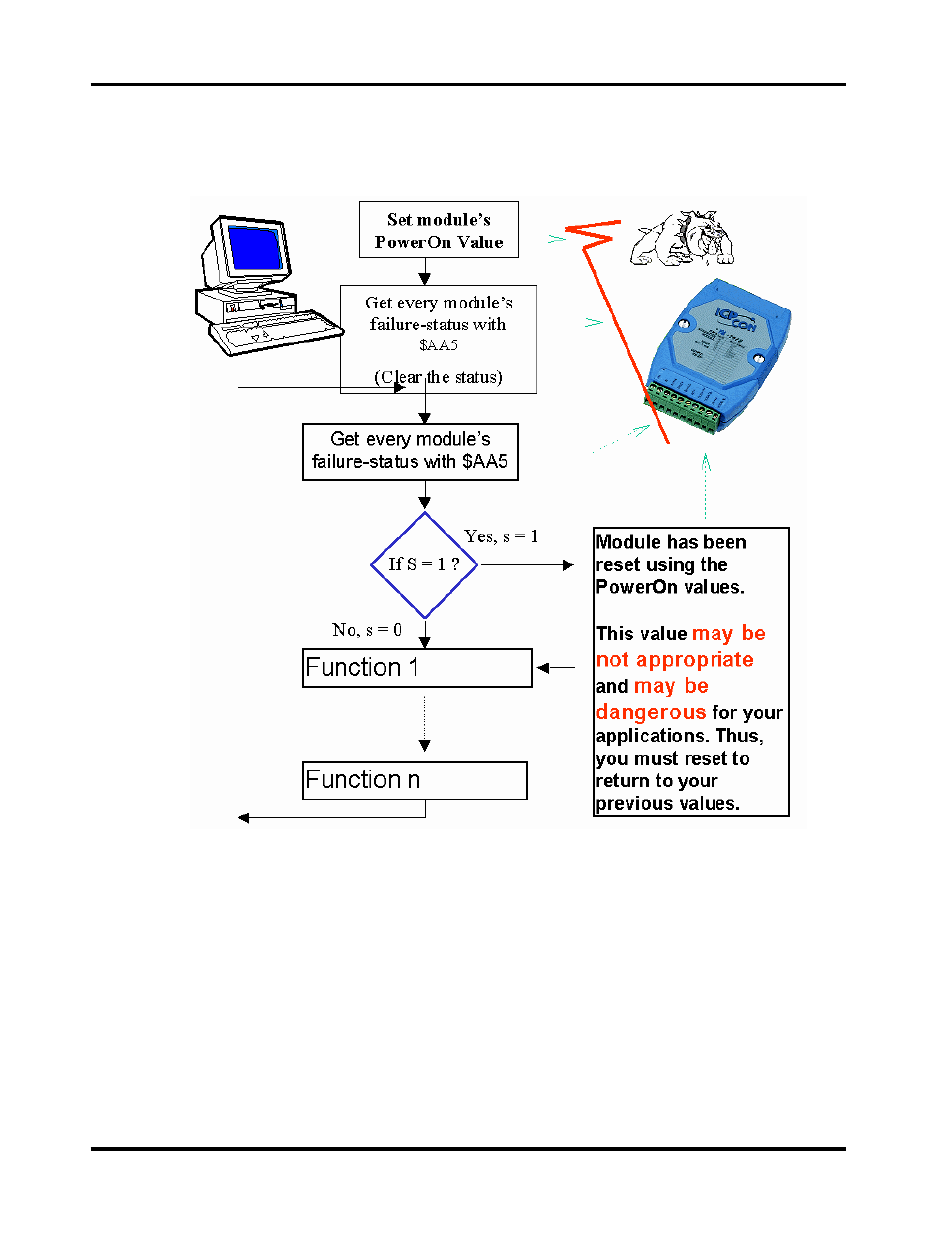

Figure 5-3-2. Flow chart of Module Watchdog.

Frequently checking module status if the module is working in harsh

environments is highly recommended.
