Getting Started for I-7000 Series Modules
Date: Jan-08, 2002 Version 1.02 page: 23
2.5.7 .MAP File Operation
The configuration information can be stored into a file with the .map
extension file name (*.map). This file can be opened or printed out on
demand. The menu item
“Open/Save/Print” is shown as Figure 2-5-12. The
save operation is used to save the information for discovered modules into a
file (for example: “test.map”). Refer to Figure 2-5-13. The screen in Figure 2-
5-14 shows opening a stored map file.

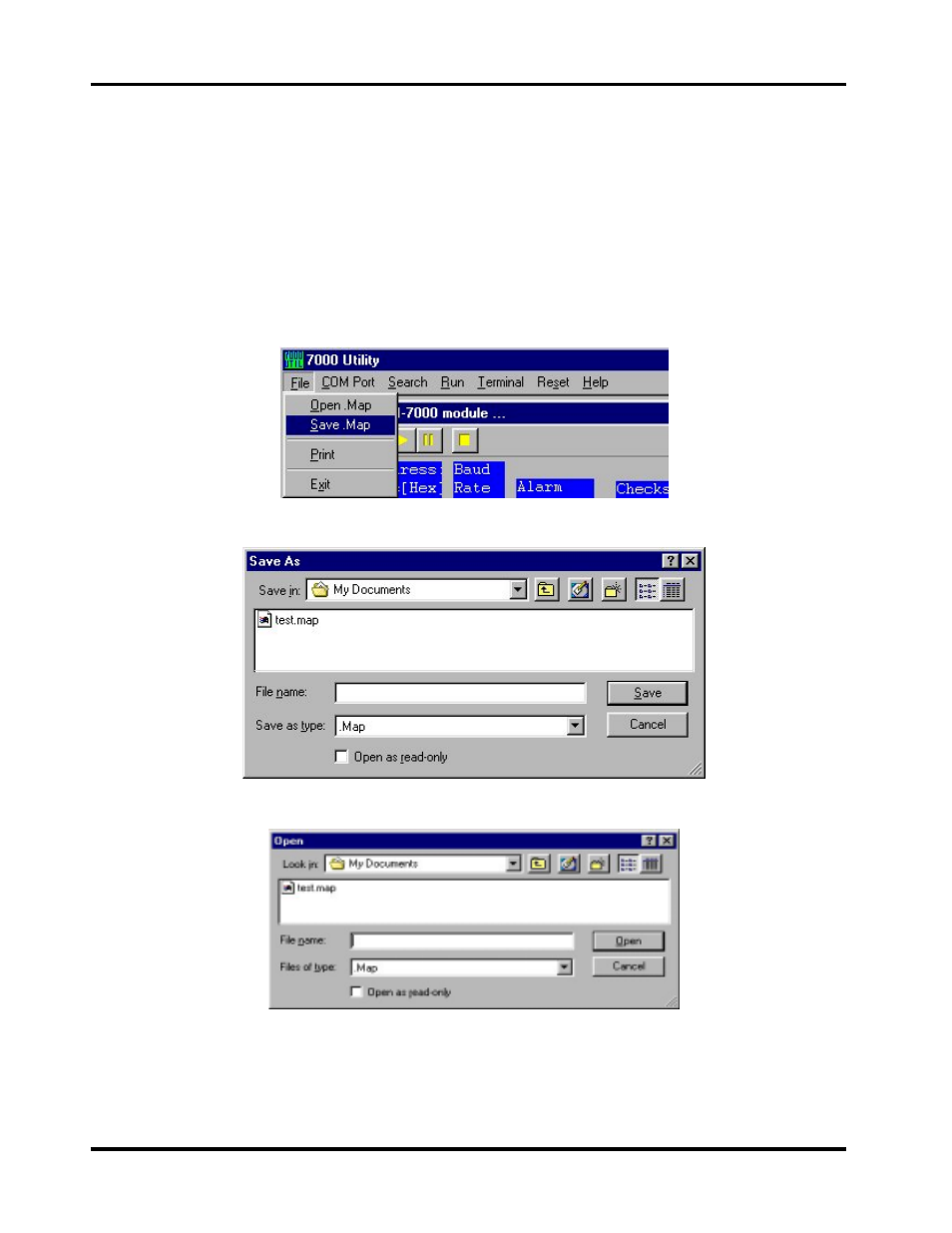

Figure 2-5-12. The “ Open/Save/Print ” menu item.
Figure 2-5-13. Saving into a “.map” file.
Figure 2-5-14. Opening a “.map” file.
