Getting Started for I-7000 Series Modules
Date: Jan-08, 2002 Version 1.02 page: 24

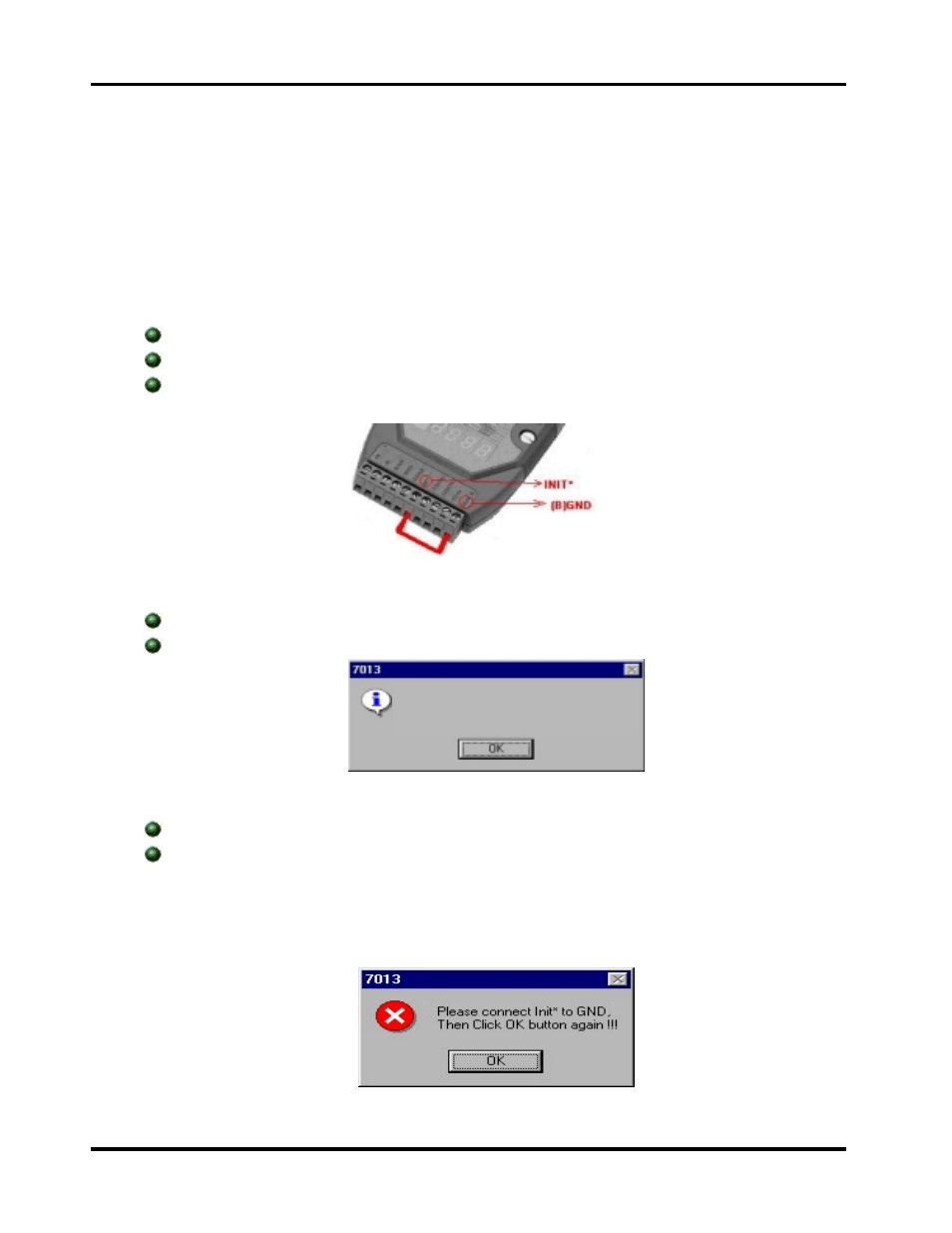

2.6 Changing Baud Rate and Checksum
Before clicking the “ Setting ” button on the “ Setting Configuration for
XXXX” window to change either the baud rate or checksum, please refer to
Figure 2-5-5. Users have to short the “
INIT* ” and “ GND ” pins of this module.
Please refer to Figure 2-6-1 ~ 2-6-3.
Change the baud rate or checksum for the specified module.
Turn the "
INIT* " and " GND " screws counter-clockwise.
Use a wire to connect the “ INIT* ” and “ GND ” of this module. Refer to
Figure 2-6-1.
Figure 2-6-1. Using a wire to short the pin of “ INIT* ” and “ (B) GND ”.
Click the “ Setting ” button.
Then the 7000 Utility window pops up as in Figure 2-6-2.
Setting C onfiguration O K !!
Please T urn off the pow er of 7000 m odule,
then Tu rn O n again to take effect the setting!!!
Figure 2-6-2. Setting Configuration OK!!
Turn off the power supply of this module and then turn it on again.
Search to ensure that the settings are correct.
A window like the one shown in Figure 2-6-3 indicates failure. Check the
" INIT* " and " GND " connections, and then follow the steps listed above. If the
Figure 2-6-3 is received again, consult your local distributor.
Figure 2-6-3. The “ INIT* ” and “ GND ” do not connect correctly.
