Getting Started for I-7000 Series Modules
Date: Jan-08, 2002 Version 1.02 page: 21
2.5.6 Command Testing for a Module
To send and receive commands, please click the “ Terminal / Single
Line ” menu item. Refer to Figure 2-5-8. If no module is selected, the default
baud rate is 9600 and checksum is disabled as in Figure 2-5-9. If a module is
selected, then the baud rate and checksum status will be identical to the
selected module as in Figure 2-5-10. The screen in Figure 2-5-11 shows
sending a command to a specified module.

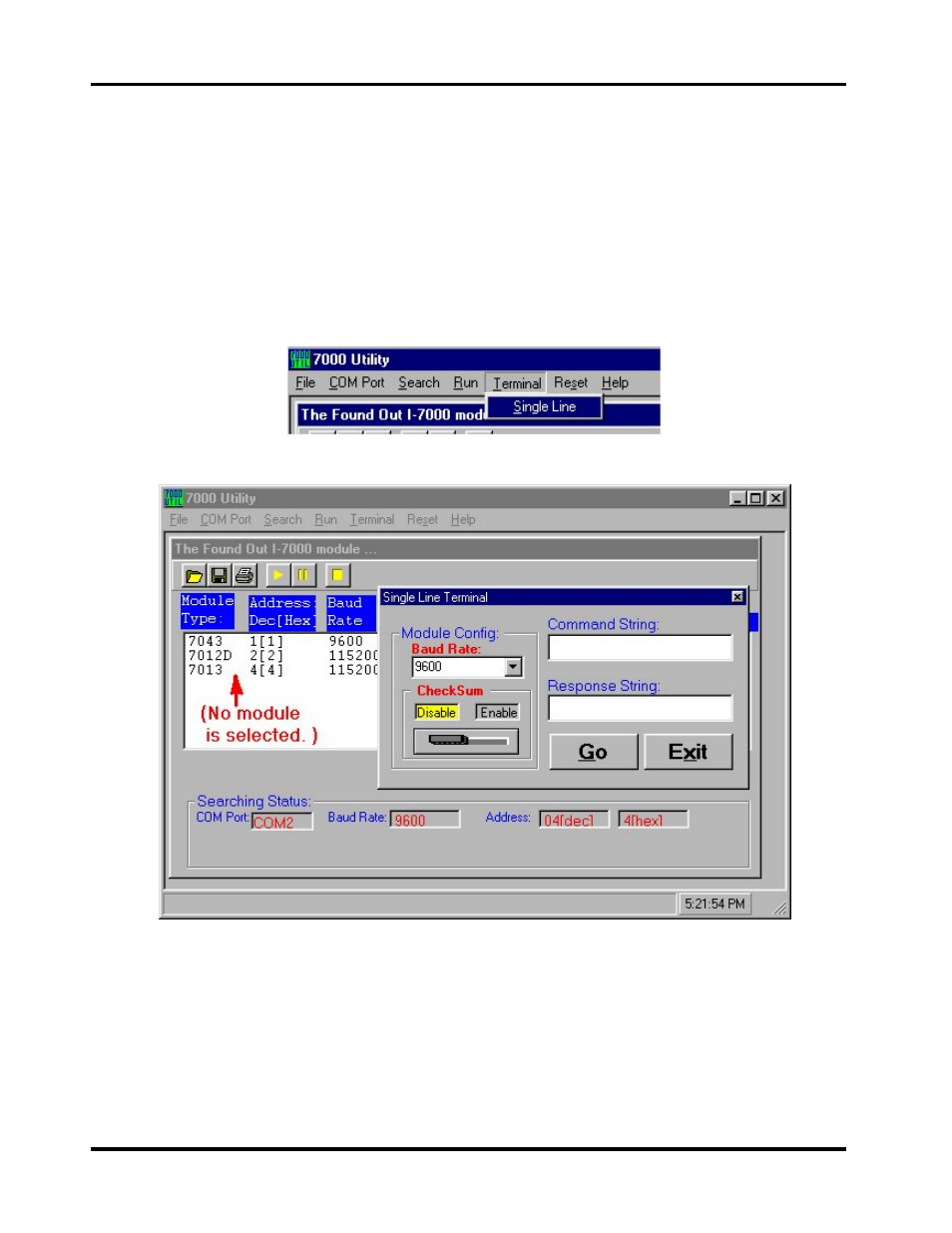

Figure 2-5-8
Figure 2-5-9. No module is selected
