Getting Started for I-7000 Series Modules
Date: Jan-08, 2002 Version 1.02 page: 50

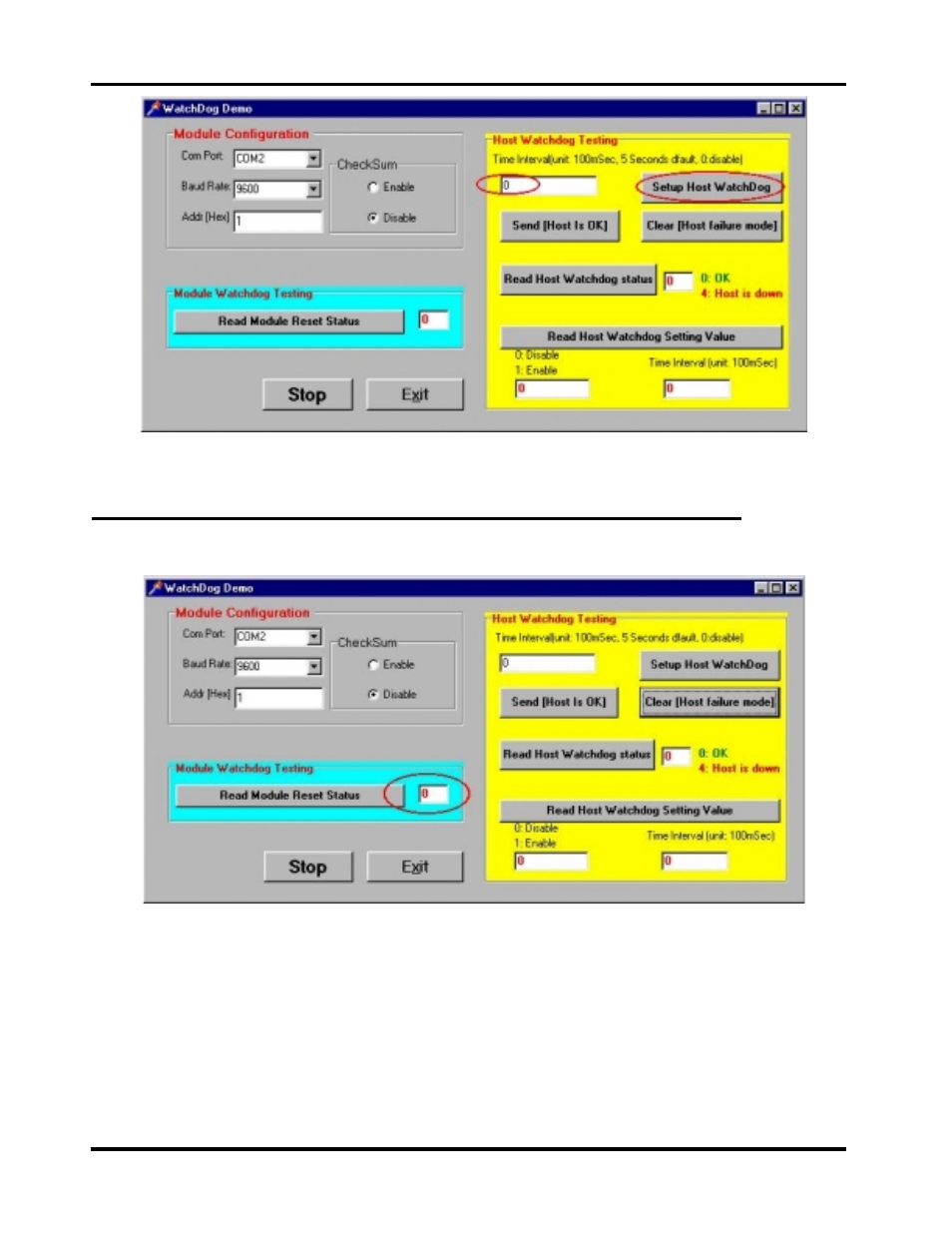

Figure 5-5-8. Type 0 in the Host-Watchdog’s time interval edit box. Click the
“Setup Host Watchdog” button to disable it.
5.5.1.2 Broken communication line detection
Figure 5-5-9. Normally, the Module Reset Status is 0.
Now, please disconnect the RS-232 cable from the I-7520 module. This
is used to simulate a broken communication line. After x seconds (determined
by the sample program), a message box pops up to tell the user that the
communication line is broken between the computer and the module (refer to
Figure 5-5-10).
