Getting Started for I-7000 Series Modules
Date: Jan-08, 2002 Version 1.02 page: 17
2.5.3 Assigning COM Port, baud rate and checksum setting for
Searching
This section describes how to change the search conditions for COM
port, baud rate and checksum status.
Click on the “ COM Port” menu item, and a window with the title “ Select
the COM port and Baud Rate… ” appears as in Fig 2-5-3. This window
prompts the user to assign the COM port, baud rate and checksum status.
After configuration and clicking on the “
OK “ button, the 7000 Utility starts the
searching process again. Any module that meets these conditions will be
recognized and shown in the information window.
These settings (include the COM port number, baud rate and
checksum) of the search conditions will automatically be stored into the
“
ICPCON.CFG ” when exiting the 7000 Utility .

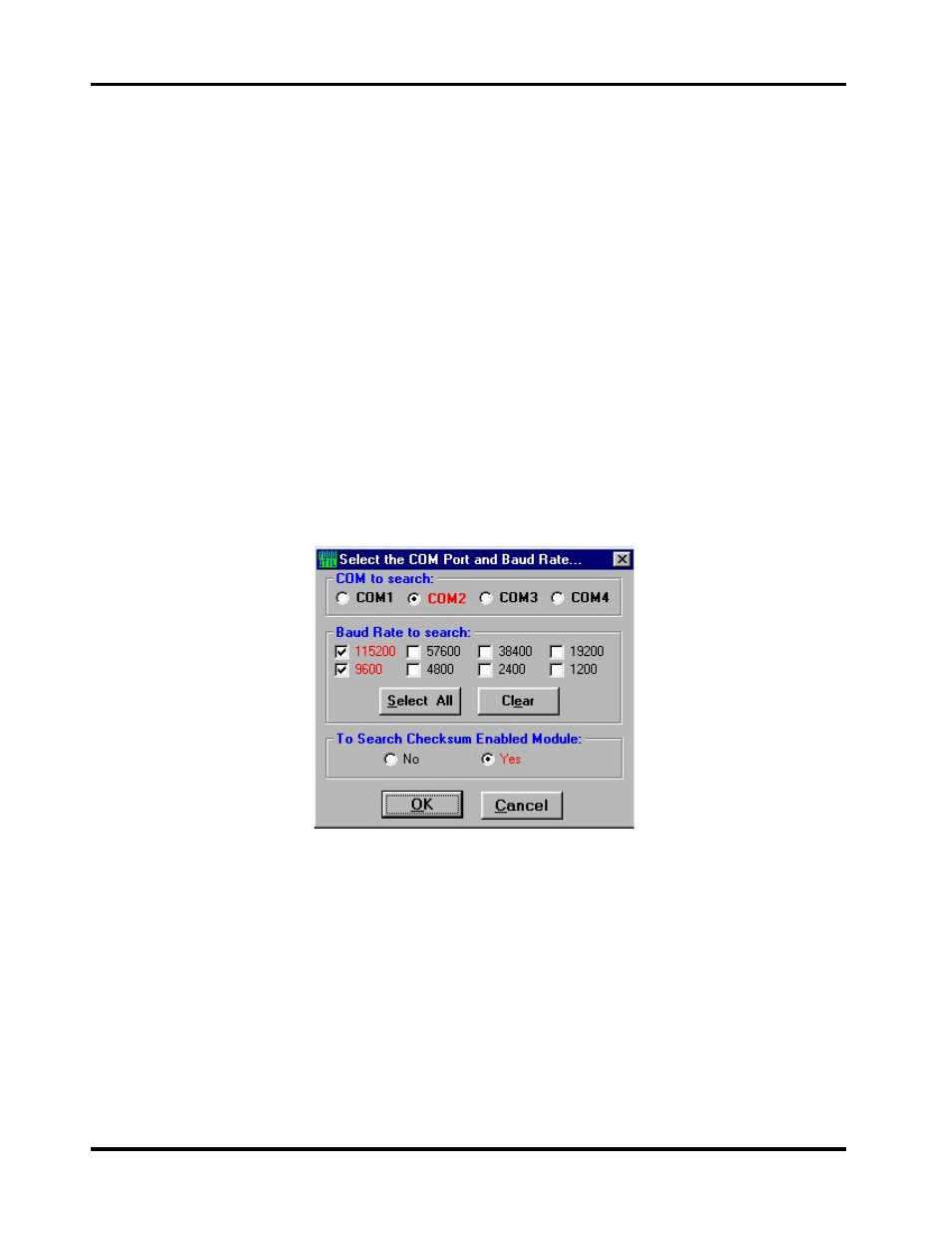

Figure 2-5-3. Assigning the COM port, baud rate and checksum status for
the search process.
