Getting Started

for I-7000 Series Modules

Date: Jan-08, 2002 Version 1.02 page: 46

5.5.1

Descriptions of Watchdog Demo

Platform

: Windows 95/98/NT

Software

: NAP7000P v3.30 (or above)

Demo Program : NAP7000P\Demo\Delphi\Watchdog\Project1.dpr

NAP7000P\Demo\BCB\Watchdog\Project1.bpr
NAP7000P\Demo\VB\Watchdog\Project1.vbp

Modules

: 7520 x 1 (RS-232 / RS-485)

70xx x 1 (recommend for use with an output module)

Module Configuration :

Baud rate :

9600

Checksum :

disable

Address :

0x01

This program demonstrates the following features:

1. Host Watchdog.
2. Broken communication line detection.
3. Module Watchdog.

Please run the demo program, and follow those steps to test the dual

watchdog. The main window is shown as Figure 5-5-1.

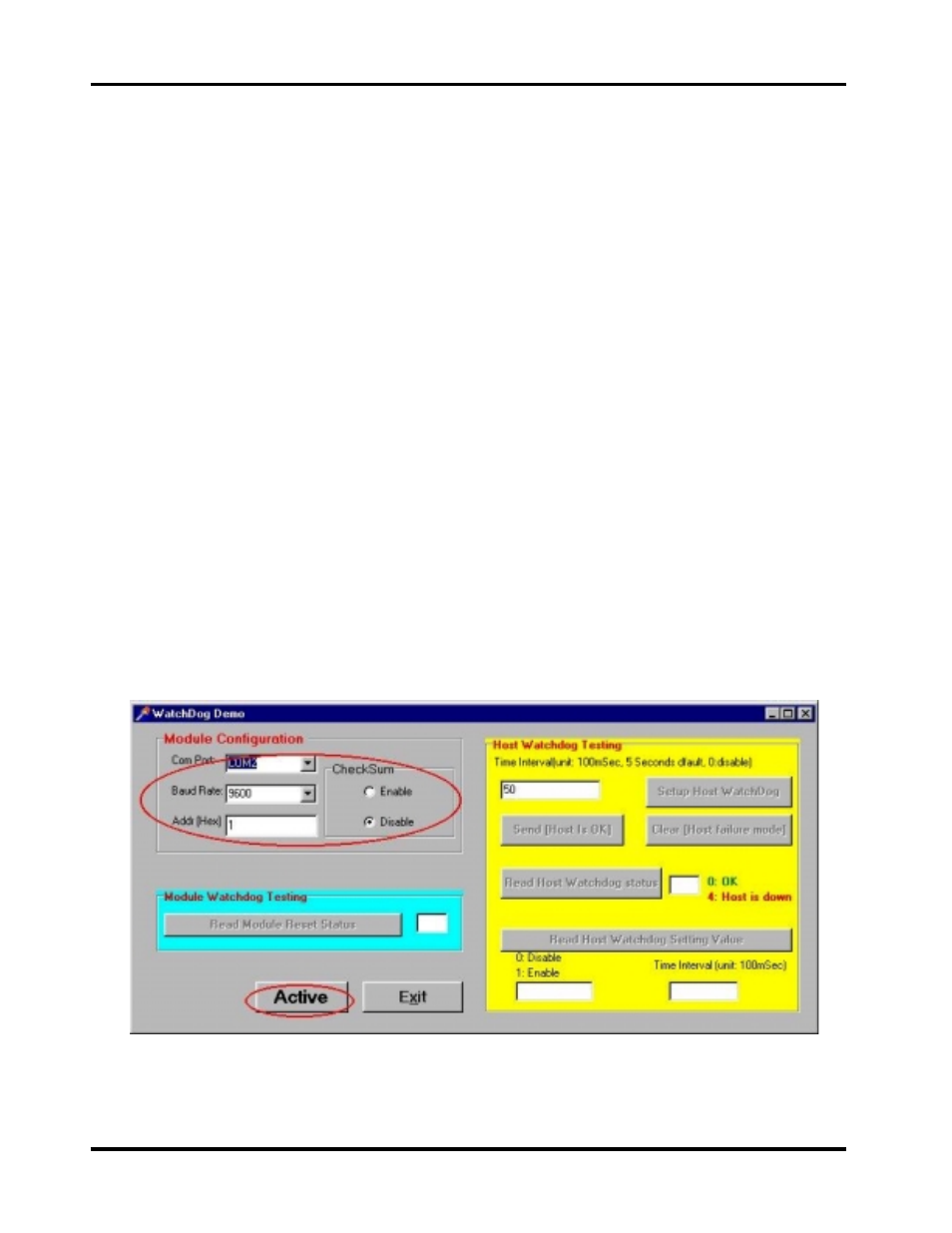

Figure 5-5-1. Choose your configuration

and click the “

Active

” button to start this demo program.
