4. DESCRIPTION OF THE WEB INTERFACE
Maximum number of entries in the table of routers with unfulfilled criterion is 30.
29
4.5.2 Packet Loss
At the beginning of the Packet Loss page is displayed average value of packet loss for
the selected period. The following table lists the average values in stretches of time that are
tailored to the chosen period.

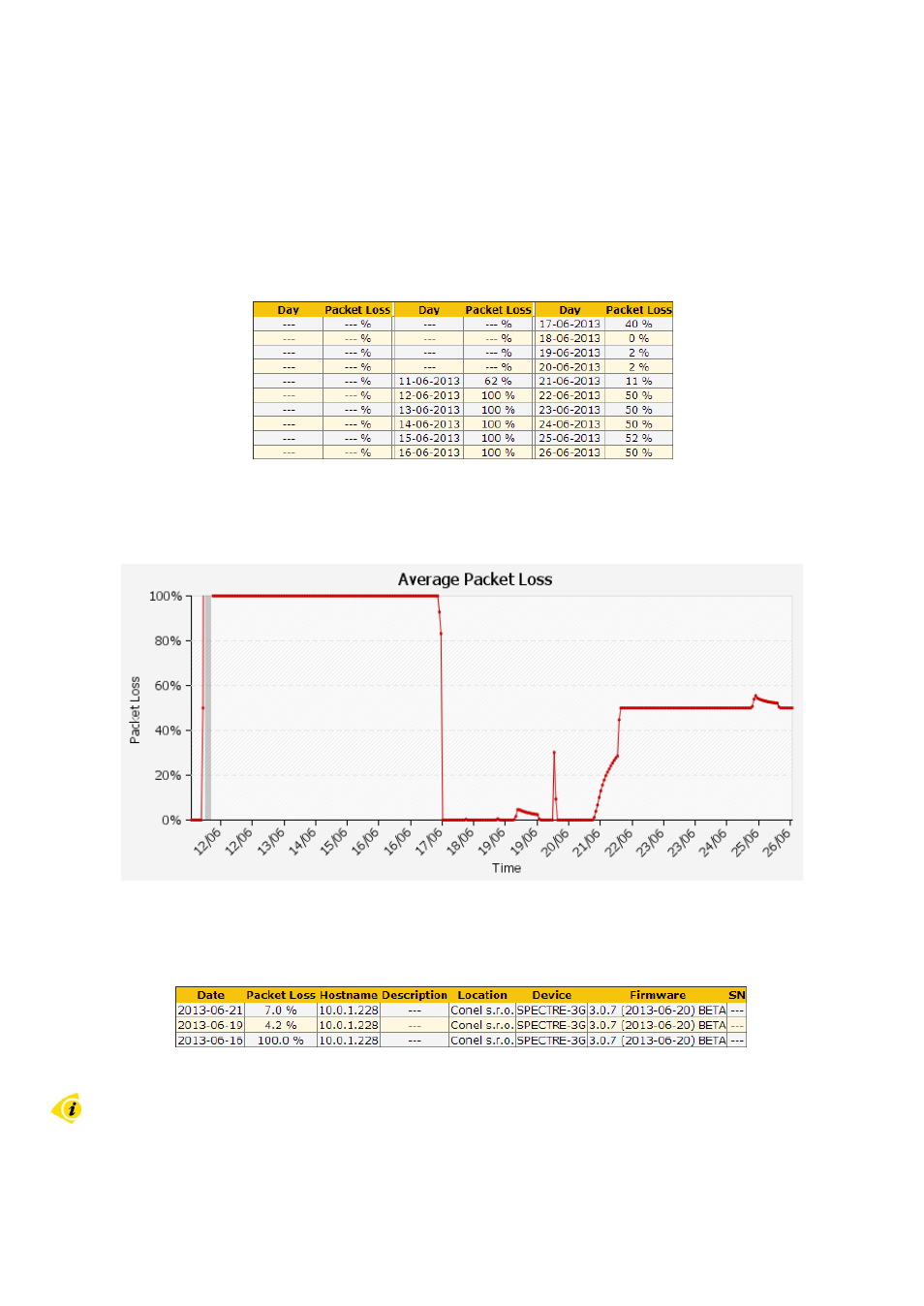

Figure 38: Packet Loss
Then there is an Average Packet Loss graph showing packet loss in stretches of time that
are tailored to the chosen period.
Figure 39: Packet Loss graph
At the bottom part of this page is displayed a table with IP addresses of routers with the
packet loss higher than specified value in selected time period.
Figure 40: Packet Loss – unfulfilled criterion
