2.2 Pin Assignment of CAN Port

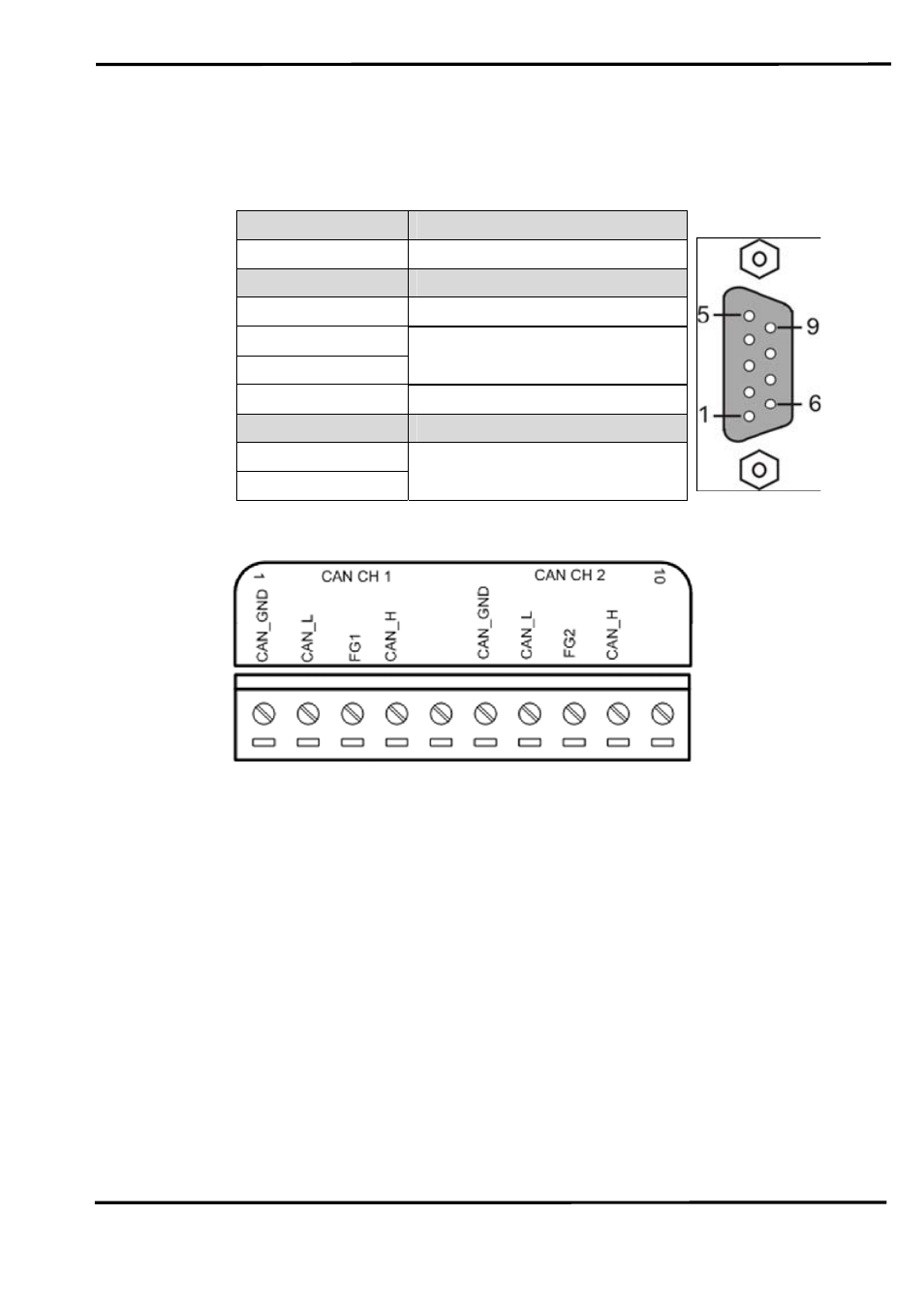

Table 1: CAN DB9 Male Connector on I-7565-H1
Terminal 2-wire CAN
1 Not Connect
2
CAN Low
3 CAN Ground
4
5
Not Connect
6 CAN Ground
7
CAN High
8
9
Not Connect
Figure 2-3: Pin Assignment on I-7565-H2
2.3 Hardware Connection
The pin assignment of the CAN port on the I-7565-H1 (DB9 male)
defined in both the CANopen DS102 profile and in appendix C of the
DeviceNet specifications. It is the standard pin assignment for CAN. The
hardware connection between device and I-7565-H1/H2 is like Figure 2-4.
I-7565-H1/H2 High Speed USB/CAN Converter User’s Manual (Ver 1.1, Nov/2009) ------------- 8
