4. Software Utility
I-7565-H1/H2 Utility is provided by ICP DAS to transmit / receive CAN
messages for CAN bus communication testing easily and quickly. In the
meanwhile, it can also display the time-stamp of each received CAN
message for data analyzing conveniently. I-7565-H1/H2 Utility can be
downloaded from the ICP DAS web site :
http://ftp.icpdas.com/pub/cd/fieldbus_cd/can/converter/i-7565-
h1h2/software/utility
. The following is the main functions provided by I-
7565-H1/H2 Utility :
4.1 INI File Function
Whenever users execute the I-7565-H1/H2 Utility, it will look for the
INT file : I-7565-H1H2_Utility.ini first to load the initial connection setting.
If the INI file doesn’t exist, then it will load the default setting. The below is

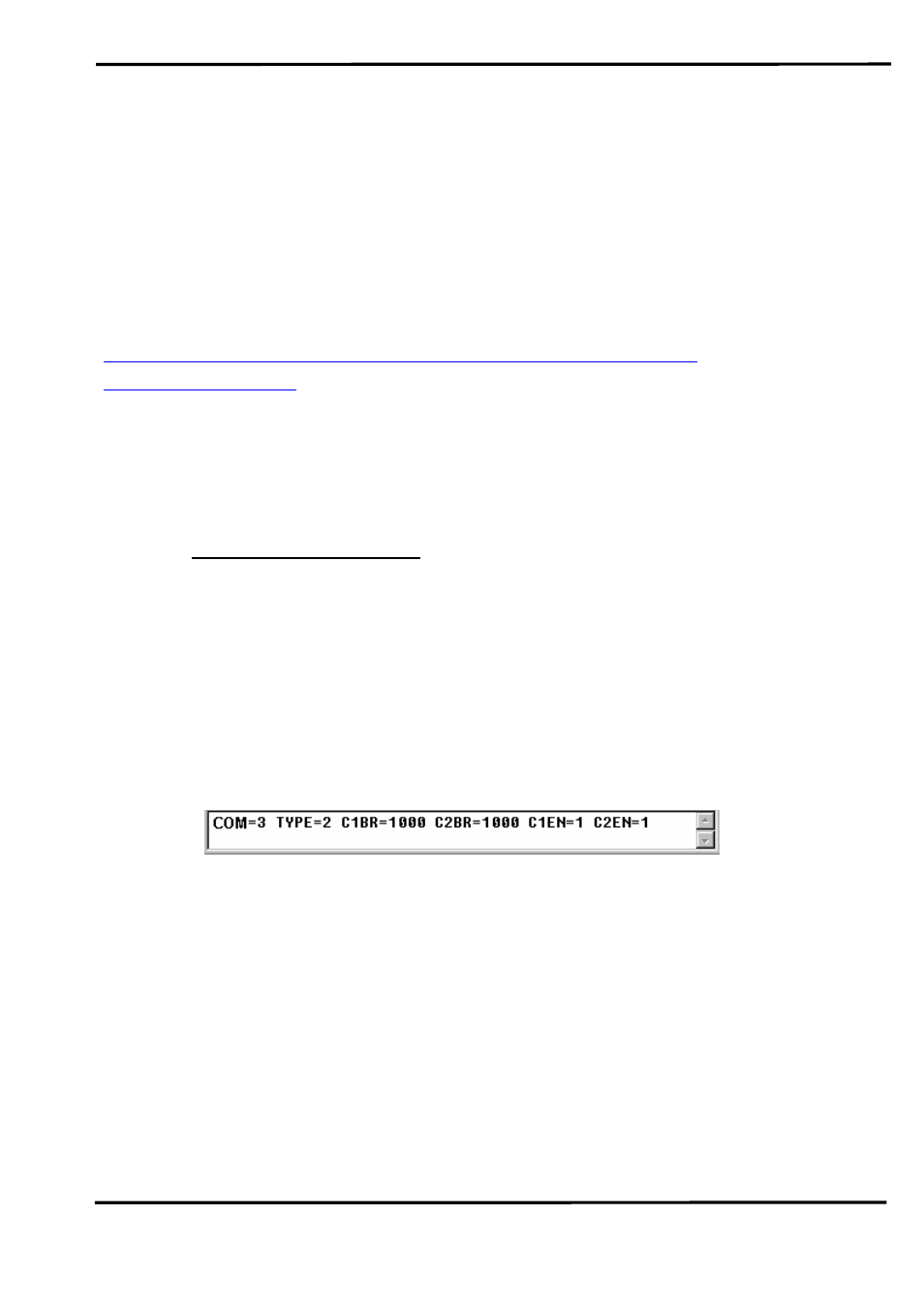

the format illustration of the INI file like Figure 4-1.
[1] COM : The Virtual COM Port Number.
[2] TYPE : 1: I-7565-H1; 2: I-7565-H2.
[3] C1BR : CAN1 Baud Rate
[4] C2BR : CAN2 Baud Rate
[5] C1EN : CAN1 Port Function. (1: Enable; 0: Disable)
[6] C2EN : CAN2 Port Function. (1: Enable; 0: Disable)
Figure 4-1: Connection Screen of I-7565-H1/H2 Utility
4.2 Connection Function
When users execute the I-7565-H1/H2 Utility, it will show connection
function screen first for connecting to I-7565-H1/H2 like Figure 4-2. The
following is the illustration for connection parameters.
[1] Com Port
:
The Virtual COM Port Number.
[2] Mod Name : The Module Name.
[3] CAN Port Enable : Enable CAN Port Function. (Checked: Enable)
[4] CAN Baud Rate : CAN bus Baud Rate Setting.
I-7565-H1/H2 High Speed USB/CAN Converter User’s Manual (Ver 1.1, Nov/2009) ------------- 22
