[2] For “Config / Info Option” block :

There are several option functions provided for I-7565-H1/H2. The
following will illustrate all these functions.

<1> “Get_ModInfo” option :

It is used to get the related module info including “Module
Name” and “Firmware Version” like Figure 4-9.

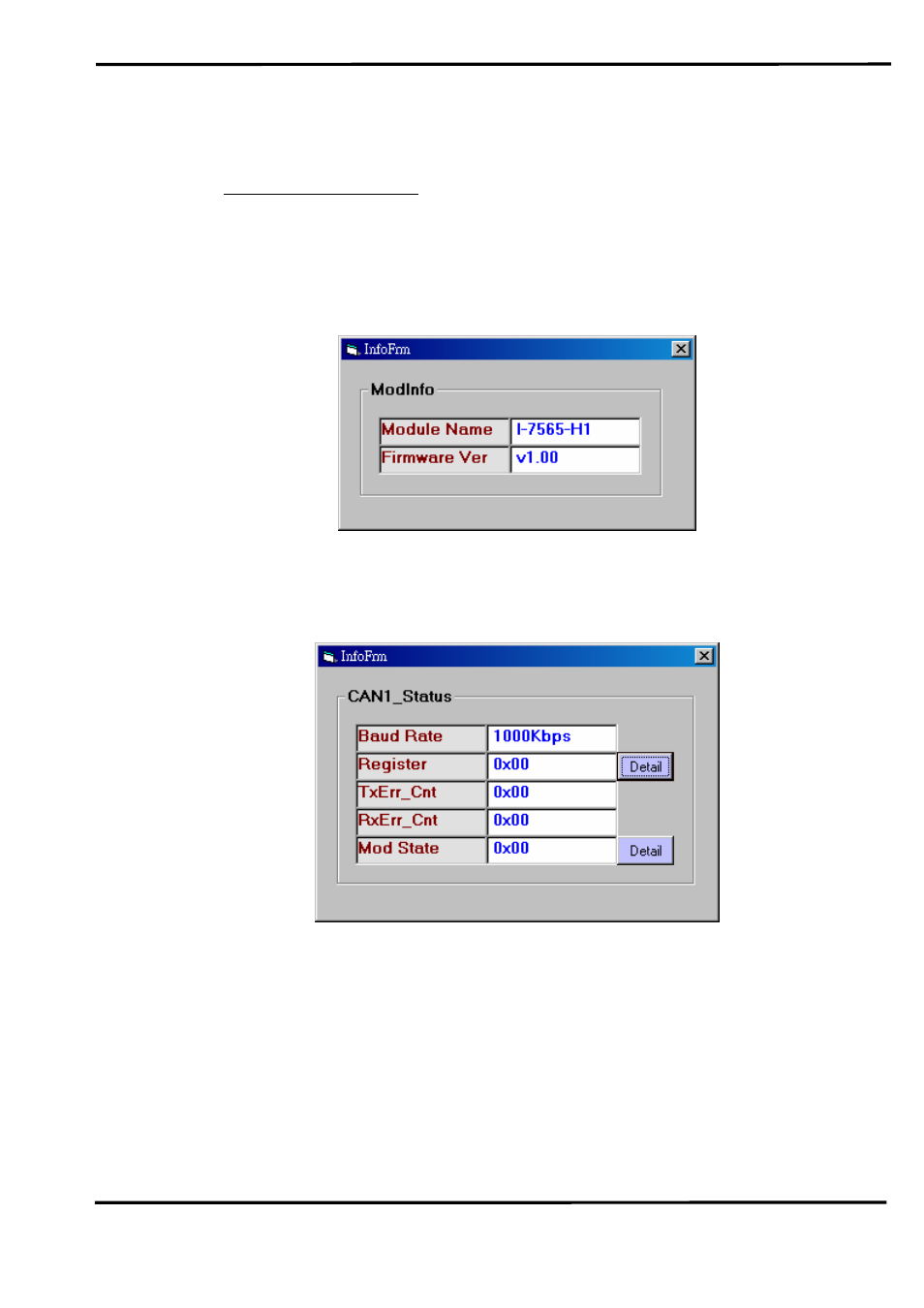

Figure 4-9: Module Info

<2> “Get_CANStatus” option :

It is used to get the assigned CAN port status like Figure 4-10.

Figure 4-10: CAN Status

In “Register” item, clicking the “Detail” button it will show the
more detailed CAN port register status like Figure 4-11. If the
corresponding bit is 1, it means that the corresponding state
happened.
