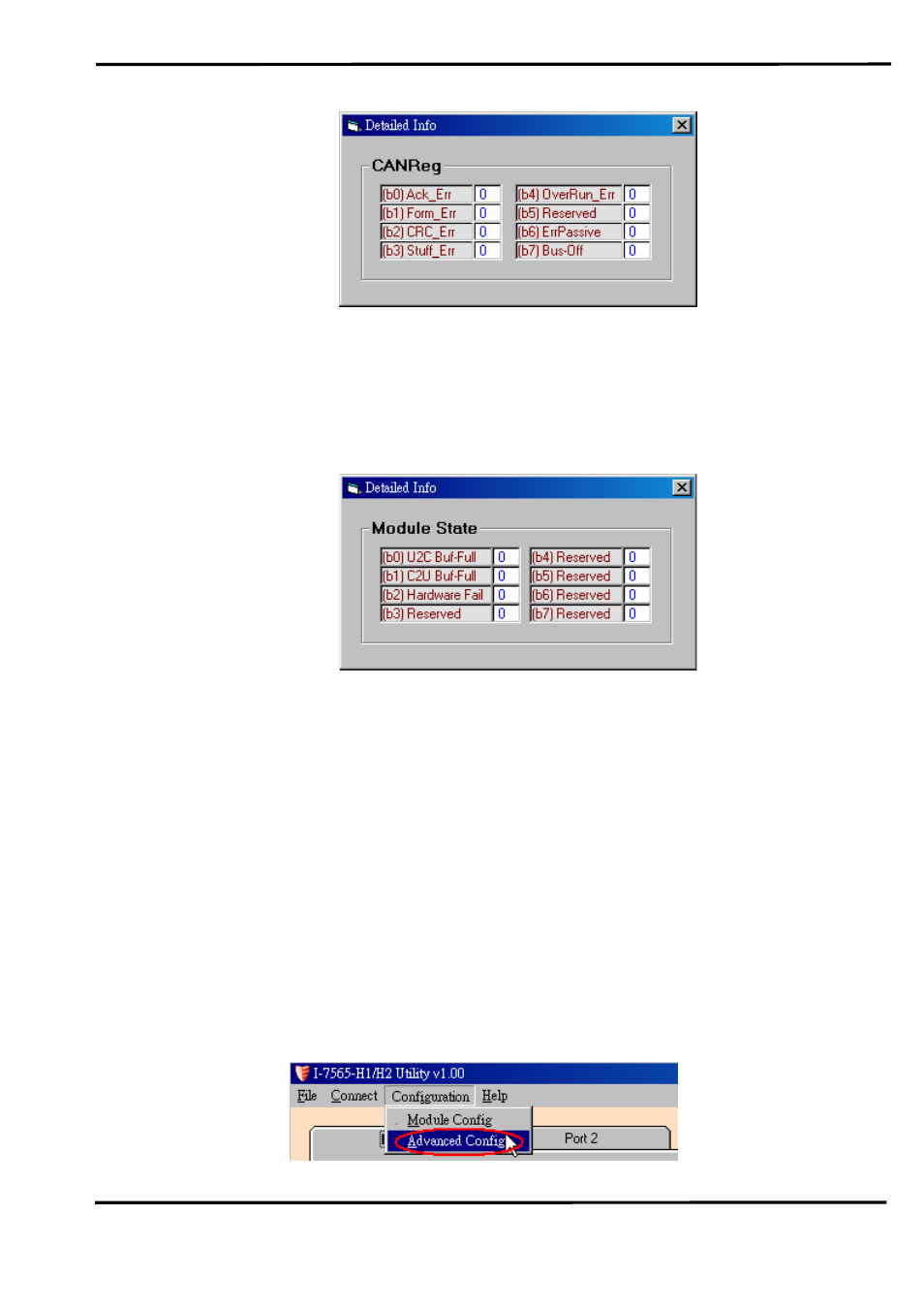

Figure 4-11: CAN Register Detailed Information
In “Mod State” item, clicking the “Detail” button it will show the
more detailed module status like Figure 4-12. If the
corresponding bit is 1, it means that the corresponding state
happened.
Figure 4-12: module state Detailed Information
<3> “Clear Buffer Overflow LED” option :
When CAN/USB buffer overflows, then the ERR LED will
flash one second permanently. The button is used to clear
the ERR LED flash state.
<4> “Reset Module” option :
It is used to reset I-7565-H1/H2 remotely.
4.4.2 Advanced Config Function
The following is the illustration for “Advanced Config” screen like
Figure 4-13 and Figure 4-14.
Figure 4-13: Configuration Function of I-7565-H1/H2 Utility
