Figure 6-4: Driver Installation of I-7565-H1/H2 (1)
(4) When the Figure 6-5 shows, click “Next” button and the other
steps are the same with those in chapter 3.

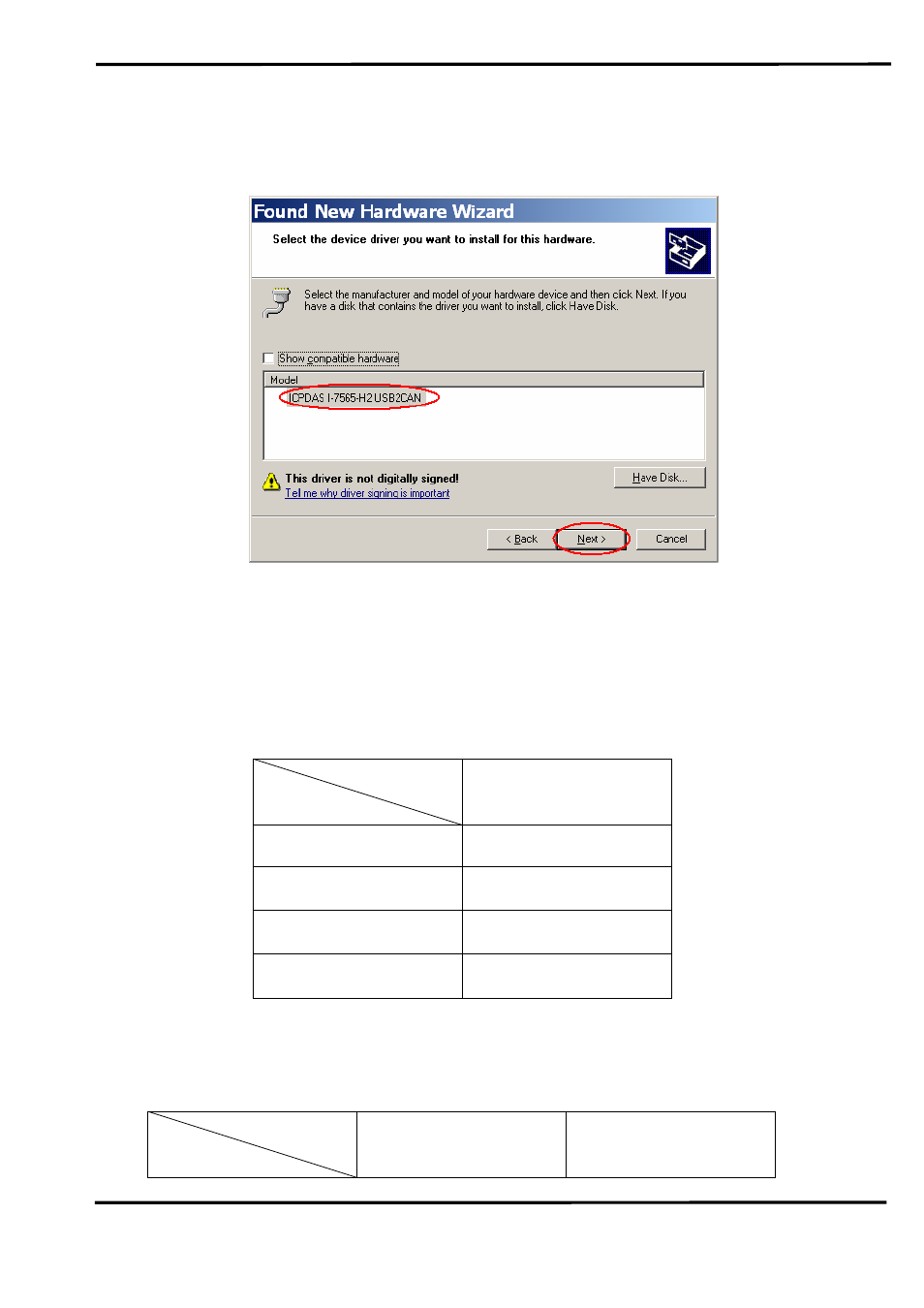

Figure 6-5: Driver Installation of I-7565-H1/H2 (2)
6.9 The Supported CAN Filter-ID Number Issue
The total capacity for CAN Filter-ID provided by I-7565-H1/H2 is
440 WORD. The following table describes the size of every different
type CAN Filter-ID.
Size
(Unit: WORD)
11-bit Single ID
1
11-bit Group ID
2
29-bit Single ID
2
29-bit Group ID
4
Table 6-1: Size of Every Different Type CAN Filter-ID
According to the Table 6-1, the following table describes the
supported CAN Filter-ID number of I-7565-H1/H2.
I-7565-H1
( CAN Port )
I-7565-H2
( Each CAN Port )
I-7565-H1/H2 High Speed USB/CAN Converter User’s Manual (Ver 1.1, Nov/2009) ------------- 68
