information is showed as Figure 4-20 and it can be divided for four blocks.

(1) Module Name => Indicate the connected module name and the

virtual com port which is in use.

(2) Port Status

=> Indicate the CAN port enabled or not.

(3) Baud Rate

=> Indicate the CAN port baud rate.

(4) Company

=> ICP DAS Co., LTD

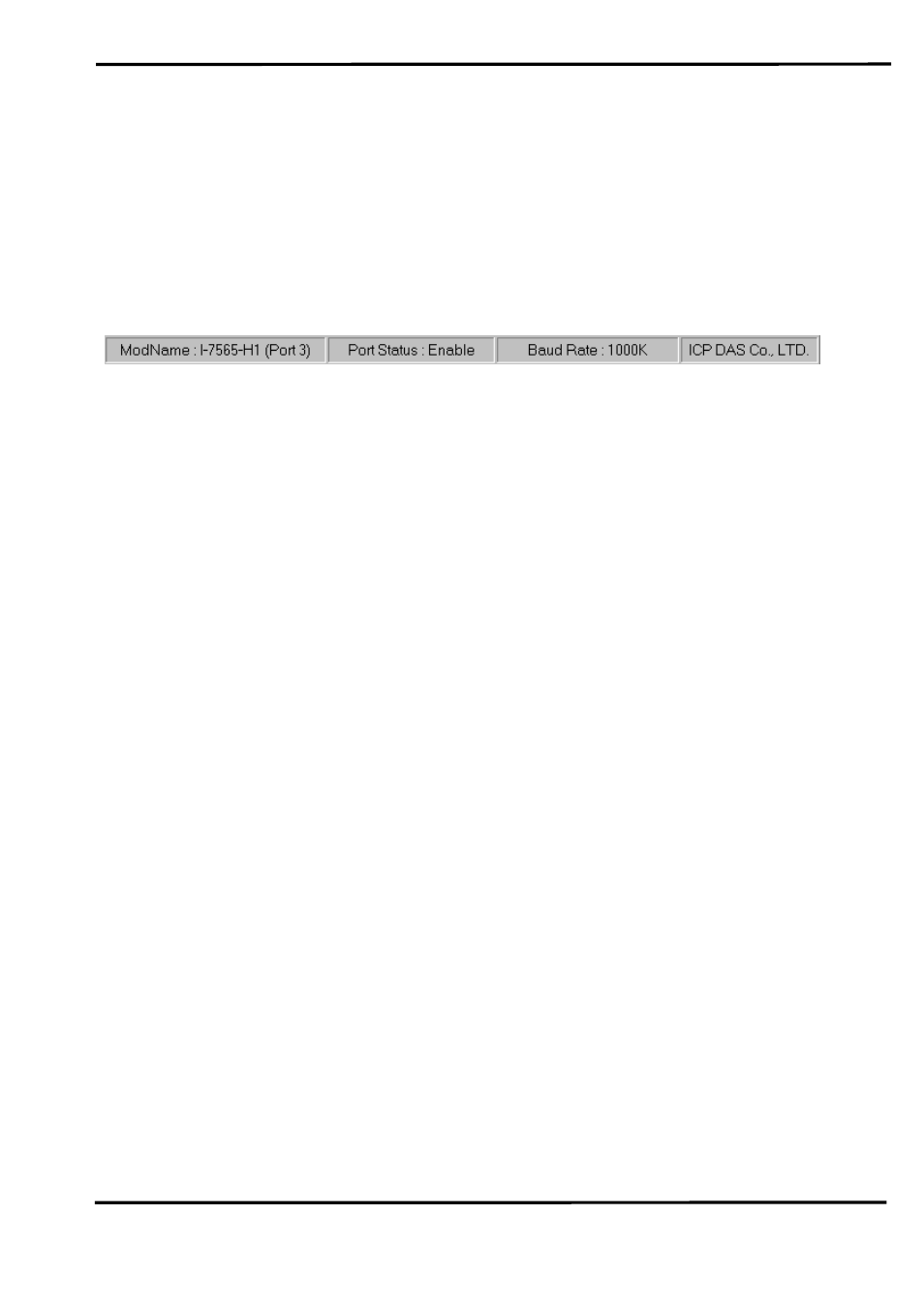

Figure 4-20: Status Bar of I-7565-H1/H2 Utility for disconnection

I-7565-H1/H2 High Speed USB/CAN Converter User’s Manual (Ver 1.1, Nov/2009) ------------- 34
