1. Introduction
I-7565-H1 and I-7565-H2 are the high speed intelligent USB to CAN
converters with one and two CAN channels separately. They provide
faster CAN bus communication performance than I-7565. Both I-7565-H1
and I-7565-H2 support CAN2.0A/2.0B protocol and different baud rates
from 5 Kbps to 1 Mbps. The important feature of I-7565-H1/H2 is to
support the user-defined baud rate function no matter what the baud rate
is. When connecting I-7565-H1/H2 to PC, PC will load the relevant device
driver automatically (hot plug & play). Therefore, users can make data
collection and processing of CAN bus network easier and quicker by
applying I-7565-H1/H2. The application fields can be CAN bus monitoring,
building automation, remote data acquisition, environment control and
monitoring, laboratory equipment & research, factory automation, etc.
The following is the application structure for these two USB/CAN
modules :
(1) I-7565-H1: High Speed intelligent USB to 1- port CAN bus Converter.
(2) I-7565-H2: High Speed intelligent USB to 2- port CAN bus Converter.

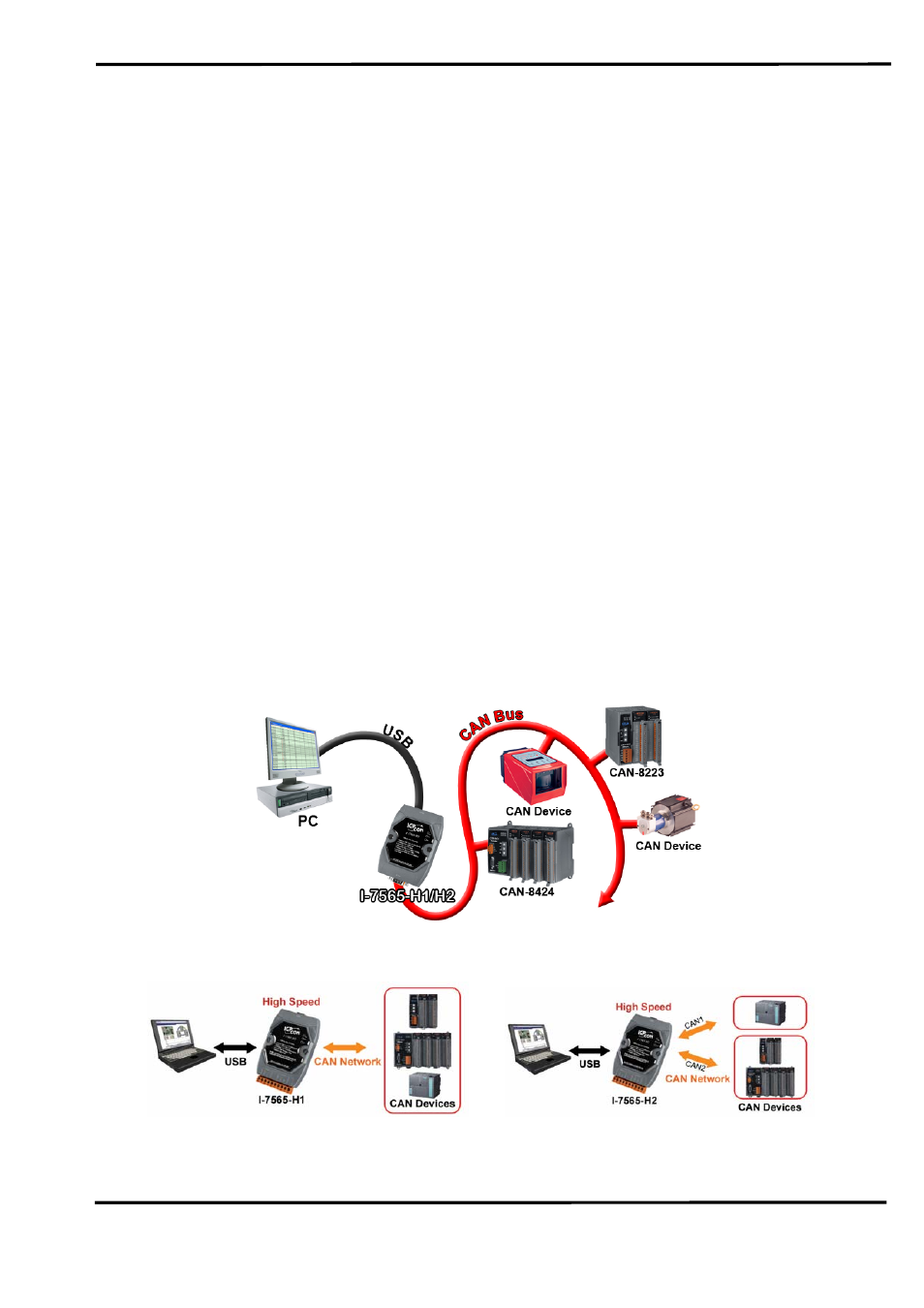

Figure 1-1: Application of I-7565-H1/H2
I-7565-H1 application I-7565-H2 application
