4.3 Communication Function

If the connection to I-7565-H1/H2 is successful, then the screen for

CAN bus communication function will show up like the Figure 4-5.

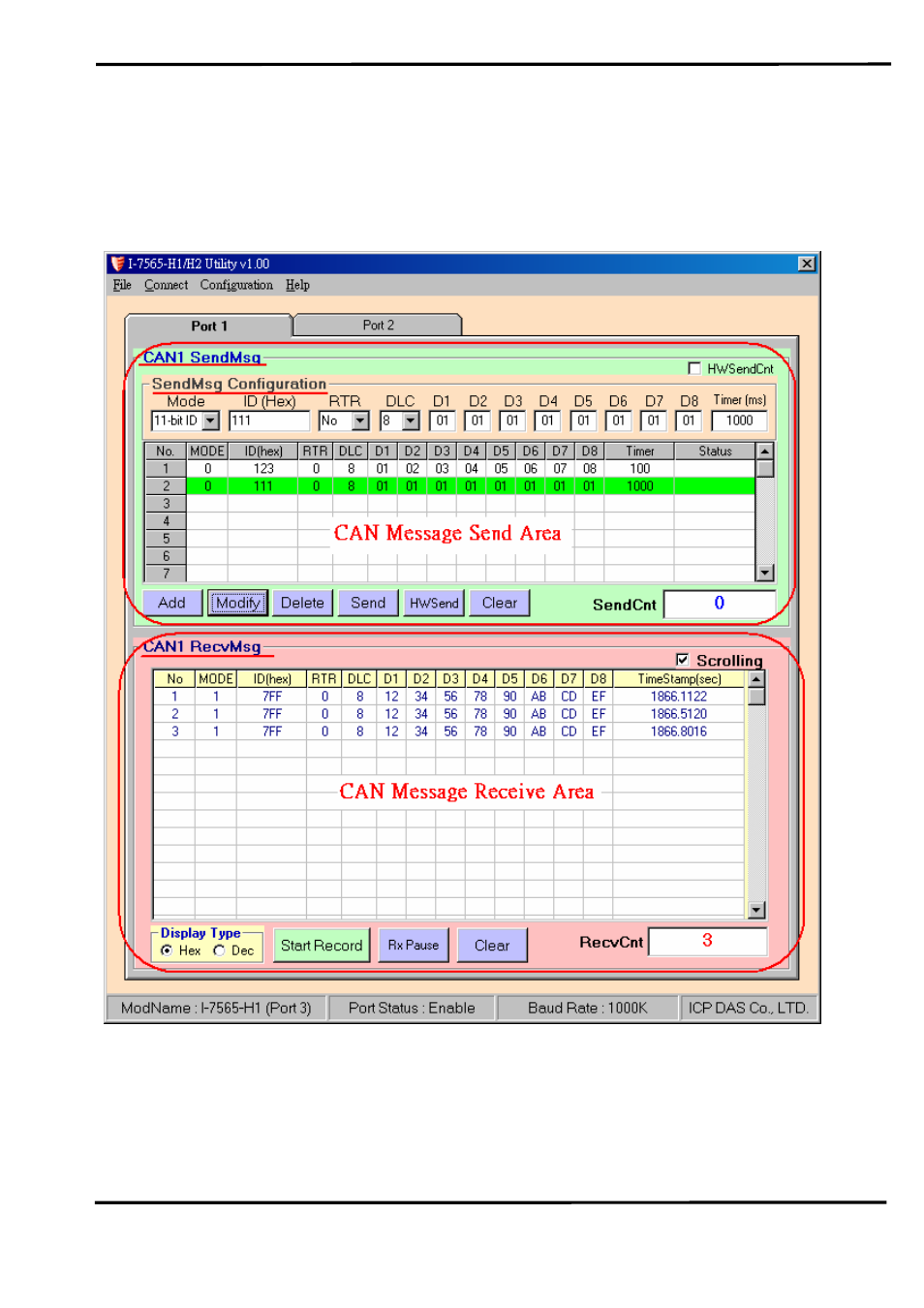

Figure 4-5: Communication Screen of I-7565-H1/H2 Utility


The following is the illustration for the communication screen and it

can be divided to two blocks in each CAN port function. One is “SendMsg”
block and the other is “RecvMsg” block. Besides, “Port 1” / “Port 2” tab is
used to switch CAN1 / CAN2 communication screen.

I-7565-H1/H2 High Speed USB/CAN Converter User’s Manual (Ver 1.1, Nov/2009) ------------- 24
