Page 6: Serial connections rs-232
6
Manual Documentation Number: ZP9D-115RM-LR-0812
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

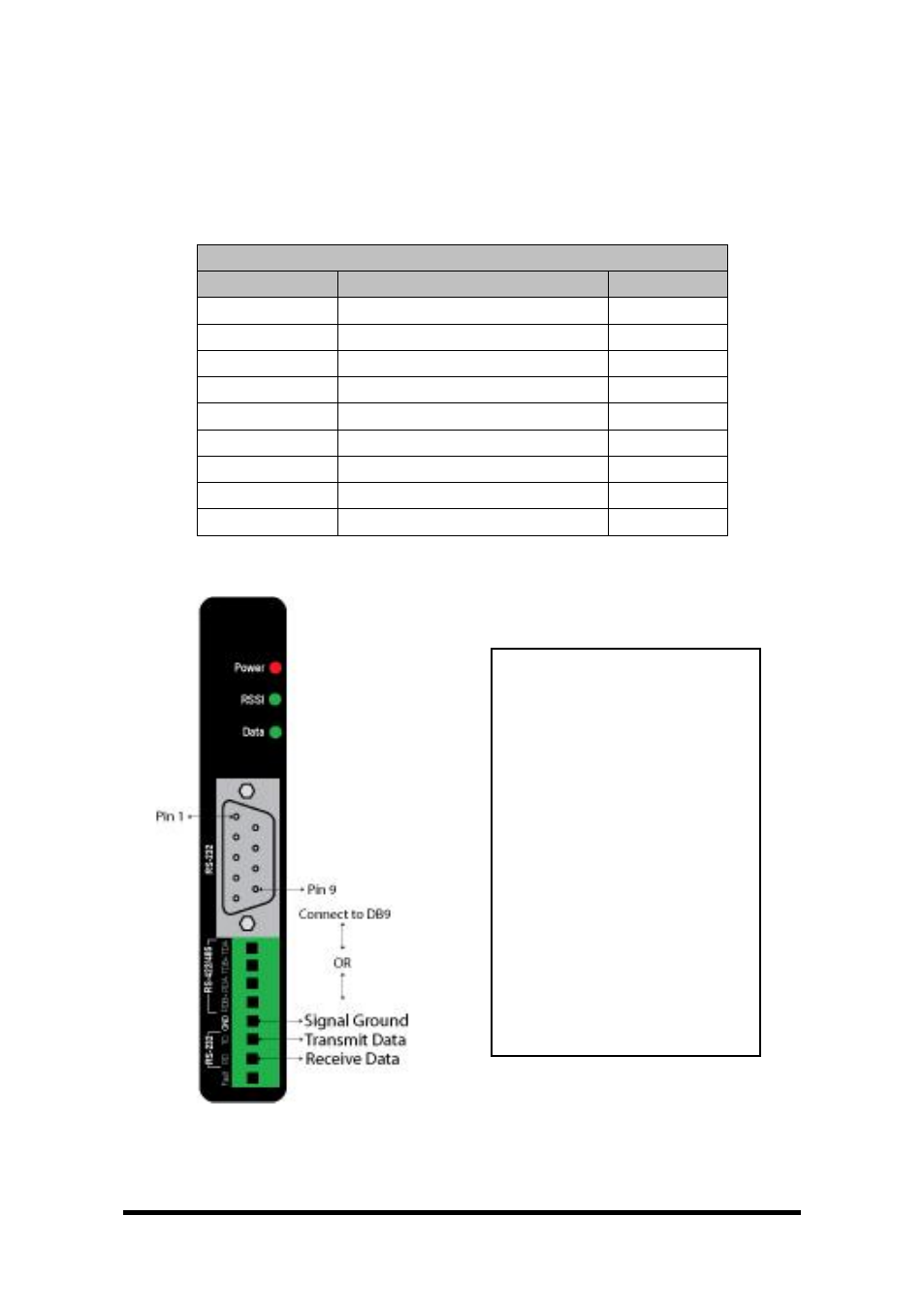

Serial Connections
RS-232
RS-232 Always present on DB9
* - Pins 1 & 6 are not used. They are tied together
Wiring Terminal Identification
DB9F Pin
Signal Name
Direction
1
Data Carrier Detect*
---
2
Receive Data
Out
3
Transmit Data
In
4
Data Terminal Ready
In
5
Signal Ground
---
6
Data Set Ready*
---
7
Request To Send
In
8
Clear To Send
Out
9
Not used
---
Note: The DTR input is
used to put the radio
into sleep mode. The
radio sleep option must
be enabled first using
the configuration
software. Once
enabled, lowering the
DTR signal will put the
radio in sleep mode
and raising the DTR
signal will put the radio
in idle mode, ready to
receive or transmit
data.
