To verify: Add all bytes (include checksum, but not the delimiter and length). If the
checksum is correct, the sum will equal 0xFF.
API Types
Frame data of the UART data frame forms an API-specific structure as follows:

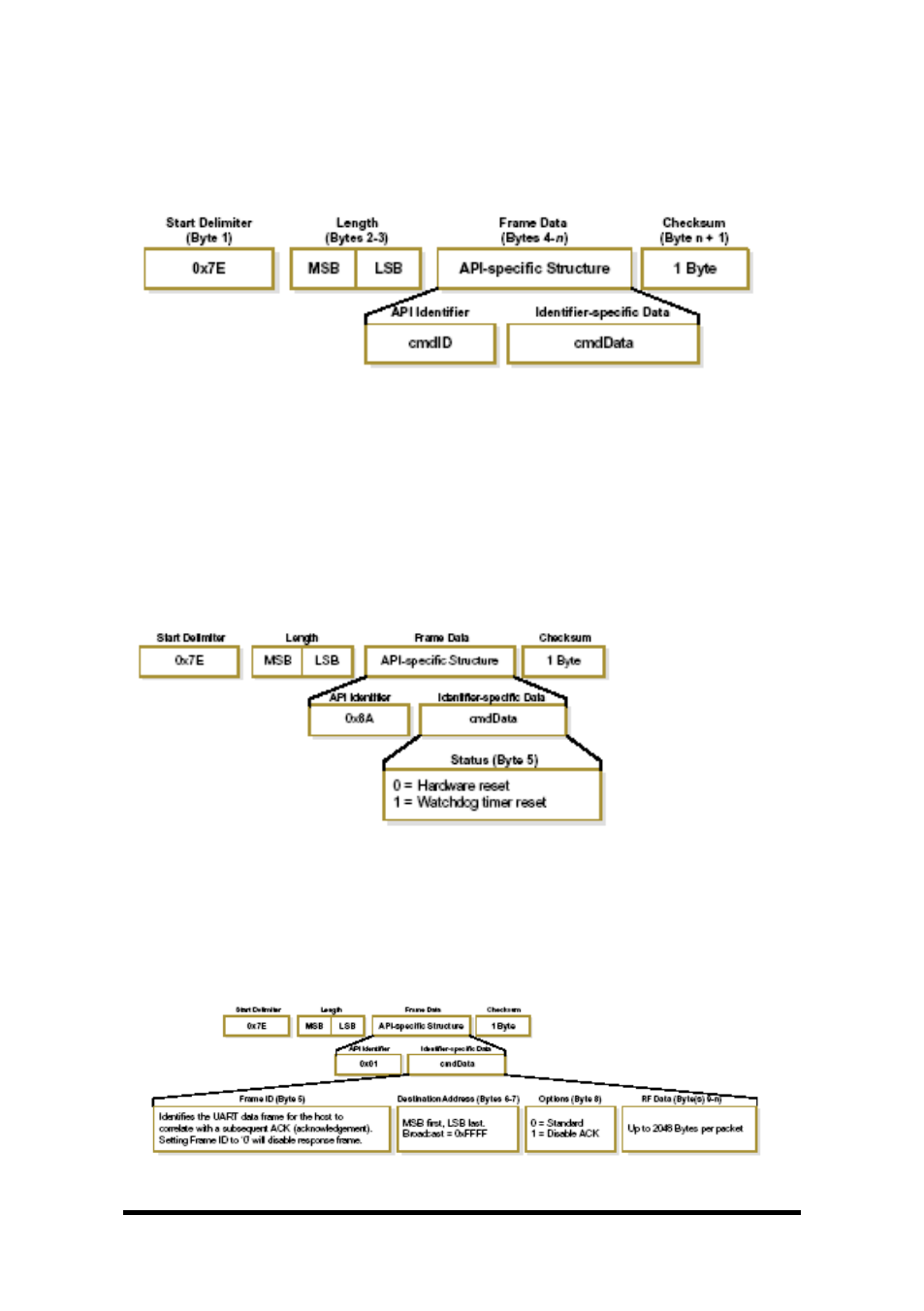

UART Data Frame & API specific Structure:
The cmdID frame (API-identifier) indicates which API messages will be contained in
the cmdData frame (Identifier-specific data). Refer to the sections that follow for more
information regarding the supported API types. Note that multi-byte values are sent
big endian.
RF Module Status
API Identifier: 0x8A
RF module status messages are sent from the module in response to specific
conditions.
RF Module Status Frames
TX (Transmit) Request: 16-bit address
API Identifier Value: 0x01
A TX Request message will cause the module to send RF Data as an RF Packet.
TX Packet (16 bit address) Frames
