DS2181A
041995 18/32

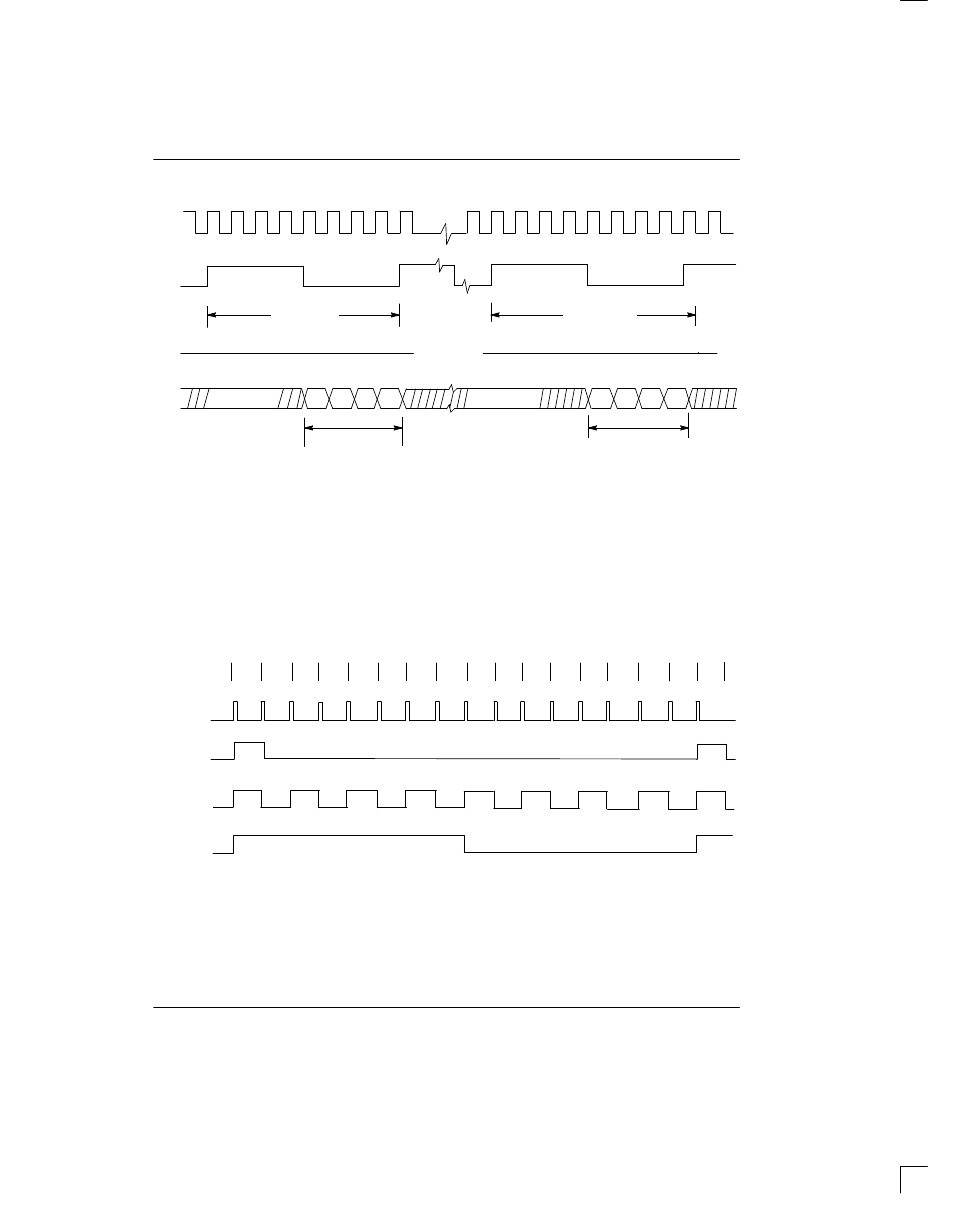

RECEIVE MULTIFRAME TIMING Figure 15
DATA VALID
FOR TIMESLOT 1
RCLK
RCHCLK
RSD A B D C
FRAME 2
TIMESLOT 1 TIMESLOT 18
DATA VALID
FOR TIMESLOT 18
NOT VALID NOT VALID A B C D
RECEIVE TIMING
The receive side output timing set is identical to that
found on the transmit side. The user can tie receive out-
puts directly to the transmit inputs for drop and insert
applications. The received data of RPOS, RNEG ap-
pear at RSER after six RCLK delays, without any
change except for the HDB3-to-NRZ conversion when
HDB3 is enabled.
NOTE:
1. The CAS multiframe can start with an align or non-align frame. The CRC4 multiframe always starts with an
align frame.
RSD TIMING Figure 16
0
RFSYNC
FRAME #
RAF
RCSYNC
RMSYNC 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 15
