DS2181A
041995 12/32

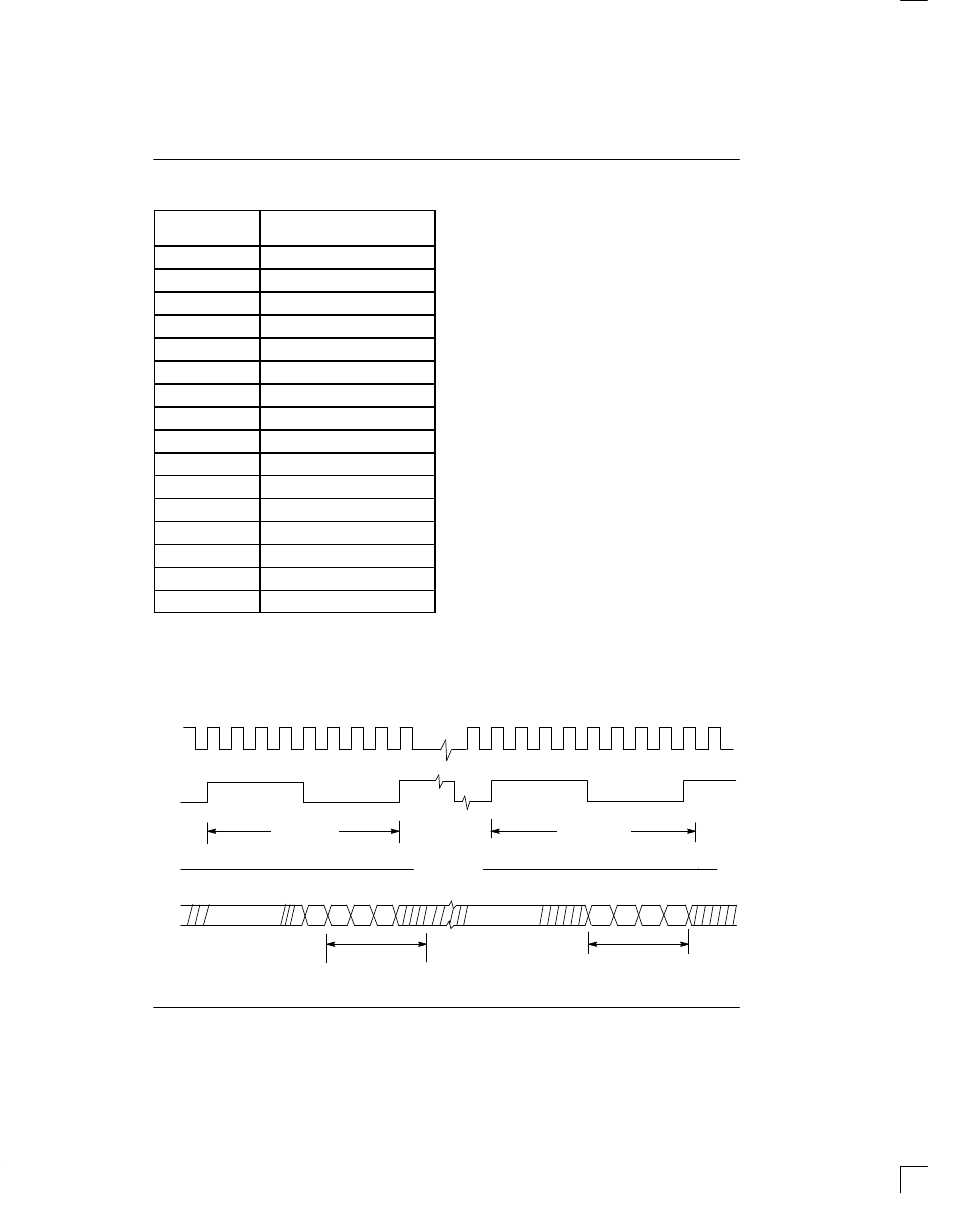

TSD INPUT TIMING (TCR.6 = 1; TCR.5 = 0) Table 6
FRAME # TIMESLOT SIGNALLING
DATA SAMPLED AT TSD
0 17
1 1,18
2 2,19
3 3,20
4 4,21
5 5,22
6 6,23
7 7,24
8 8,25
9 9,26
10 0,27
11 11,28
12 12,29
13 13,30
14 14,31
15 15
NOTE:
1. A, B, C and D data is sampled on falling edges of TCLK during bit times 5, 6, 7 and 8 of timeslots indicated.
TSD INPUT TIMING Figure 7
SAMPLED
FOR TIMESLOT 1
TCLK
TCHCLK
TSD DON’T CARE DON’T CARE A B D C A B D C
FRAME 1
TIMESLOT 1 TIMESLOT 18
SAMPLED
FOR TIMESLOT 18
