48 9220-UM V1.1
Admin

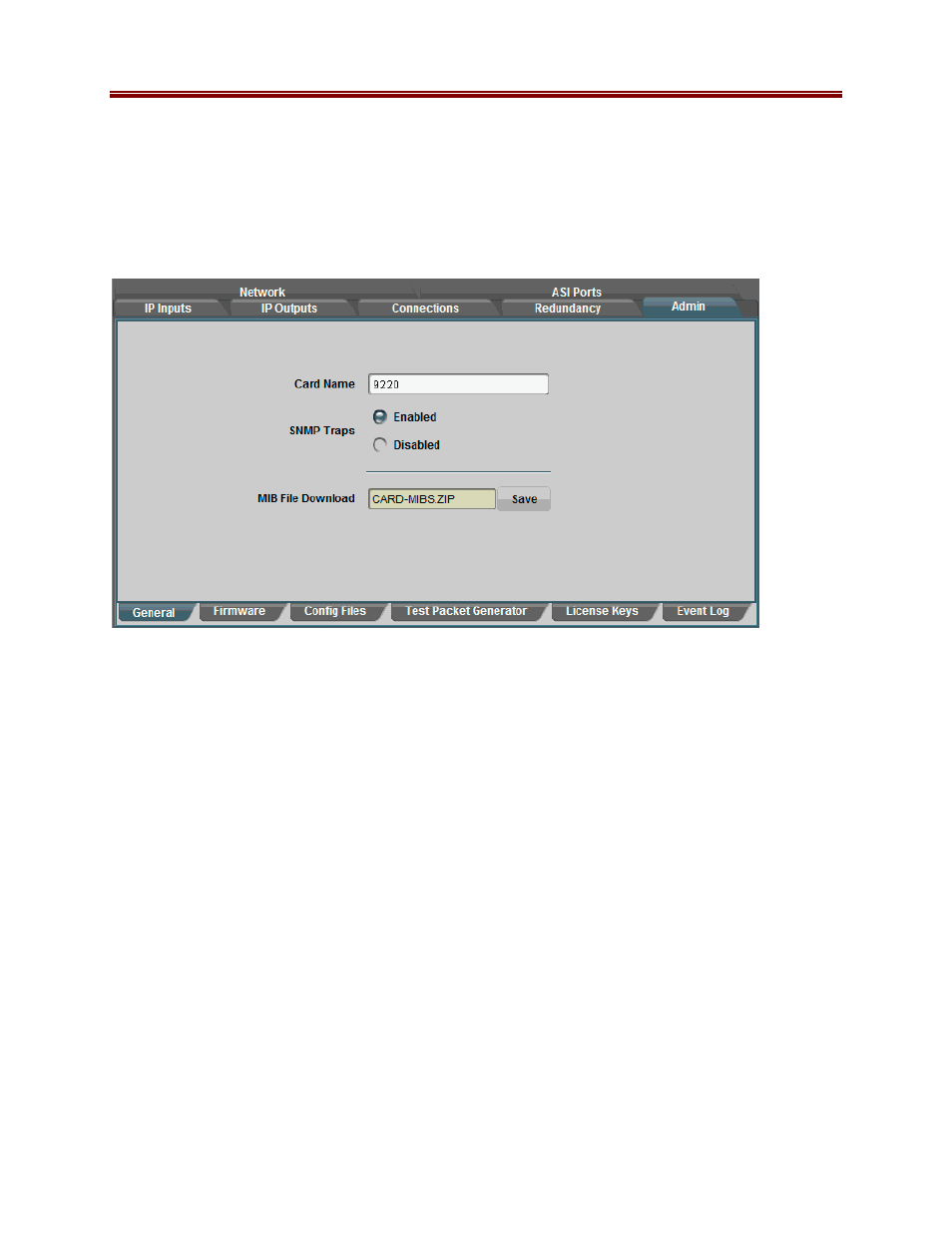

The Admin tab contains a number of general administrative functions, each on its own tab. The
general layout is shown below:
The Admin tabs are:
•
General: Manages a number of general card parameters; provides an SNMP MIB
download.
•
Firmware: Manages firmware images.
•
Config Files: The 9220 has the ability to store multiple configurations, and it has a
number of pre-set configurations as well. These are managed in this tab.
•
Test Packet Generator: Manages the Test Packet Generator.
•
License Keys: Contains the current licensing state of the 9220, and allows for new
license keys to be entered.
•
Event Log: The 9220 contains a non-volatile event log. It can be inspected and
downloaded from this tab.
The Admin Statistics tabs are simplified read-only versions of the corresponding Admin
Configuration tabs. They will not be explicitly described here.
Admin General Tab
The Admin General Tab includes the following parameters:
