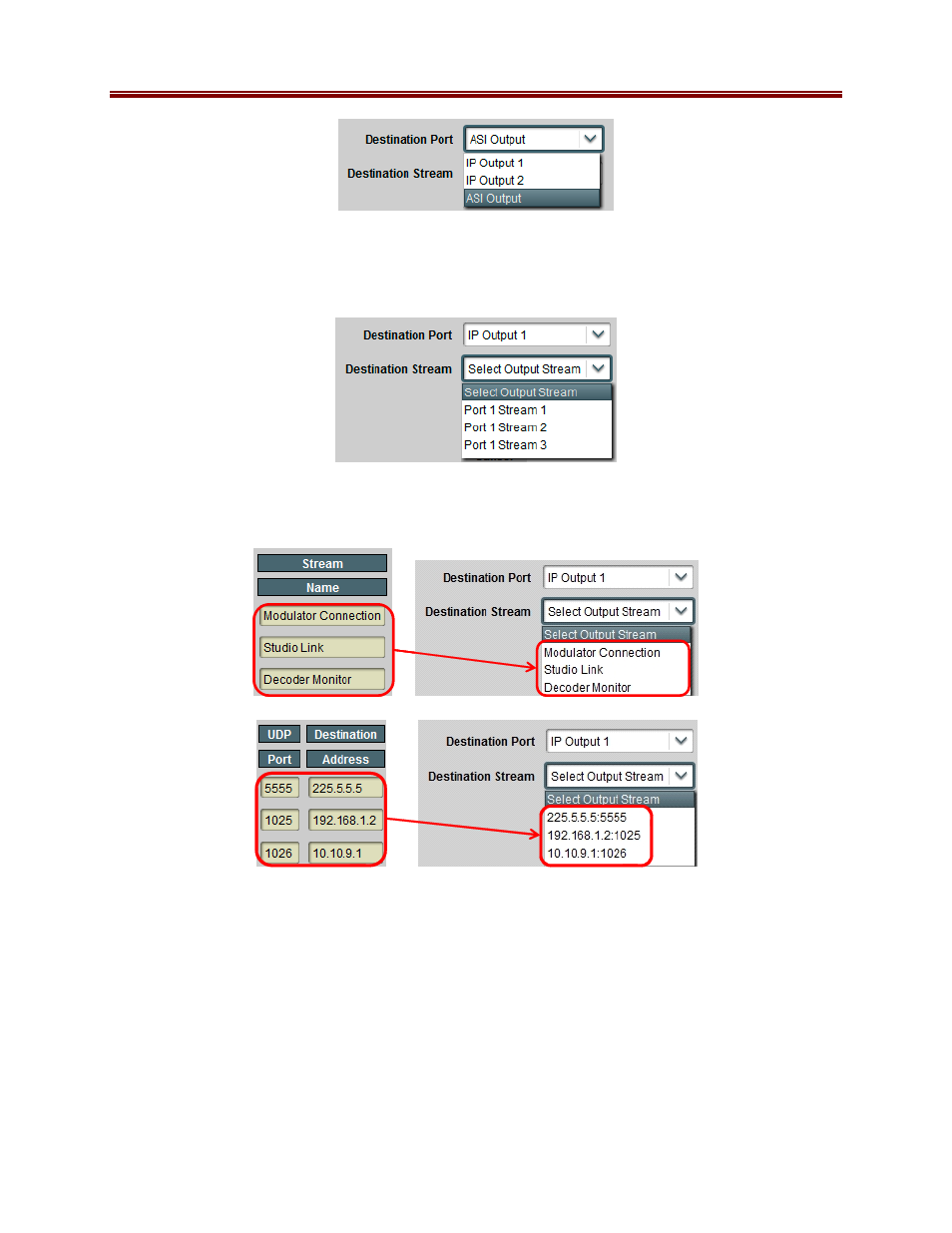

Once the port is selected, the Destination Stream drop down menu is populated with the
available output streams on that port. Only streams that are unconnected and enabled are
presented:
In the same fashion as with the Source Selection, the names can be customized, and the selection
can be presented as addresses rather than names. Both situations are illustrated below.
Establishing the Connection
Once the connection is configured, click on Apply to establish it. If no errors are detected, the
connection is established and added to the Current Connections Table. If the connection fails,
an error message will appear next to the Apply button. The following errors are detected:
•
Error: Missing primary source selection : you have not selected a primary source for the
connection.
•
Error: Missing destination selection : you have not selected a destination for the
connection.
